HUV 4420 - Husqvarna 4x4 Utility Vehicle (2006-11) Carburetor Assembly, Honda Gasoline Vehicles Parts Diagram

4x4 Utility Vehicle

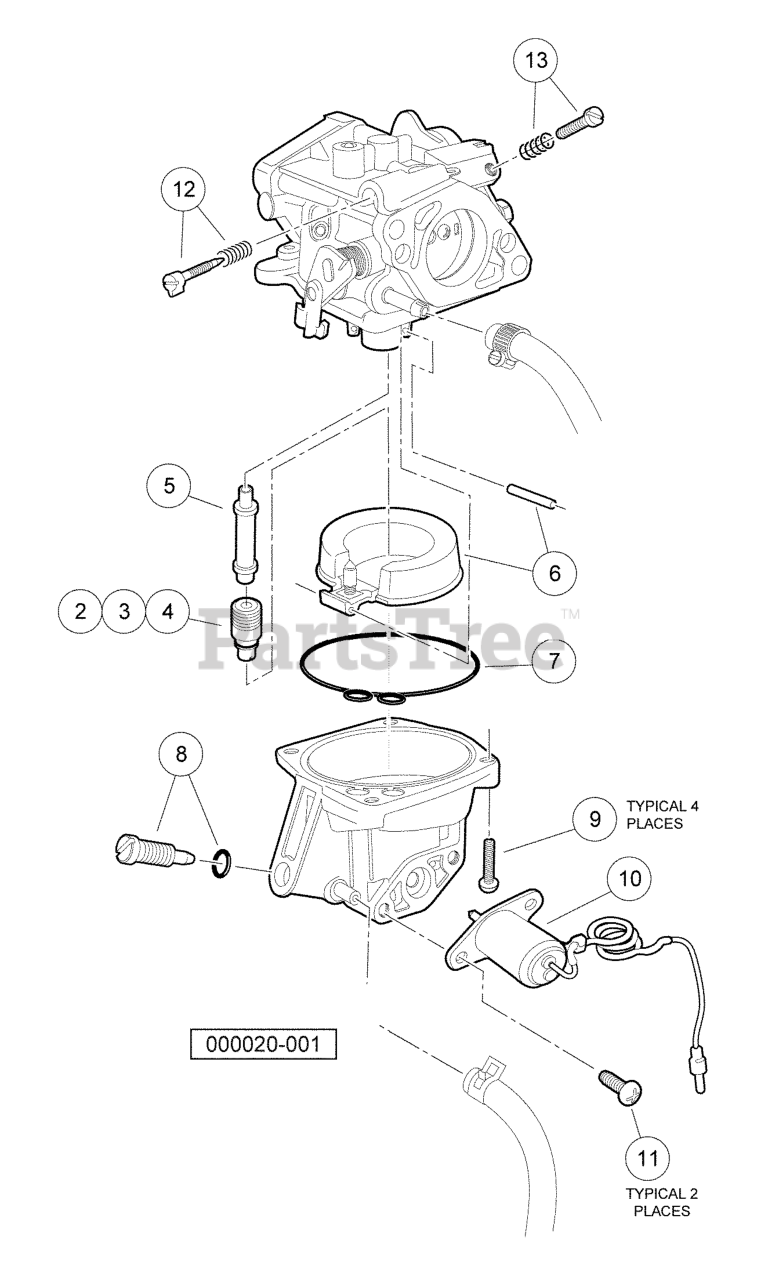

Carburetor Assembly, Honda Gasoline Vehicles Parts Diagram

  • Title

1

Husqvarna 603001461

CARBURETOR ASSY, BF22G A

Note: (includes items 2 through 13)

$328.99

$

In Stock, only 1 left!

0

2

Husqvarna 603001319

Jet, GX620, #102 (8000 ft. and higher (2438 m and higher))

$

$

Not available

3

Husqvarna 603001320

Jet, GX620, #105 (5000-8000 ft. (1524-2438 m))

$

$

Not available

4

Husqvarna 603001321

Jet, GX620, #108 (0-5000 ft. (0-1524 m))

$

$

Not available

5

Husqvarna 603001463

NOZZLE, MAIN

$

$

Not available

6

Husqvarna 603001464

FLOAT SET

$

$

Not available

7

Husqvarna 603001465

GASKET SET

$

$

Not available

8

Husqvarna 603001466

SCREW SET, DRAIN

$

$

Not available

9

Husqvarna 603001467

SCREW-WASHER, M4 X 14

$

$

Not available

10

Husqvarna 603001468

VALVE ASSY., SOLENOID

$

$

Not available

11

Husqvarna 603001469

SCREW-WASHER, M5 X 12

$

$

Not available

12

Husqvarna 603001688

SCREW-SET-LEFT

$

$

Not available

13

Husqvarna 603001689

SCREW SET, RIGHT

$

$

Not available
