HUV 4420 - Husqvarna 4x4 Utility Vehicle (2006-11) Coolant Pipes and Hoses Parts Diagram

4x4 Utility Vehicle

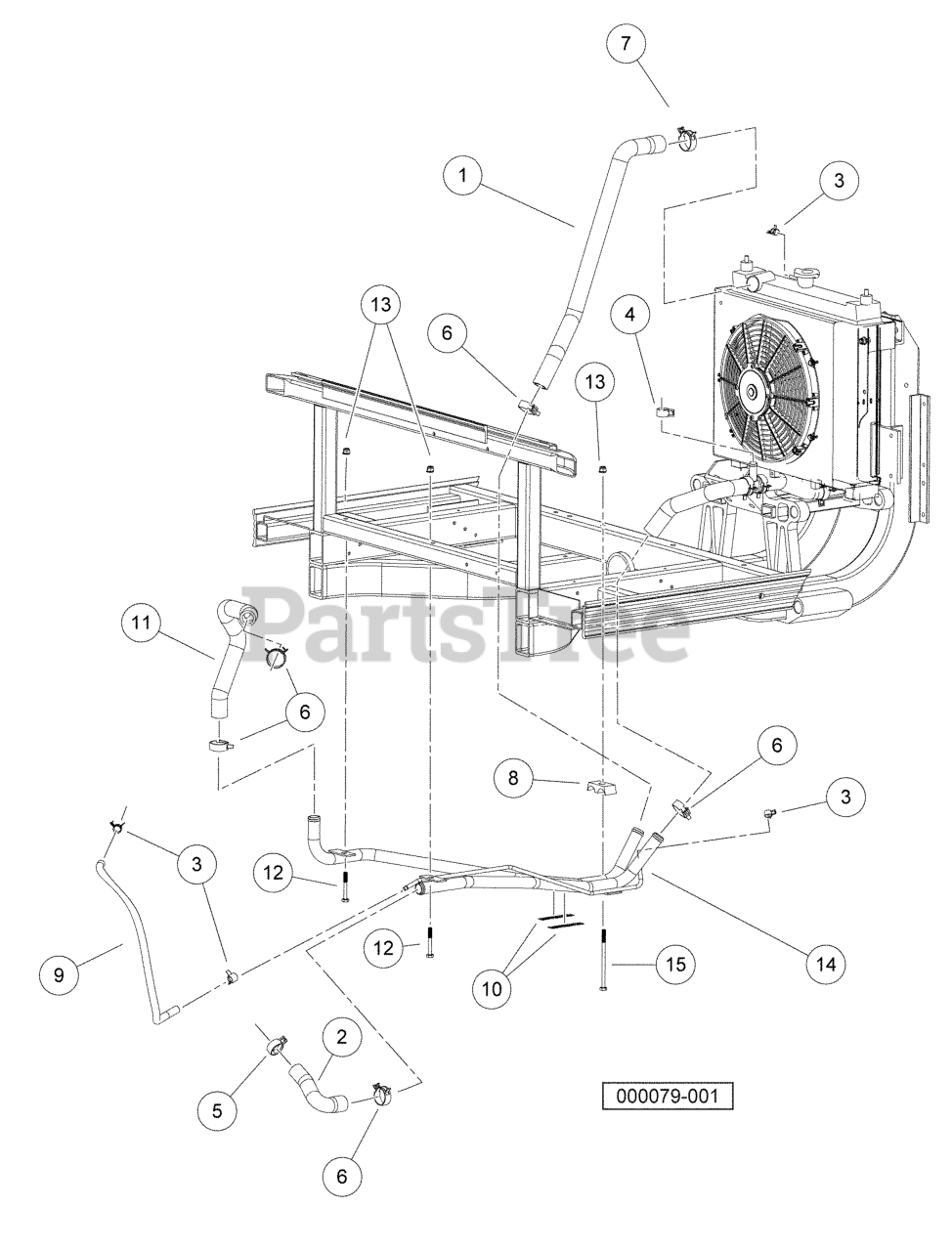

Coolant Pipes and Hoses Parts Diagram

  • Title

1

Husqvarna 603000927

HOSE, COOLANT UPPER RAD

$

$

Not available

2

Husqvarna 603000928

HOSE, COOLANT LOWER ENG

$

$

Not available

3

Husqvarna 603000970

CLAMP, HOSE, CTB 15MM

$

$

Not available

4

Husqvarna 603000971

CLAMP, HOSE, CTB 22MM

$

$

Not available

5

Husqvarna 603000972

CLAMP, HOSE, CTB 30MM

$

$

Not available

6

Husqvarna 603000973

CLAMP, HOSE, CTB 35MM

$

$

Not available

7

Husqvarna 603000974

CLAMP, HOSE, CTB 38MM

$

$

Not available

8

Husqvarna 603001003

CLAMP, BAR

$

$

Not available

9

Husqvarna 603001016

HOSE, VENT TUBE TO ENG, COOLNT

$

$

Not available

10

Husqvarna 603001102

DECAL, WARNING HOT SURFACE

$

$

Not available

11

Husqvarna 603001155

HOSE, COOLANT, RETURN, ENGINE

$

$

Not available

12

Husqvarna 603001306

BOLT FLG, M8X1.25X65

$

$

Not available

13

Husqvarna 603001308

LOCK NUT, FLG M8 X 1.25 NYLON

$

$

Not available

14

Husqvarna 603001326

WELDMENT-GROUP-COOLANT PIPE

Note: (includes items 15 through 19)

$

$

Not available

15

Pipe, Coolant Upper

$

$

Not available

16

Pipe, Coolant Lower

$

$

Not available

17

Tab, Rear Mntg, Coolant Pipe

$

$

Not available

18

Pipe, Vent, Coolant

$

$

Not available

19

Tab, Cooling Pipe Mount

$

$

Not available

20

Husqvarna 603000453

BOLT, M8 X 1.25 X 130

$

$

Not available
