HUV 4420 - Husqvarna 4x4 Utility Vehicle (2006-11) Forward/Reverse Shifter Assembly Parts Diagram

4x4 Utility Vehicle

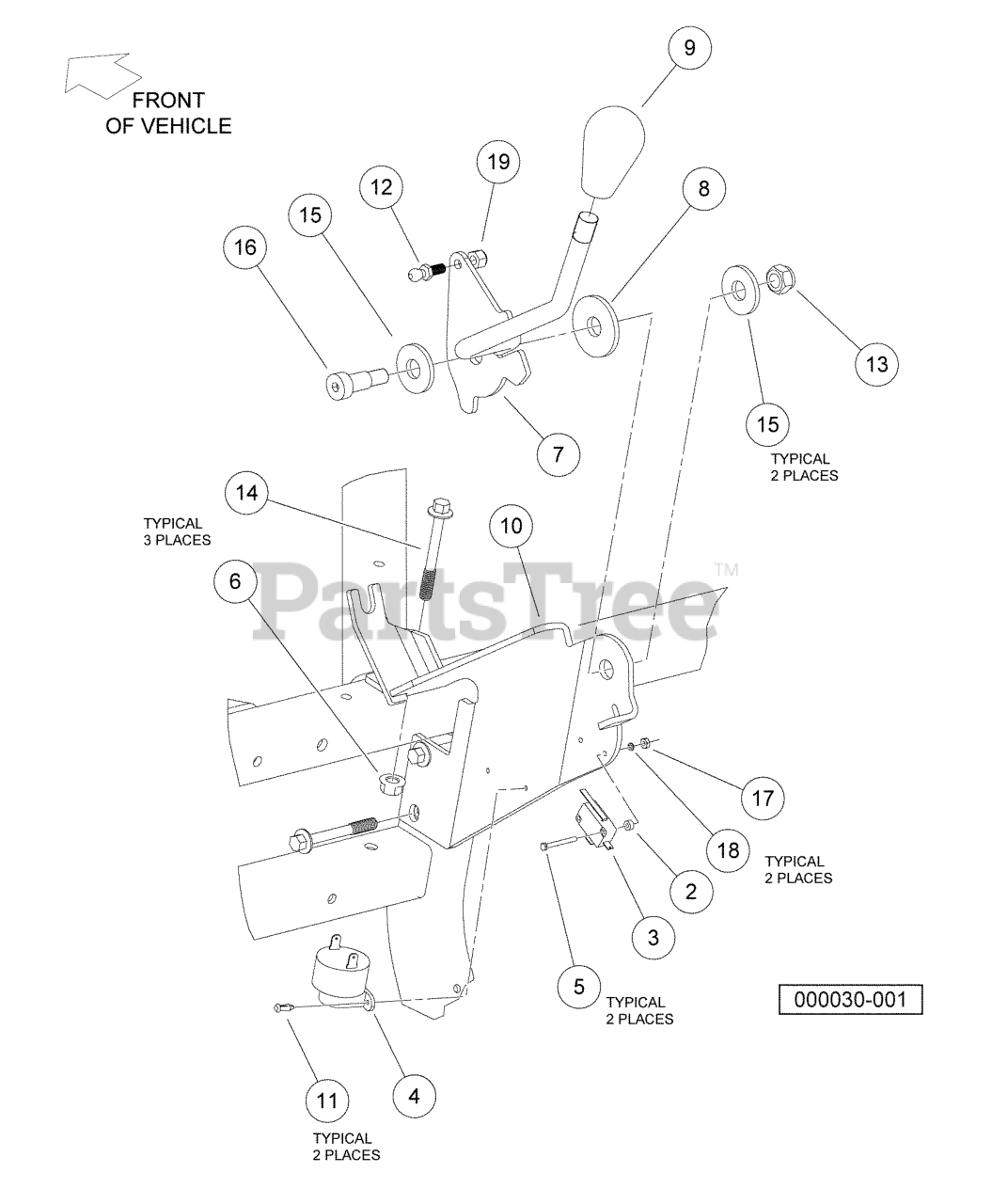

Forward/Reverse Shifter Assembly Parts Diagram

  • Title

1

Husqvarna 603001135

ASM, FNR

Note: (includes items 2 through 19)

$

$

Not available

2

Husqvarna 603000234

WASHER

$

$

Not available

3

Husqvarna 603000236

SWITCH,LIMIT

$

$

Not available

4

Husqvarna 603000371

BUZZER, 9-48 VDC REVERSE

$

$

Not available

5

Husqvarna 603000376

SCREW, #4-40 X 1.125 HX HD MCH

$

$

Not available

6

Husqvarna 603001298

NUT FLG, M8 X 1.25 MECH DEF

$2.49

$

Usually ships in 3-10 days

0

7

Weldment, FNR Shifter

$

$

Not available

8

Husqvarna 603000923

BUSHING, FNR

$

$

Not available

9

Husqvarna 603000924

KNOB, FNR

$

$

Not available

10

Weldment, FNR Shifter Bracket

$

$

Not available

11

Rivet, Micro Tuflok

$

$

Not available

12

Husqvarna 603001288

STUD, BALL, .346 DIA

$

$

Not available

13

Husqvarna 603001295

LOCKNUT-M10X1.5

$

$

Not available

14

Husqvarna 603001306

BOLT FLG, M8X1.25X65

$

$

Not available

15

Husqvarna 603001599

WASHER, M12 HARD REGULAR

$

$

Not available

16

Husqvarna 603001600

SHOULDER BOLT,M12 X 20 M10 THD

$

$

Not available

17

Husqvarna 603000086

NUT HEX MACHINE

$

$

Not available

18

Husqvarna 603000087

LOCKWASH, # 4 HELICAL SPLIT

$

$

Not available

19

Husqvarna 603000094

LOCKNUT, 1/4-28 NYLON INSERT

$

$

Not available
