HUV 4420 - Husqvarna 4x4 Utility Vehicle (2006-11) Front Differential Mounting and Half Shafts Parts Diagram

4x4 Utility Vehicle

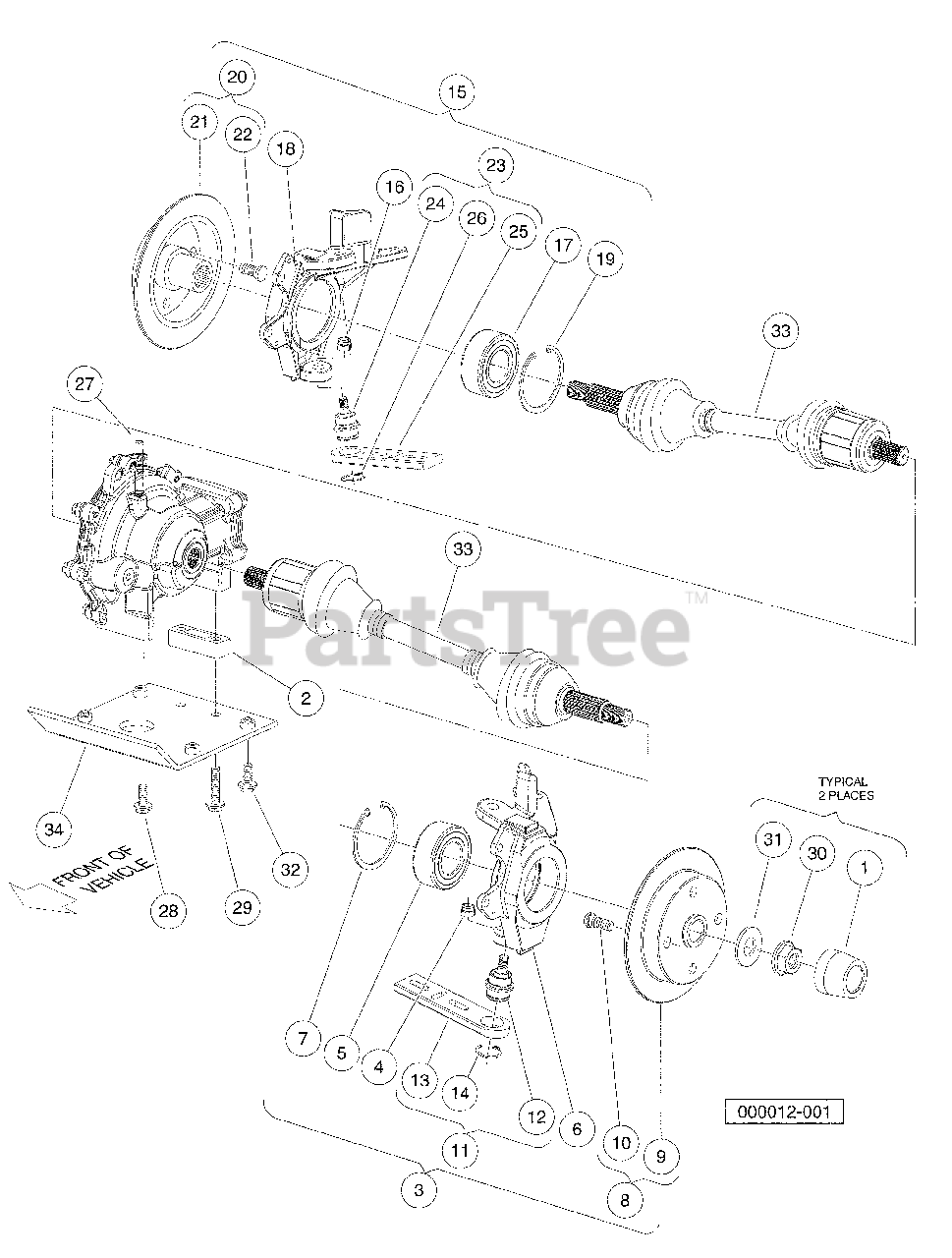

Front Differential Mounting and Half Shafts Parts Diagram

  • Title

1

Husqvarna 603000866

Center Cap, Rubber

$

$

Not available

2

Husqvarna 603000936

Spacer Block, Diff

$

$

Not available

3

Husqvarna 603001019

Upright Sub-Assembly, LH
(Superseded to 522718636)

Note: (includes items 4 through 11)

$

$

Not available

4

Husqvarna 603000684

Locknut, M12-1.25 Nylon

$

$

Not available

5

Husqvarna 603000899

Bearing

$

$

Not available

6

Upright, Left

$

$

Not available

7

Husqvarna 603000917

Internal Retaining Ring, 80mm Bore

$

$

Not available

8

Husqvarna 603000925

Assy, Rotor, Brake, Front

Note: (includes items 9 and 10)

$310.99

$

In Stock, only 1 left!

0

9

Rotor, Brake, Front

$

$

Not available

10

Husqvarna 603001144

Stud, Wheel Lug

$

$

Not available

11

Husqvarna 603001153

Asm, Adjuster, Slide

Note: (includes items 12 through 14)

$

$

Not available

12

Husqvarna 603000891

Joint, Ball

$

$

Not available

13

Husqvarna 603001064

Slide, Adjuster

$

$

Not available

14

Husqvarna 603001684

Ring, Retaining, Ext, 1-1/4"

$5.49

$

In Stock, Qty 9

0

15

Husqvarna 603001020

Upright Sub-Assembly, RH
(Superseded to 522718636)

Note: (includes items 16 through 23)

$

$

Not available

16

Husqvarna 603000684

Locknut, M12-1.25 Nylon

$

$

Not available

17

Husqvarna 603000899

Bearing

$

$

Not available

18

Upright, Right

$

$

Not available

19

Husqvarna 603000917

Internal Retaining Ring, 80mm Bore

$

$

Not available

20

Husqvarna 603000925

Assy, Rotor, Brake, Front

Note: (includes items 21 and 22)

$310.99

$

In Stock, only 1 left!

0

21

Rotor, Brake, Front

$

$

Not available

22

Husqvarna 603001144

Stud, Wheel Lug

$

$

Not available

23

Husqvarna 603001153

Asm, Adjuster, Slide

Note: (includes items 24 through 26)

$

$

Not available

24

Husqvarna 603000891

Joint, Ball

$

$

Not available

25

Husqvarna 603001064

Slide, Adjuster

$

$

Not available

26

Husqvarna 603001684

Ring, Retaining, Ext, 1-1/4"

$5.49

$

In Stock, Qty 9

0

27

Husqvarna 603001112

Hose, Vent, Front Diff

$

$

Not available

28

Husqvarna 603001171

Bolt Flanged Head, 3/8-16x1.0 with Loctite

$

$

Not available

29

Husqvarna 603001172

Bolt Flanged Head, 3/8-16x1.500 with Loctite

$

$

Not available

30

Husqvarna 603001302

Nut Flg, M22 X 1.5 Mech Def

$

$

Not available

31

Husqvarna 603001304

Washer Hard, M22

$12.99

$

In Stock, only 1 left!

0

32

Husqvarna 603001669

Bolt, Flange Head, M10 X 1.5 X 25

$

$

Not available

33

Husqvarna 531309544

Shaft, Half

$

$

Not available

34

Husqvarna 603003562

Asm, Mount, Diff Plate

$

$

Not available
