HUV 4420 - Husqvarna 4x4 Utility Vehicle (2006-11) Nozzle Holders and Glow Plugs Parts Diagram

4x4 Utility Vehicle

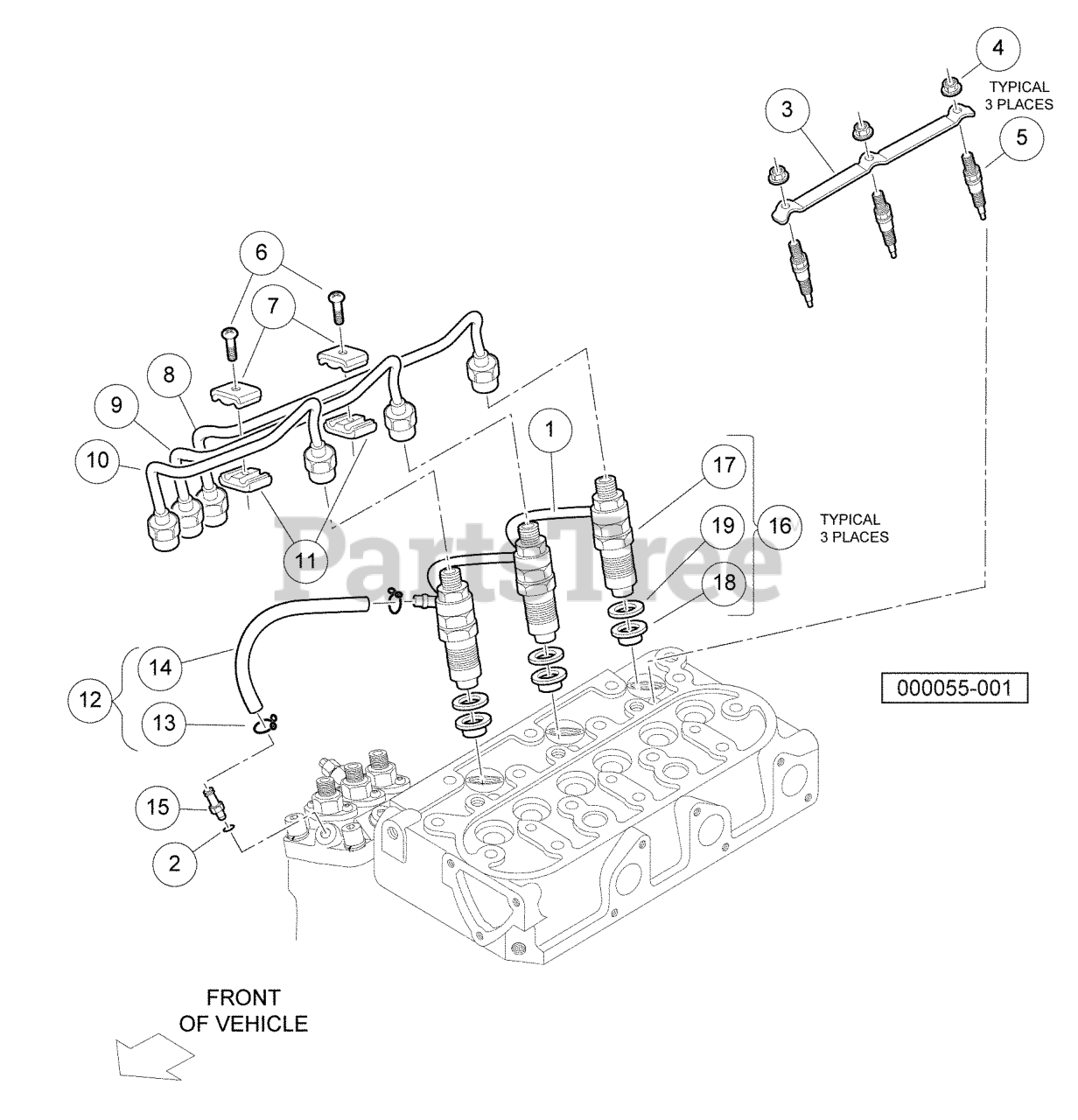

Nozzle Holders and Glow Plugs Parts Diagram

  • Title

1

Husqvarna 603001241

ASSY PIPE

$

$

Not available

2

Husqvarna 603001369

GASKET, 6X10

$

$

Not available

3

Husqvarna 603001393

CORD, GLOW PLUG

$

$

Not available

4

Husqvarna 603001394

NUT, FLANGE, M4

$

$

Not available

5

Husqvarna 603001395

GLOW PLUG

$

$

Not available

6

Husqvarna 603001397

SCREW-WASHER

$

$

Not available

7

Husqvarna 603001398

CLAMP, PIPE, TOP

$

$

Not available

8

Husqvarna 603001399

PIPE, INJECTION, LEFT

$

$

Not available

9

Husqvarna 603001400

PIPE, INJECTION, RIGHT

$

$

Not available

10

Husqvarna 603001401

PIPE, INJECTION, MIDDLE

$

$

Not available

11

Husqvarna 603001402

CLAMP, PIPE, BOTTOM

$

$

Not available

12

Husqvarna 603001403

ASSY PIPE, OVERFLOW

Note: (includes items 13 and 14)

$

$

Not available

13

Husqvarna 603001734

CLIP, PIPE, RETURN

$

$

Not available

14

Hose, Overflow

$

$

Not available

15

Husqvarna 603001405

SCREW, AIR BREEDER

$

$

Not available

16

Husqvarna 603001735

KIT, HOLDER, NOZZLE

Note: (includes items 17 through 19)

$

$

Not available

17

Husqvarna 603001392

ASSY HOLDER, NOZZLE

$

$

Not available

18

Husqvarna 603001396

SEAL, HEAT

$

$

Not available

19

Husqvarna 603001404

GASKET, NOZZLE

$

$

Not available
