HUV 4420 - Husqvarna 4x4 Utility Vehicle (2006-11) Transmission Parts Diagram

4x4 Utility Vehicle

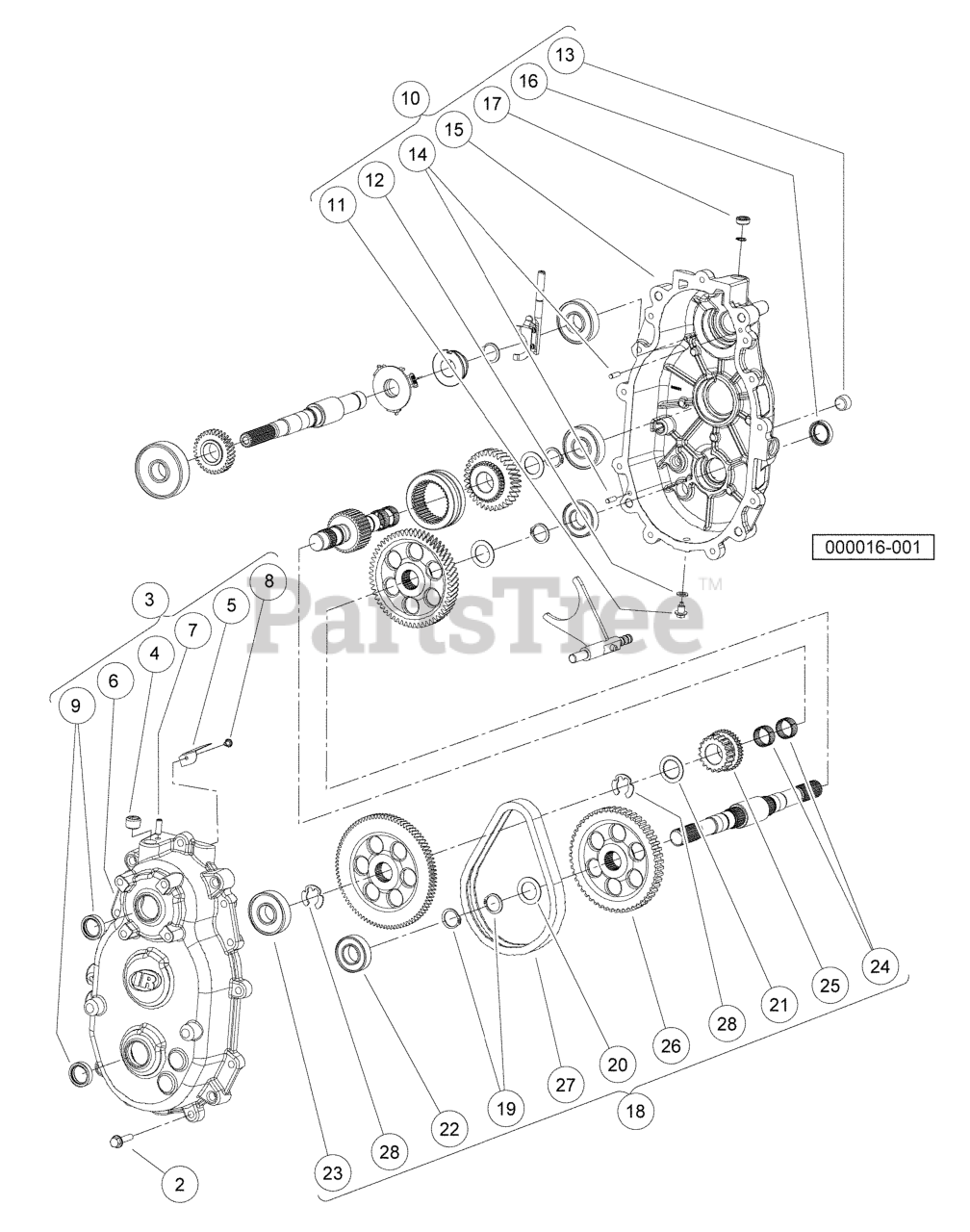

Transmission Parts Diagram

  • Title

1

Husqvarna 603000904

TRANSMISSION, PARALLEL SHAFT

Note: (includes items 2 through 18) This assembly also contains components listed on the following four pages

$

$

Not available

2

Husqvarna 603001622

SCREW, HEX FLANGE, M8 X 35

$

$

Not available

3

Husqvarna 603001780

ASM-GEAR CASE REAR

Note: (includes items 4 through 9)

$

$

Not available

4

Husqvarna 603001628

PLUG, SQUARE SKIT, 1/12-14,PTF

$

$

Not available

5

Husqvarna 603001643

OIL, DEFLECTOR

$

$

Not available

6

Gearcase, Rear

$

$

Not available

7

Husqvarna 603001653

VENT, TRANS

$

$

Not available

8

Husqvarna 603001654

SCREW, TAPPING #10-24 X .375

$

$

Not available

9

Husqvarna 603001655

SEAL, TRIPLE, 25 X 35 X 7.8

$

$

Not available

10

Husqvarna 603001781

ASM-GEAR CASE FRONT

Note: (includes items 11 through 17)

$

$

Not available

11

Husqvarna 603001623

PLUG,3/8-16, HEX FLANGE

$

$

Not available

12

Husqvarna 603001624

WASHER, .625 X .382 X .60

$

$

Not available

13

Husqvarna 603001628

PLUG, SQUARE SKIT, 1/12-14,PTF

$

$

Not available

14

Husqvarna 603001641

PIN, DOWEL, 6 X 20

$

$

Not available

15

Gearcase, Front

$

$

Not available

16

Husqvarna 603001655

SEAL, TRIPLE, 25 X 35 X 7.8

$

$

Not available

17

Husqvarna 603001681

SEAL, DUAL LIP

$

$

Not available

18

Husqvarna 603001787

KIT-REVERSE GEAR REPAIR

Note: (includes items 19 through 28)

$

$

Not available

19

Husqvarna 603001642

RING, RETAINING, BASIC EXTERNA

$

$

Not available

20

Husqvarna 603001645

WASHER, THRUST, 1.007 X .062

$

$

Not available

21

Husqvarna 603001647

WASHER, 26.231 X 39.167 X 1.57

$

$

Not available

22

Husqvarna 603001648

BEARING, BALL, 6205 C3

$

$

Not available

23

Husqvarna 603001649

BEARING, BALL, 6305 C3

$

$

Not available

24

Husqvarna 603001651

BEARING, NEEDLE, SPLIT CAGE

$

$

Not available

25

Sprocket, 19-Tooth

$

$

Not available

26

Sprocket, 51-Tooth

$

$

Not available

27

Chain, .375p, .75 Wide, 60ptch

$

$

Not available

28

Husqvarna 603001658

RING, RETAINING, E-RING, PO-10

$

$

Not available
