HUV 4420 - Husqvarna 4x4 Utility Vehicle (2008-03) BATTERY Parts Diagram

4x4 Utility Vehicle

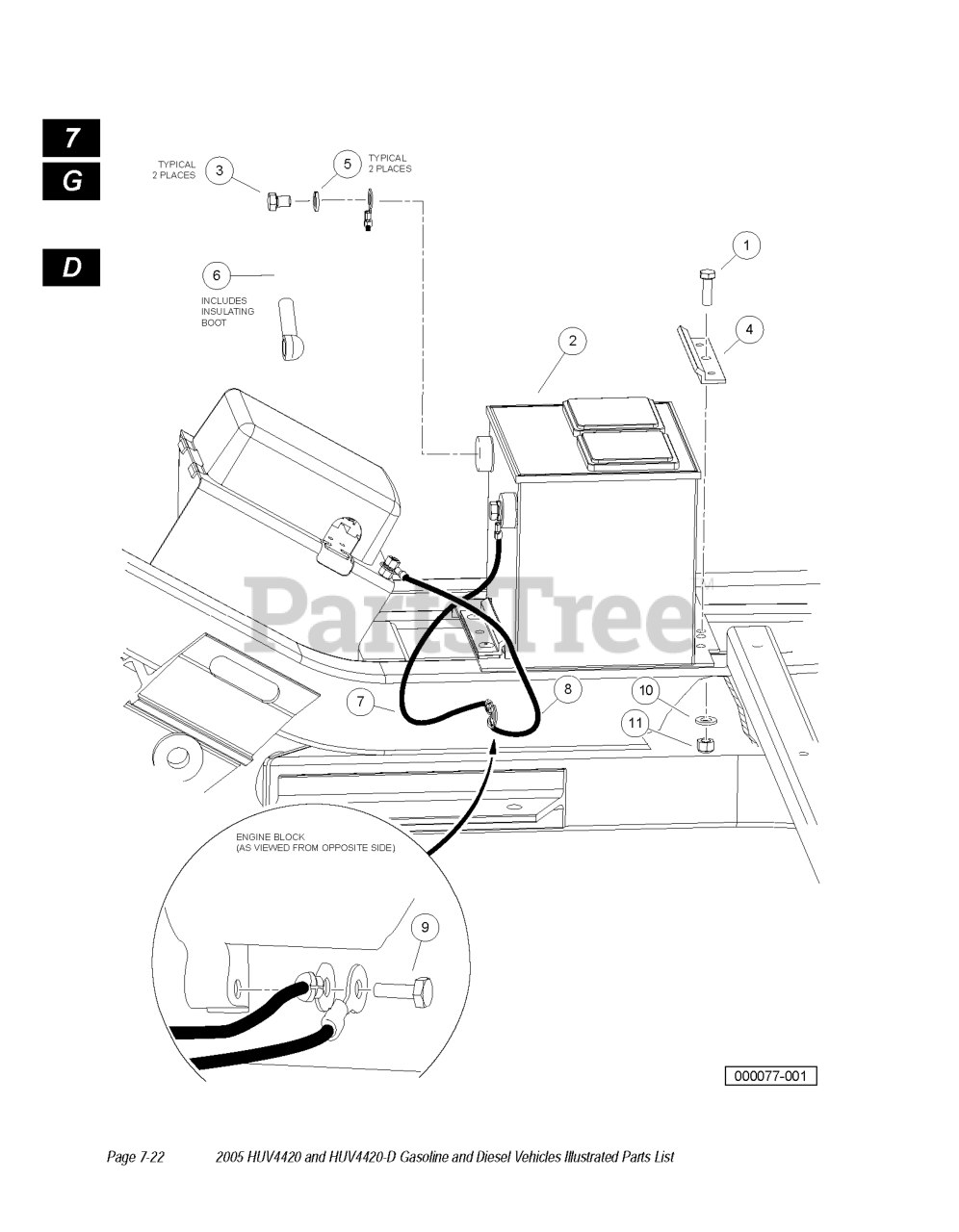

BATTERY Parts Diagram

  • Title

1

Husqvarna 603000116

SCREW HEX CAP

$

$

Not available

11

Husqvarna 603000078

LOCKNUT, 5/16-18 NYLON INSERT

$

$

Not available

3

Husqvarna 603000224

SCREW

$

$

Not available

9

Husqvarna 603001167

BOLT, M6 X 1 X 16 LOCTITE

$

$

Not available

4

Husqvarna 603000576

CLAMP - BATTERY

$

$

Not available

5

Husqvarna 603000890

LOCKWASHER, 3/8 STAINLESS STL

$

$

Not available

10

Husqvarna 603000065

WASHER, 5/16 TYPE A FLAT

$

$

Not available

6

Husqvarna 603001050

WIRE ASM, #6 RED, AWD

Note: RED WIRE

$

$

Not available

8

Husqvarna 603001052

WIRE ASM, #6 BLK, AWD, 250

Note: BLACK WIRE

$

$

Not available

7

Husqvarna 603001051

WIRE ASM, #6 BLK, AWD, 300

Note: BLACK WIRE

$

$

Not available

2

Husqvarna 603000002

BATTERY, 12 VOLT

$

$

Not available
