HUV 4420 - Husqvarna 4x4 Utility Vehicle (2008-03) FRONT BODY Parts Diagram

4x4 Utility Vehicle

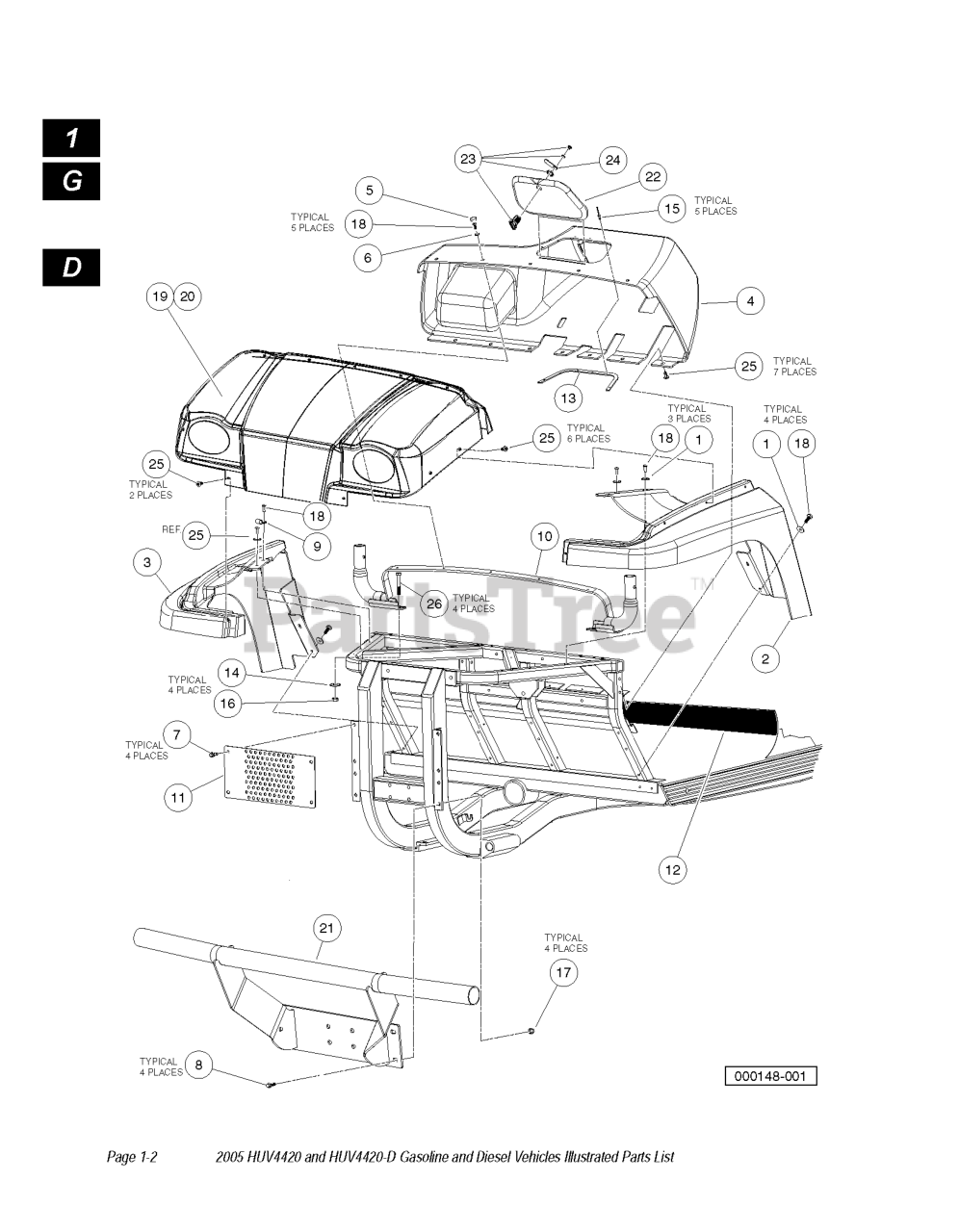

FRONT BODY Parts Diagram

  • Title

14

Husqvarna 603001174

WASHER HARD, M10

$

$

Not available

18

Husqvarna 603001325

SCREW, 1/4-20X1.0 PN HD TORX

$

$

Not available

23

Husqvarna 603002778

CAM LOCK BODY

$

$

Not available

2

Husqvarna 603000674

FENDER, LEFT FRONT B

Note: LEFT

$

$

Not available

13

Husqvarna 603001151

SUPPORT, ACCESS PANEL, DASH

$

$

Not available

20

Husqvarna 603001676

COWL, OEM, ORANGE

Note: ORANGE

$

$

Not available

8

Husqvarna 603000875

BOLT - FLANGED HD, M8 X 30.0

$

$

Not available

5

Husqvarna 603000729

CAP 1/4" PLASTIC SCREW HEAD

$

$

Not available

4

Husqvarna 603000678

DASH BOARD WITH ACCESS HOLE

$

$

Not available

1

Husqvarna 603000222

WASHER

$

$

Not available

17

Husqvarna 603001308

LOCK NUT, FLG M8 X 1.25 NYLON

$

$

Not available

10

Husqvarna 603000989

WELDMENT, SUPP, COWL, ROPS

$

$

Not available

24

Husqvarna 603002785

LATCH, CAM, ACCESS PANEL

$

$

Not available

6

Husqvarna 603000737

WASHER 1/4 ID SCALLOPED PLAST

$

$

Not available

12

Husqvarna 603001011

MAT, FLOOR AWD

$

$

Not available

9

Husqvarna 603000966

P-CLAMP, INSULATED .312 IN

$

$

Not available

3

Husqvarna 603000676

FENDER - RIGHT FRONT B

Note: RIGHT

$

$

Not available

25

Husqvarna 603000695

SCREW, TUFLOK PANEL, 1/4

$

$

Not available

19

Husqvarna 603001675

Cowl, Camo

Note: CAMO

$538.99

$

Usually ships in 3-10 days

0

26

Husqvarna 603000448

BOLT, M10 X 1.50 X 65

$

$

Not available

15

Husqvarna 603001181

RIVET, .125" DIA, .311" PANEL

$

$

Not available

11

Husqvarna 603001004

GRILL, FLAT

$

$

Not available

22

Husqvarna 603002766

PANEL, ACCESS, DASH

$

$

Not available

21

Husqvarna 603001769

Brush Guard

$

$

Not available

16

Husqvarna 603001300

NUT FLG M10 X 1.5 MECH DEF

$

$

Not available

7

Husqvarna 603000870

SCREW, M8 X 1.25 X 30 TRI, BLK

Note: BLACK

$

$

Not available
