HUV 4420 - Husqvarna 4x4 Utility Vehicle (2008-03) FUEL SYSTEM Parts Diagram

4x4 Utility Vehicle

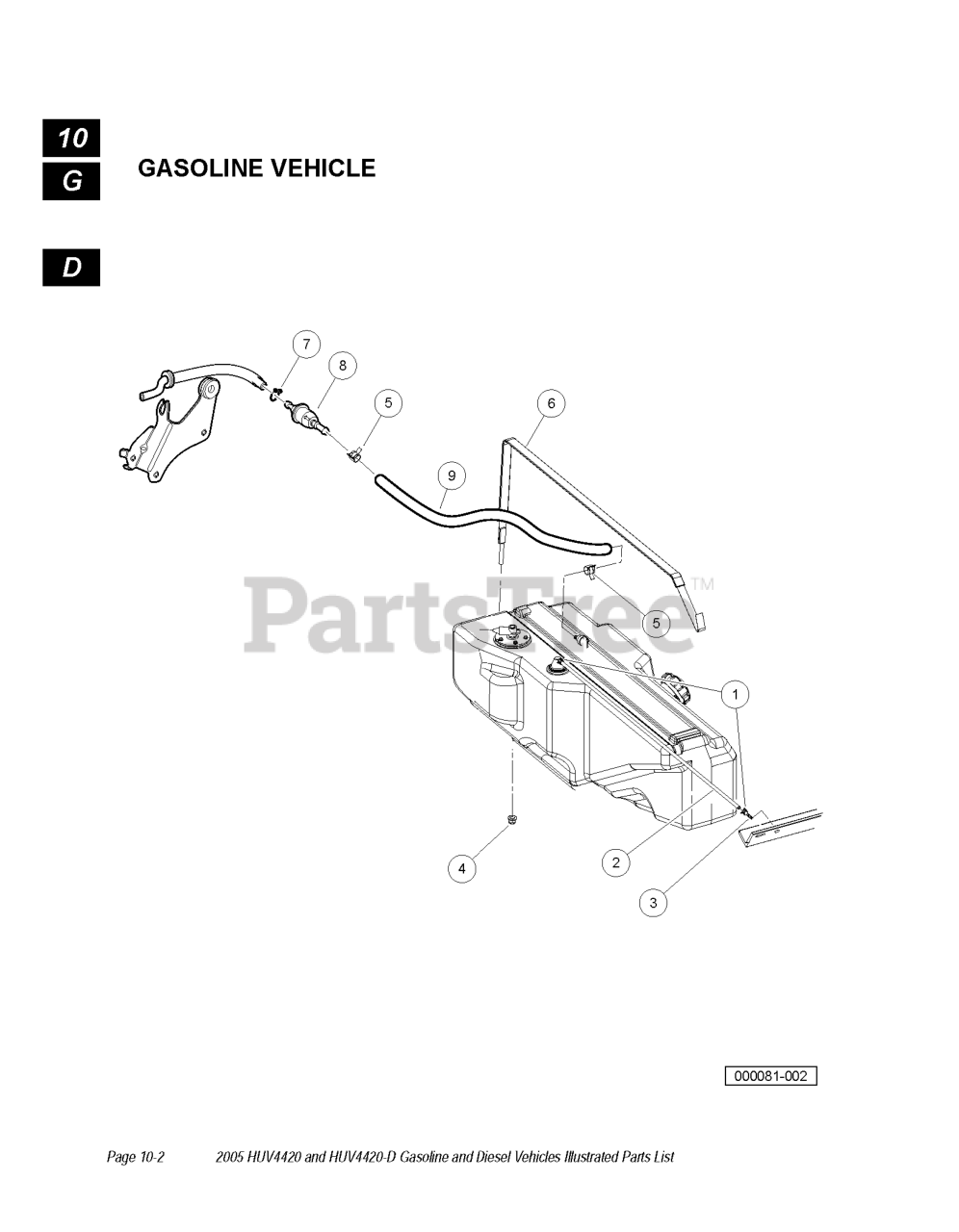

FUEL SYSTEM Parts Diagram

  • Title

1

Husqvarna 603000185

CLAMP

$

$

Not available

2

Husqvarna 603000465

TUBE, CARBURETOR AIR VENT

$

$

Not available

4

Husqvarna 603001298

NUT FLG, M8 X 1.25 MECH DEF

$2.49

$

In Stock, Qty 11

0

8

Husqvarna 603000037

FILTER FUEL

$

$

Not available

6

Husqvarna 603001000

STRAP, TANK, FUEL

$

$

Not available

3

Husqvarna 603000503

VENT BARB

$

$

Not available

5

Husqvarna 603000968

CLAMP, HOSE, CTB 13MM

$

$

Not available

7

Husqvarna 603001481

CLIP, TUBE, B10

$

$

Not available

9

Husqvarna 603003804

HOSE, TANK TO FILTER, FH680D

Note: FH680D

$

$

Not available
