HUV 4421 D - Husqvarna 4x4 Utility Vehicle, Diesel (2006-11) Accelerator Pedal Assembly Style A Parts Diagram

4x4 Utility Vehicle, Diesel

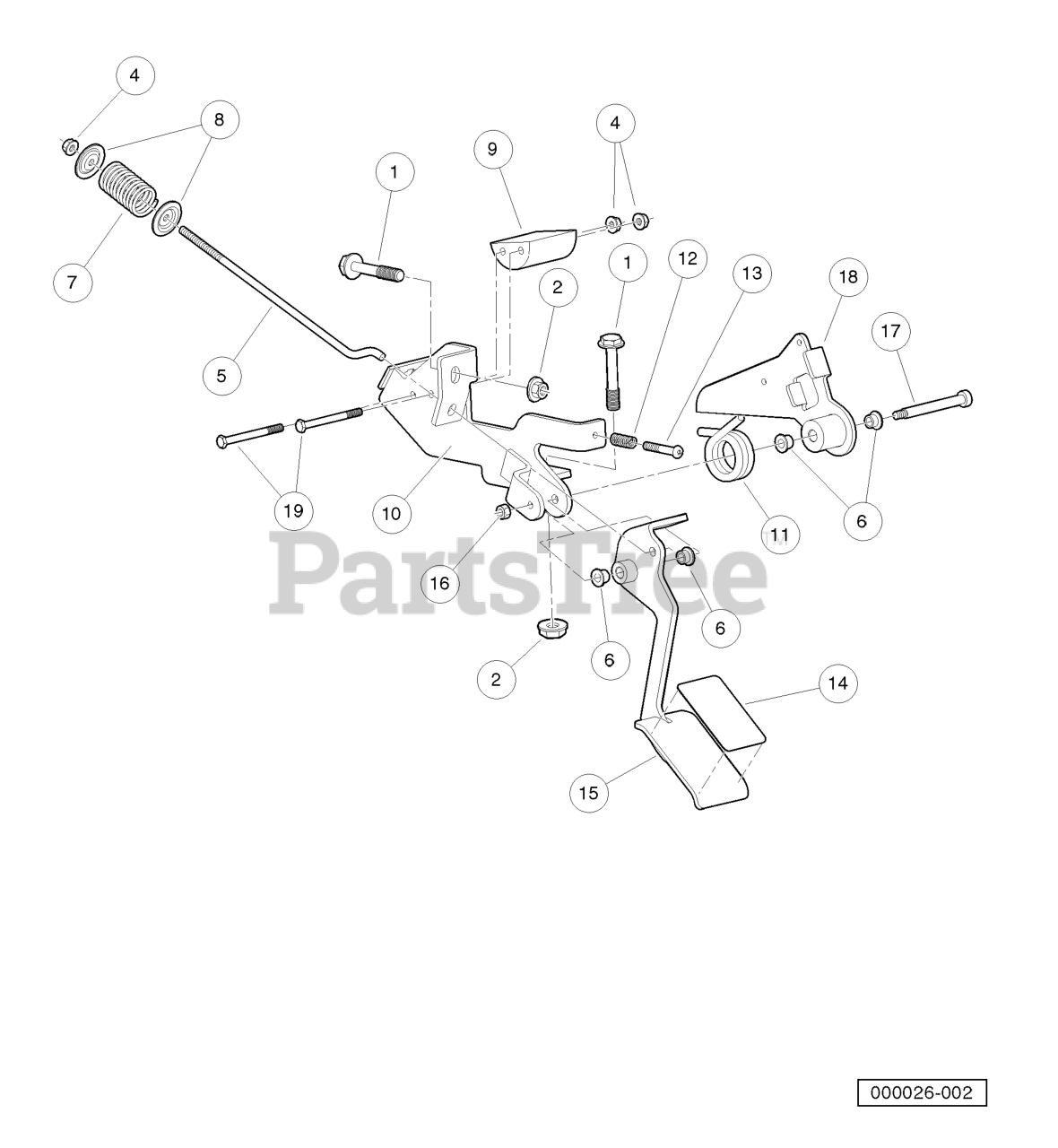

Accelerator Pedal Assembly Style A Parts Diagram

  • Title

1

Husqvarna 603001306

BOLT FLG, M8X1.25X65

$

$

Not available

2

Husqvarna 603001308

LOCK NUT, FLG M8 X 1.25 NYLON

$

$

Not available

3

Husqvarna 603003834

ASM, ACCELERATOR PEDAL

Note: (includes items 4 through 19)

$

$

Not available

4

Husqvarna 603001299

NUT-M6X1.0 FLNG ALL MTL LOCK

$

$

Not available

5

Pullrod, Spring, Compression

$

$

Not available

6

Husqvarna 603001055

BUSHING, GREASELESS

$

$

Not available

7

Spring, Comp, Pedal, Pullrod

$

$

Not available

8

Washer, Retaining Spring, 7mm

$

$

Not available

9

Guide, Cable, Accelerator

$

$

Not available

10

Weldment, Bracket, Pedal

$

$

Not available

11

Spring, Torsion

$

$

Not available

12

Spring, Stop, Pedal

$

$

Not available

13

Bolt, Stop, Pedal

$

$

Not available

14

Husqvarna 603001154

PAD, GRIP TAPE, ACCELERATOR

$

$

Not available

15

Weldment, Pedal, Accelerator

$

$

Not available

16

Husqvarna 603001305

NUT M6X1 MECH DEF CENTER

$3.49

$

Usually ships in 3-10 days

0

17

Husqvarna 603003840

BOLT, SHOULDER, M8 X 70, HC

$

$

Not available

18

Weldment, Lever, Lost Motion

$

$

Not available

19

Husqvarna 603000445

BOLT, M6 X 1 X 70

$

$

Not available
