HUV 4421 D - Husqvarna 4x4 Utility Vehicle, Diesel (2006-11) Exhaust System Parts Diagram

4x4 Utility Vehicle, Diesel

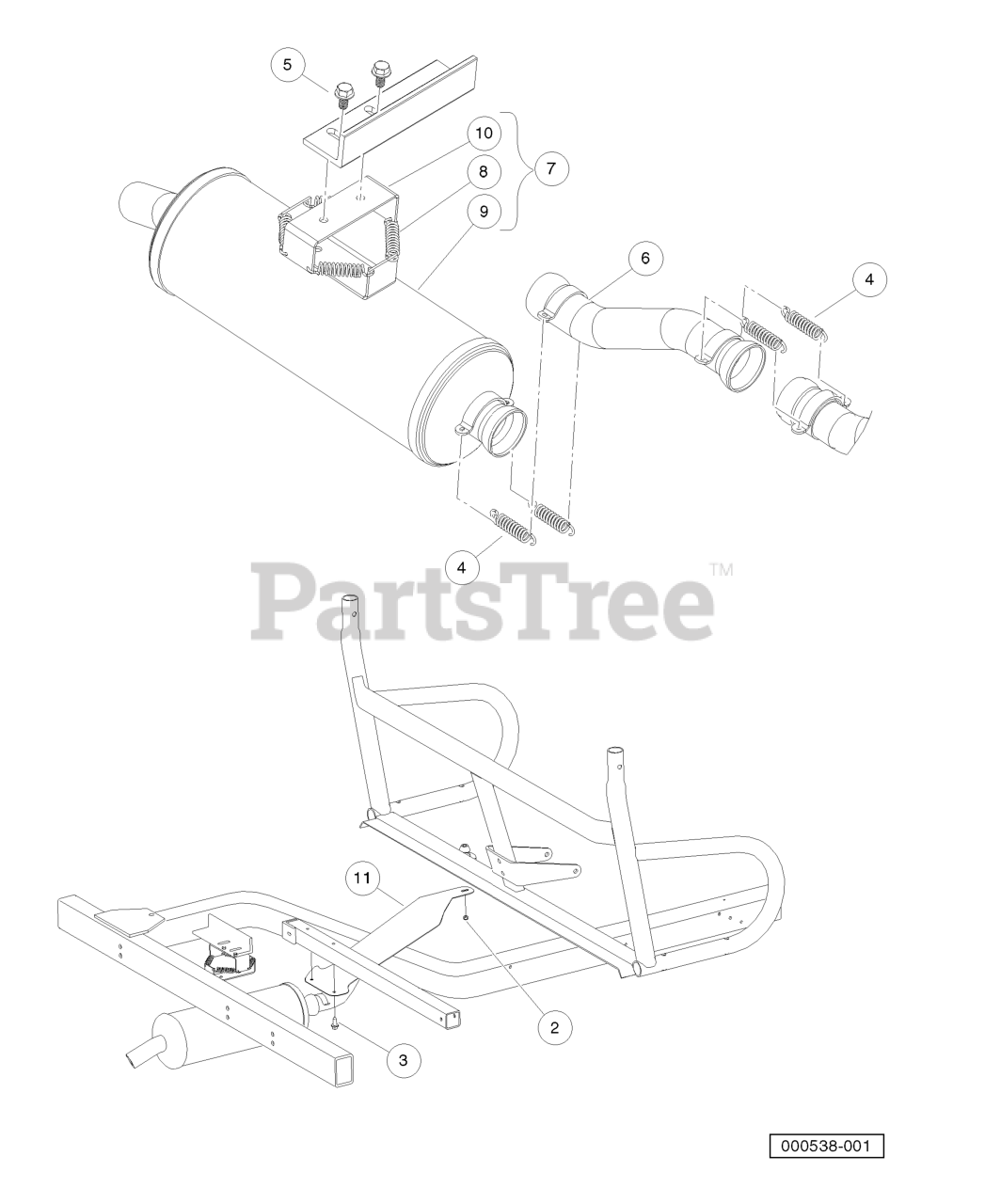

Exhaust System Parts Diagram

  • Title

1

Instl, Exhaust, AWD

Note: (includes items 2 through 11)

$

$

Not available

2

Husqvarna 603000558

LOCKNUT, M6-1.00 NYLON INSERT

$

$

Not available

3

Husqvarna 603003559

M8-1.25X20 TAPTITE

$

$

Not available

4

Husqvarna 603000960

SPRING, EXHAUST

$

$

Not available

5

Husqvarna 603001315

BOLT FLG, M8X1.25X16 LOCTITE

$

$

Not available

6

Husqvarna 531308388

PIPE, EXHAUST, INT, OFFSET

$

$

Not available

7

Husqvarna 603002947

ASM, MUFFLER, AWD HOMOLOGATION

Note: (includes items 8 through 10)

$

$

Not available

8

Husqvarna 603000960

SPRING, EXHAUST

$

$

Not available

9

Muffler

$

$

Not available

10

Bracket, Muffler

$

$

Not available

11

Husqvarna 531307135

SHIELD, EXHAUST PIPE

$

$

Not available
