HUV 4421 D - Husqvarna 4x4 Utility Vehicle, Diesel (2007-01) Intake Duct and Air Box Assembly - Diesel Vehicles Parts Diagram

4x4 Utility Vehicle, Diesel

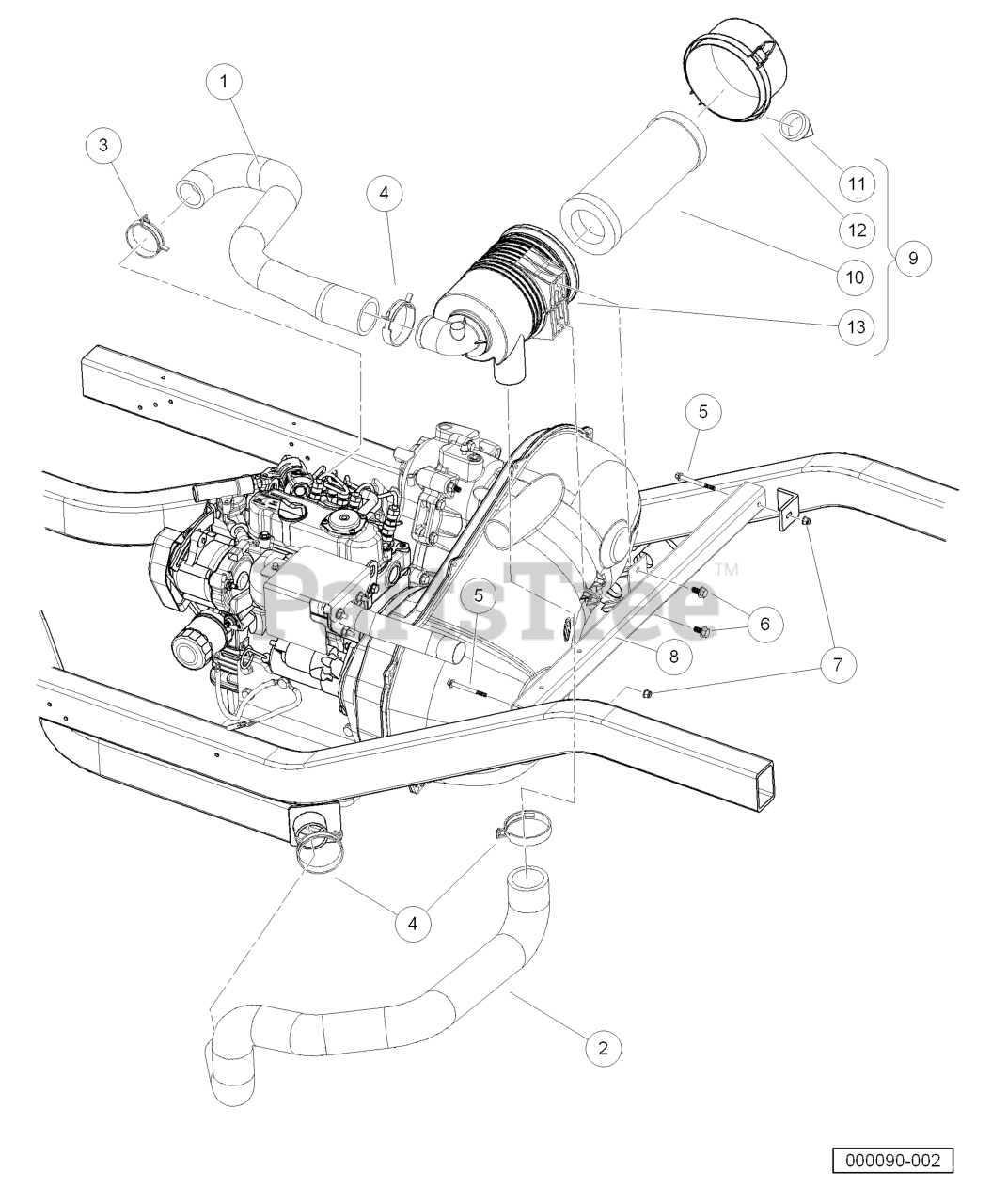

Intake Duct and Air Box Assembly - Diesel Vehicles Parts Diagram

  • Title

1

Husqvarna 603000932

HOSE, INTAKE, D722

$

$

Not available

2

Husqvarna 603000943

HOSE, INTAKE, PRIMARY

$

$

Not available

3

Husqvarna 603000975

CLAMP, HOSE, CTB 55MM

$

$

Not available

4

Husqvarna 603000976

CLAMP, HOSE, CTB 64MM

$

$

Not available

5

Husqvarna 603001198

BOLT-M6X1.0X65 HEX FL HD, BLK

$

$

Not available

6

Husqvarna 603001315

BOLT FLG, M8X1.25X16 LOCTITE

$

$

Not available

7

Husqvarna 603001317

NUT FLG, M6 X 1.0 NYLON

$

$

Not available

8

Weldment, Support, Air Cleaner

$

$

Not available

9

Husqvarna 603000933

FILTER, AIR, CANISTER, 5IN

Note: (includes items 10 through 13)

$

$

Not available

10

Husqvarna 603000010

ELEMENT, FILTER, AIR, 5 IN

$

$

Not available

11

Husqvarna 603001698

AIR FILTER VALVE

$

$

Not available

12

Husqvarna 603001699

AIR FILTER CAP

$

$

Not available

13

Body, Canister, Filter, Air

$

$

Not available
