HUV 4421 D - Husqvarna 4x4 Utility Vehicle, Diesel (2009-01) Accelerator Pedal Assembly Parts Diagram

4x4 Utility Vehicle, Diesel

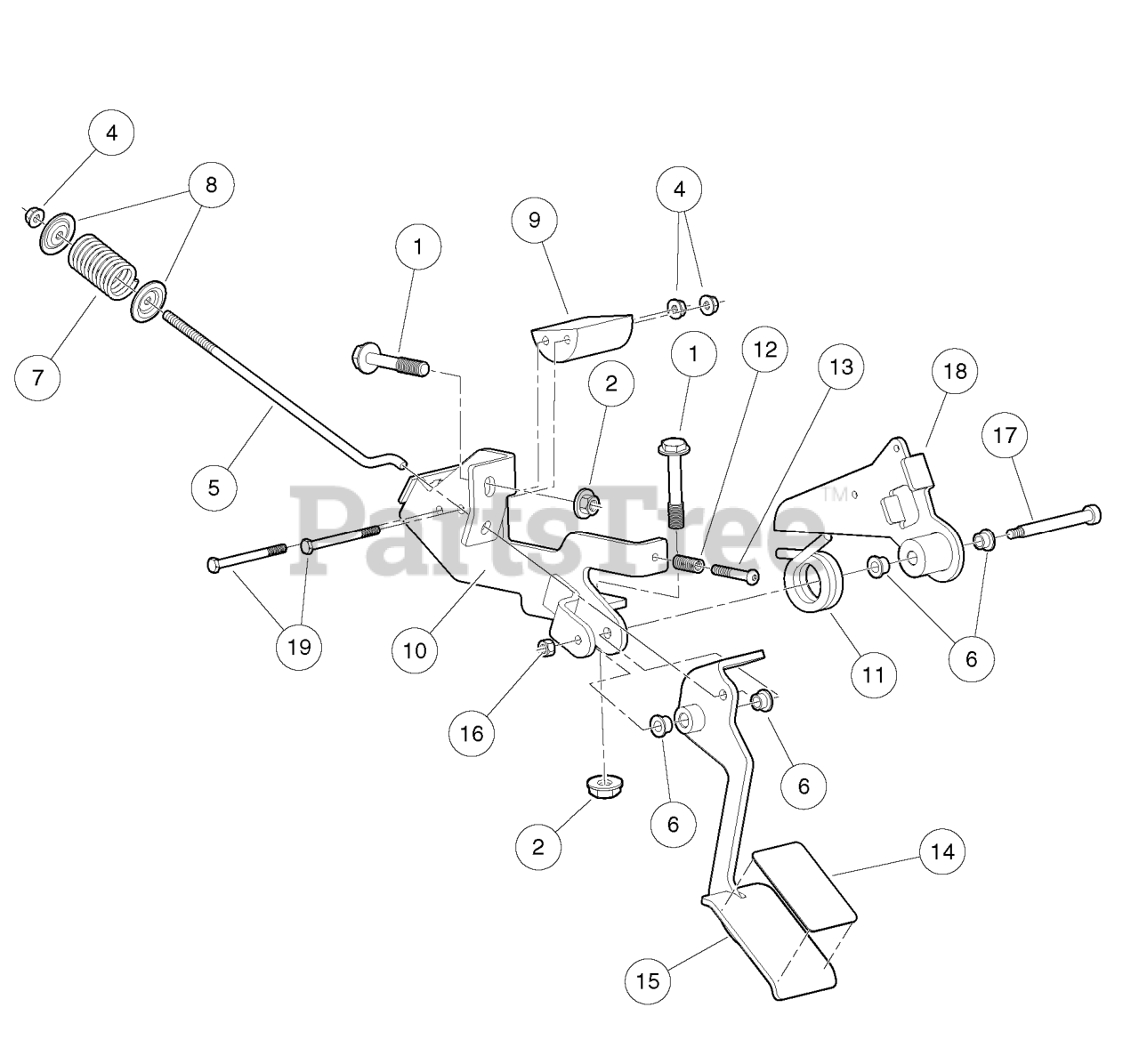

Accelerator Pedal Assembly Parts Diagram

  • Title

1

Husqvarna 102618301

Bolt Flanged Head, M8 X 1.25 X 65

$

$

Currently unavailable

2

Husqvarna 102618601

Lock Nut, Flg M8 X 1.25 Nylon

$

$

Currently unavailable

3

Husqvarna 103278101

Asm, Accelerator Pedal

Note: (includes items 4 through 19)

$

$

Currently unavailable

4

Husqvarna 102296401

Nut-m6x1.0 Flng All Mtl Lock

$

$

Currently unavailable

5

Pullrod, Spring, Compression

$

$

Not available

6

Husqvarna 102442901

Bushing, Greaseless

$

$

Currently unavailable

7

Spring, Comp, Pedal, Pullrod

$

$

Not available

8

Washer, Retaining Spring, 7mm

$

$

Not available

9

Guide, Cable, Accelerator

$

$

Not available

10

Weldment, Bracket, Pedal

$

$

Not available

11

Spring, Torsion

$

$

Not available

12

Spring, Stop, Pedal

$

$

Not available

13

Bolt, Stop, Pedal

$

$

Not available

14

Pad, Grip Tape, Accelerator

$

$

Not available

15

Weldment, Pedal, Accelerator

$

$

Not available

16

Husqvarna 102618101

Nut M6x1 Mech Def Center

$

$

Currently unavailable

17

Husqvarna 103273101

Bolt, Shoulder, M8 X 70, Hc

$

$

Currently unavailable

18

Weldment, Lever, Lost Motion

$

$

Not available

19

Husqvarna 96706825

Bolt, M6 X 1 X 70

$

$

Currently unavailable
