HUV 4421 D - Husqvarna 4x4 Utility Vehicle, Diesel (2009-01) Accelerator Pedal Assembly - Style B Parts Diagram

4x4 Utility Vehicle, Diesel

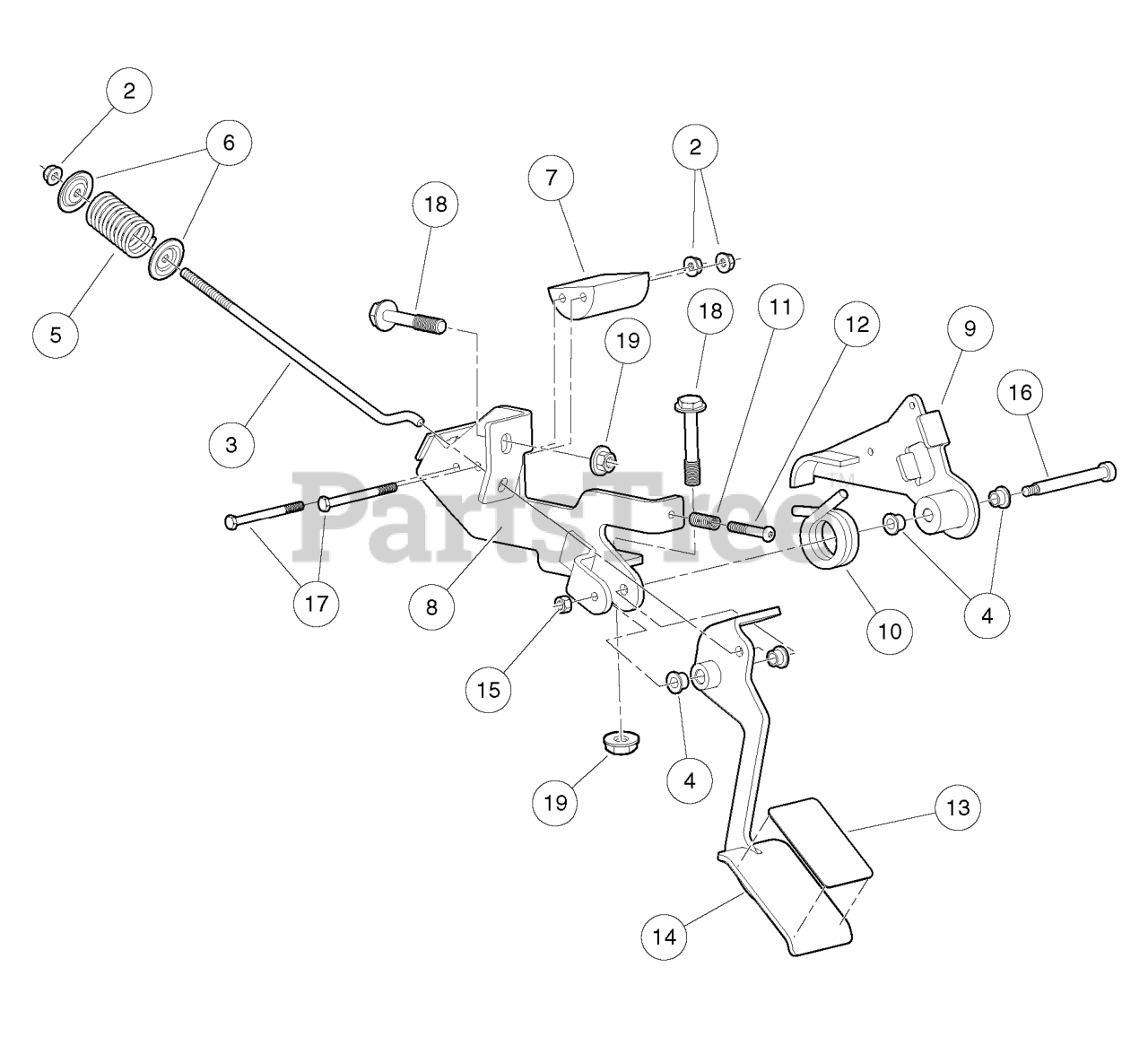

Accelerator Pedal Assembly - Style B Parts Diagram

  • Title

1

Husqvarna 102489901

Asm, Pedal, Accelerator

Note: (includes items 2 through 17)

$

$

Currently unavailable

2

Husqvarna 102296401

Nut-m6x1.0 Flng All Mtl Lock

$

$

Currently unavailable

3

Pullrod, Spring, Compression

$

$

Not available

4

Husqvarna 102442901

Bushing, Greaseless

$

$

Currently unavailable

5

Spring, Comp, Pedal, Pullrod

$

$

Not available

6

Washer, Retaining Spring, 7mm

$

$

Not available

7

Guide, Cable, Accelerator

$

$

Not available

8

Weldment, Bracket, Pedal

$

$

Not available

9

Weldment, Lever, Motion, Lost

$

$

Not available

10

Spring, Torsion

$

$

Not available

11

Spring, Stop, Pedal

$

$

Not available

12

Bolt, Stop, Pedal

$

$

Not available

13

Pad, Grip Tape, Accelerator

$

$

Not available

14

Weldment, Pedal, Accelerator

$

$

Not available

15

Husqvarna 102618101

Nut M6x1 Mech Def Center

$

$

Currently unavailable

16

Husqvarna 103273101

Bolt, Shoulder, M8 X 70, Hc

$

$

Currently unavailable

17

Husqvarna 96706825

Bolt, M6 X 1 X 70

$

$

Currently unavailable

18

Husqvarna 102618301

Bolt Flanged Head, M8 X 1.25 X 65

$

$

Currently unavailable

19

Husqvarna 102618601

Lock Nut, Flg M8 X 1.25 Nylon

$

$

Currently unavailable
