HUV 4421 DXL - Husqvarna 4x4 Utility Vehicle, Diesel (2009-01) Brake Pedal Assembly Parts Diagram

4x4 Utility Vehicle, Diesel

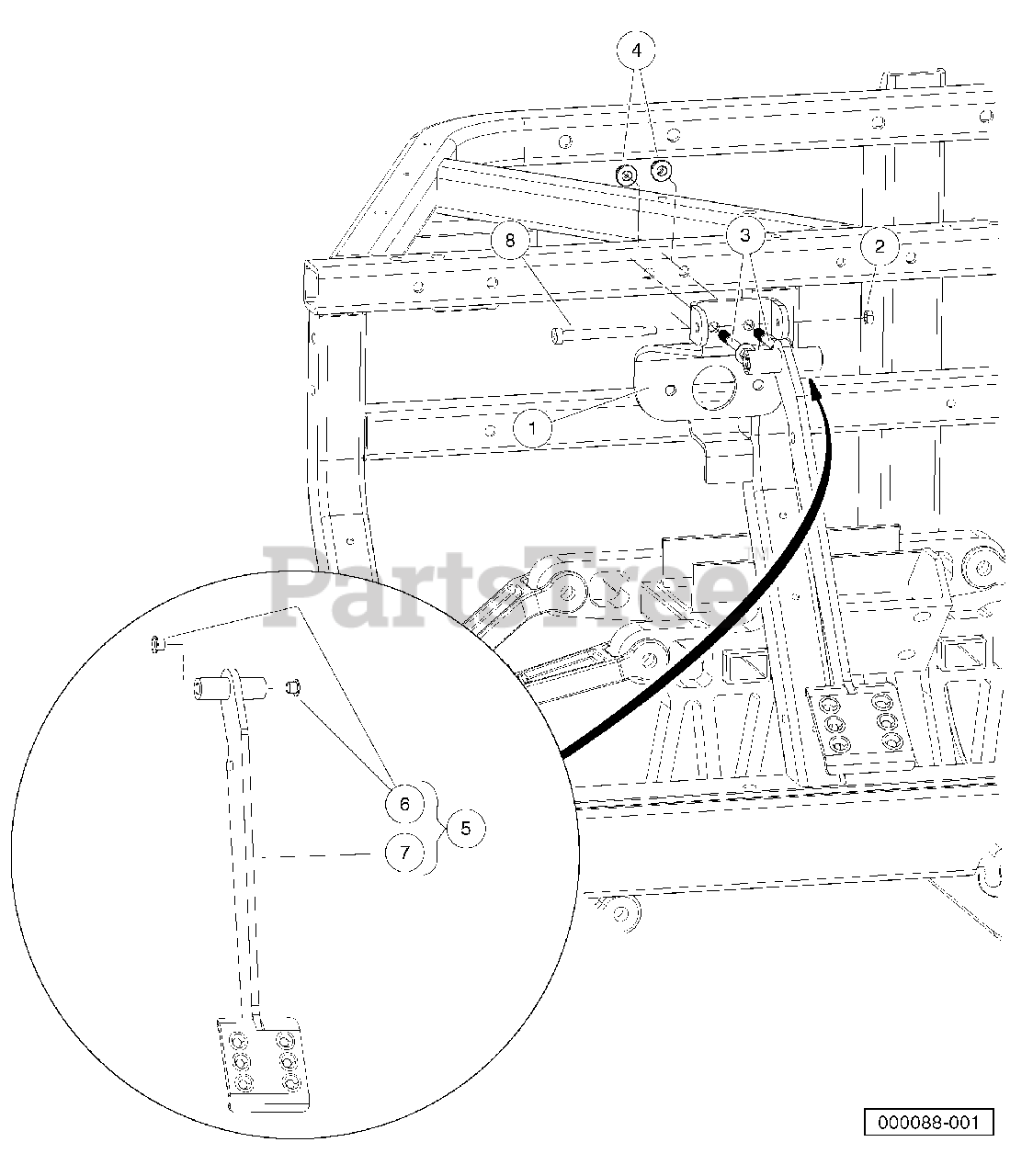

Brake Pedal Assembly Parts Diagram

  • Title
1

Husqvarna 102380601

Bracket, Pedal, Brake

$

$

Currently unavailable

2

Husqvarna 102618101

Nut M6x1 Mech Def Center

$

$

Currently unavailable

3

Husqvarna 102618301

Bolt Flanged Head, M8 X 1.25 X 65

$

$

Currently unavailable

4

Husqvarna 102618601

Lock Nut, Flg M8 X 1.25 Nylon

$

$

Currently unavailable

5

Husqvarna N/A

Asm, Pedal, Brake, Hung

Note: (includes items 6 and 7)

$

$

Not available

6

Husqvarna 102442901

Bushing, Greaseless

$

$

Currently unavailable

7

Husqvarna 102626201

Weldment, Pedal, Brake, Hung

$

$

Currently unavailable

8

Husqvarna 103273101

Bolt, Shoulder, M8 X 70, Hc

$

$

Currently unavailable
