HUV 4421 DXP - Husqvarna 4x4 Utility Vehicle, Diesel (2007-01) Fuel Tank - Diesel Vehicles Parts Diagram

4x4 Utility Vehicle, Diesel

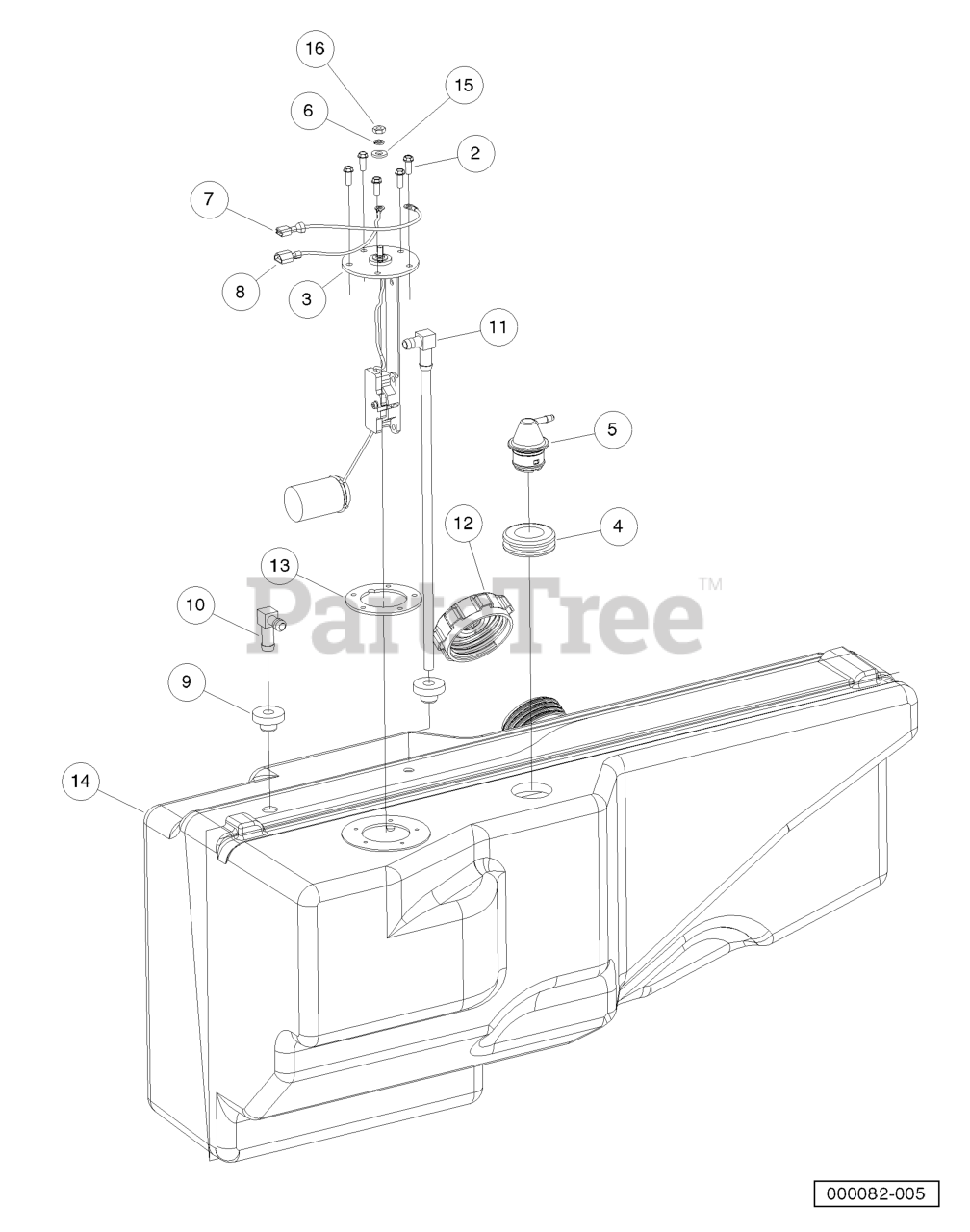

Fuel Tank - Diesel Vehicles Parts Diagram

  • Title

1

Husqvarna 603000949

ASM, TANK, DIESEL, SIDEFILL
(Superseded to 581766901)

Note: (includes items 2 through 16)

$

$

Not available

2

Husqvarna 603000173

SCREW

$

$

Not available

3

Husqvarna 603000174

FUEL GUAGE SENDING UNIT

Note: Must replace fuel sending unit gasket when servicing this component. p/n 603 00 30-57

$

$

Not available

4

Husqvarna 603000241

INSULATION GROMMET

$

$

Not available

5

Husqvarna 603000242

FUEL TANK VENT ASSY
(Superseded to 589258901)

$

$

Not available

6

Husqvarna 603000061

WASHER,#10 SPLIT WASH

$

$

Not available

7

Wire Asm, Blk, 170mm

$

$

Not available

8

Wire Asm, Org, 170mm

$

$

Not available

9

Husqvarna 603000951

BUSHING, LINE, RETURN

$

$

Not available

10

Husqvarna 603000952

ELBOW, 90 BARBED

$

$

Not available

11

Husqvarna 603001152

PICKUP TUBE, FUEL

$

$

Not available

12

Husqvarna 603001187

ASM, CAP, FUEL, DIESEL, PTD

$

$

Not available

13

Husqvarna 603003057

GASKET, SEND UNIT (RUBBER)

$

$

Not available

14

Tank, Fuel, Diesel, 4x4

$

$

Not available

15

Husqvarna 603000051

WASHER FLAT

$

$

Not available

16

Husqvarna 603000097

NUT, #10-32 BRASS HEX

$

$

Not available
