HUV 4421 DXP - Husqvarna 4x4 Utility Vehicle, Diesel (2008-01) Water Flange and Thermostat Parts Diagram

4x4 Utility Vehicle, Diesel

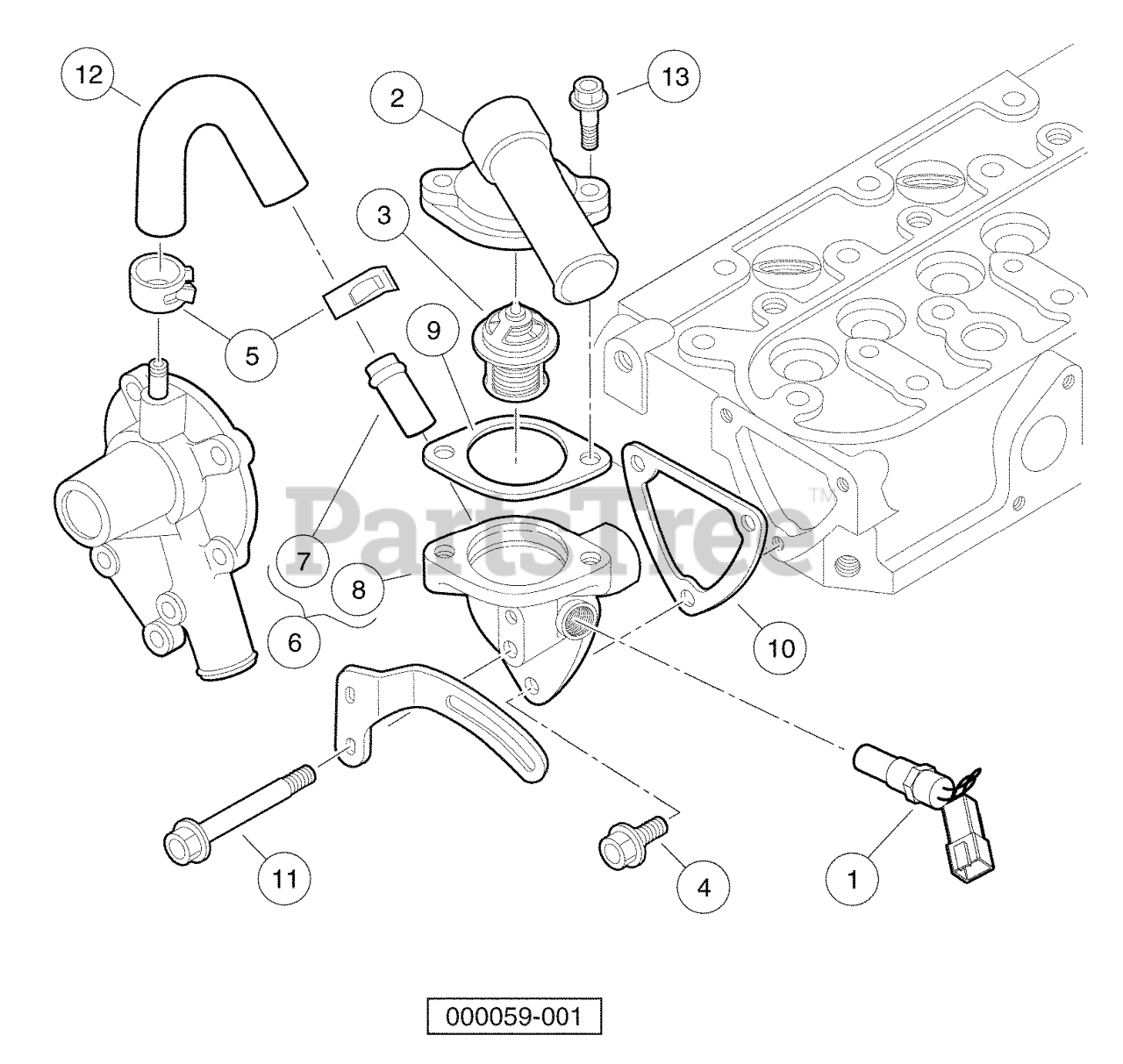

Water Flange and Thermostat Parts Diagram

  • Title

1

Husqvarna 603000963

SENSOR, COOLANT TEMP

$

$

Not available

2

Husqvarna 603001341

COVER, THERMOSTAT

$

$

Not available

3

Husqvarna 603001342

ASSY, THERMOSTAT

$

$

Not available

4

Husqvarna 603001343

BOLT, M6X1X20

$

$

Not available

5

Husqvarna 603001350

BAND, PIPE

$

$

Not available

6

Husqvarna 603001351

COMP, FLANGE WATER

$

$

Not available

7

Husqvarna 603001828

PIPE-BREATHER

Note: (includes items 7 and 8)

$

$

Not available

8

Flange, Water

$

$

Not available

9

Husqvarna 603001353

GASKET, THERMOSTAT

$

$

Not available

10

Husqvarna 603001460

GASKET, WATER FLANGE

$

$

Not available

11

Husqvarna 603001747

BOLT, ALT, D722, STAY LOWER

$

$

Not available

12

Husqvarna 603001748

PIPE, WATER RETURN, D722

$

$

Not available

13

Husqvarna 603001749

Bolt, D722, Thermostat Cover

$

$

Not available
