HUV 4421 G - Husqvarna 4x4 Utility Vehicle (2006-11) Carburetor Installation Kawasaki Gasoline Vehicles Parts Diagram

4x4 Utility Vehicle

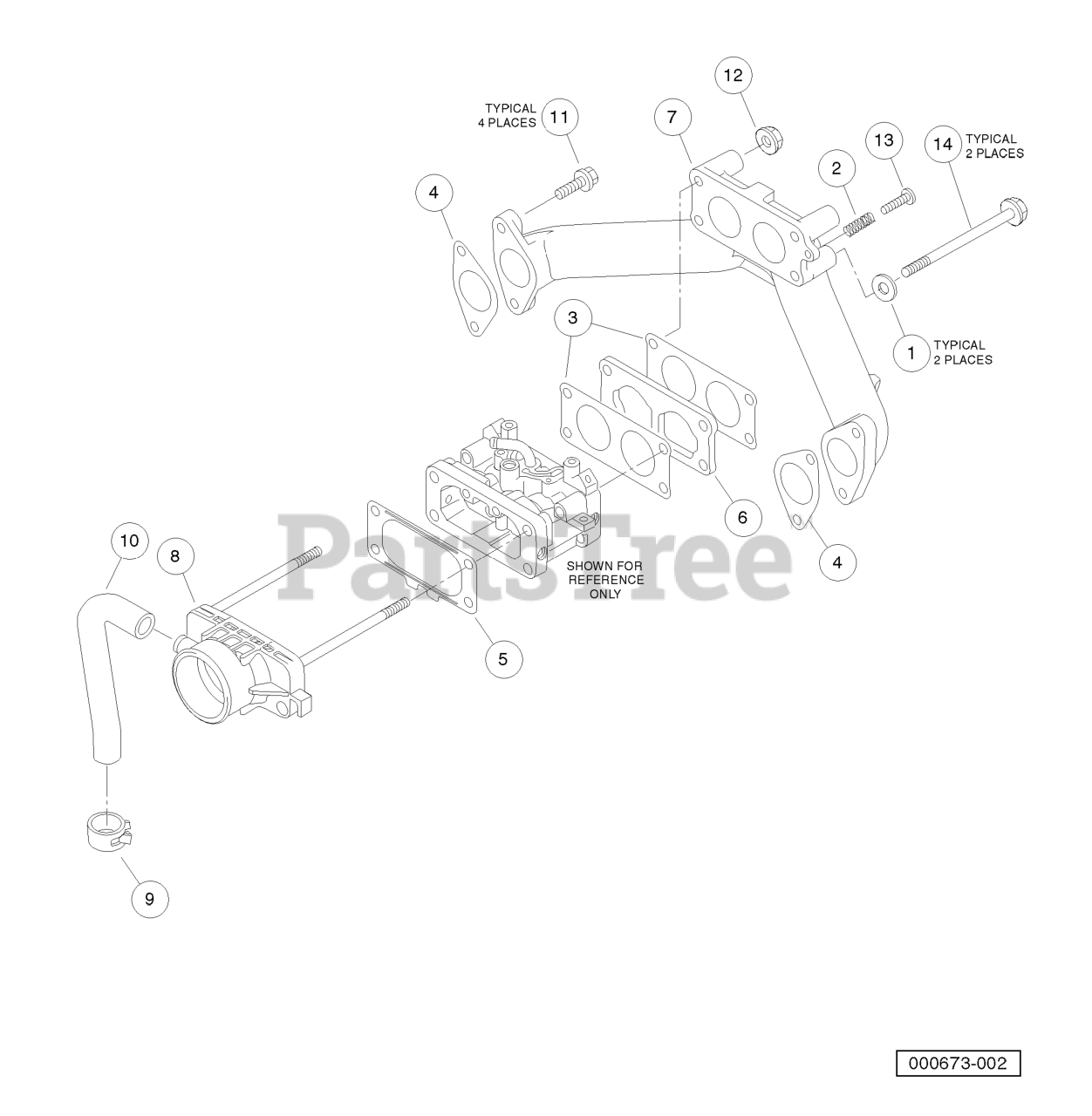

Carburetor Installation Kawasaki Gasoline Vehicles Parts Diagram

  • Title

1

Husqvarna 603000329

WASHER, M6 FLAT

$

$

Not available

2

Husqvarna 603003855

SPRING, FH

$

$

Not available

3

Husqvarna 603003853

GASKET, CARBURETOR, FH

$

$

Not available

4

Husqvarna 603003852

GASKET, MANIFOLD, FH

$

$

Not available

5

Husqvarna 603003851

GASKET, AIR FILTER, FH

$

$

Not available

6

Husqvarna 603003850

INSULATOR, MANIFOLD, FH

$

$

Not available

7

Husqvarna 603003849

MANIFOLD, INTAKE, FH

$

$

Not available

8

Husqvarna 603003832

PIPE, INTAKE ADAPTER, FH

$

$

Not available

9

Husqvarna 603003831

CLAMP, CRANKCASE VENT, FH

$

$

Not available

10

Husqvarna 603003830

TUBE, CRANKCASE VENT, FH

$

$

Not available

11

Husqvarna 603003820

BOLT, FLANGED, M6 X 20, KAW

$

$

Not available

12

Husqvarna 603003803

NUT, CARBURETOR, M6

$

$

Not available

13

Husqvarna 603003802

SCREW, CARBURETOR, M4 X 20

$

$

Not available

14

Husqvarna 603003801

BOLT, FLG, CARBURETOR, M6X105

$

$

Not available
