HUV 4421 G - Husqvarna 4x4 Utility Vehicle (2006-11) Facia and Fenders Parts Diagram

4x4 Utility Vehicle

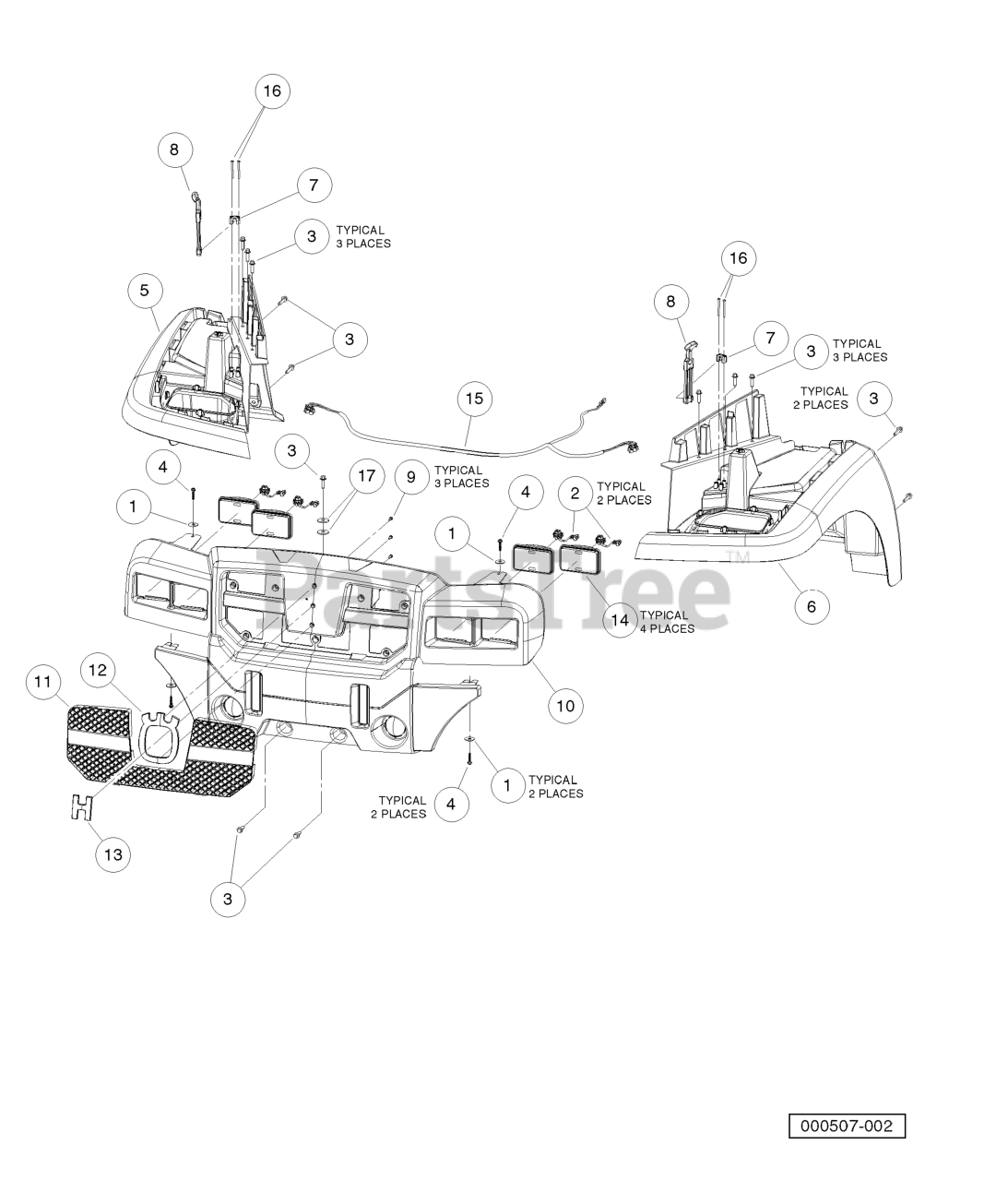

Facia and Fenders Parts Diagram

  • Title

1

Husqvarna 603003045

WASHER, 5/16 TYPE B FLAT

$

$

Not available

2

Husqvarna 603000625

CONNECTOR HARNESS ASSY, HDLGHT

$

$

Not available

3

Husqvarna 603000869

SCREW-M8 X 1.25 30, TRI, HX F

$

$

Not available

4

Husqvarna 603003443

SCREW,M6,TORX,INTERLOCK,THREAD

$

$

Not available

5

Husqvarna 603003397

FENDER FRONT. PASS, AWD

$

$

Not available

6

Husqvarna 603003398

FENDER, FRONT, DRV, AWD

$

$

Not available

7

Husqvarna 603003399

BKT, LATCH, DRAW

$

$

Not available

8

Husqvarna 531308259

LATCH, DRAW, HOOD

$

$

Not available

9

Husqvarna 531308175

SCREW, D50X16, TORX PN HD PT

$

$

Not available

10

Husqvarna 603003589

FASCIA, HUSQVARNA

$

$

Not available

11

Husqvarna 603003400

GRILL, HUSQVARNA

$

$

Not available

12

Husqvarna 603003401

EMBLEM, HUSQVARNA, OUTER

$

$

Not available

13

Husqvarna 603003402

EMBLEM, HUSQVARNA, INNER

$

$

Not available

14

Husqvarna 603003403

HEADLAMP, 3X5 RECTANGULAR

$

$

Not available

15

Husqvarna 531308379

HARNESS, BCT/HUV RESTYLE HDLT

$

$

Not available

16

Husqvarna 531308392

SCREW, #8X2.00 AB THD, HEX HD

$

$

Not available

17

Husqvarna 603003617

WASHER, 3/8 TYPE B FLAT

$

$

Not available
