HUV 4421 G - Husqvarna 4x4 Utility Vehicle (2006-11) Governor Arm and Springs Parts Diagram

4x4 Utility Vehicle

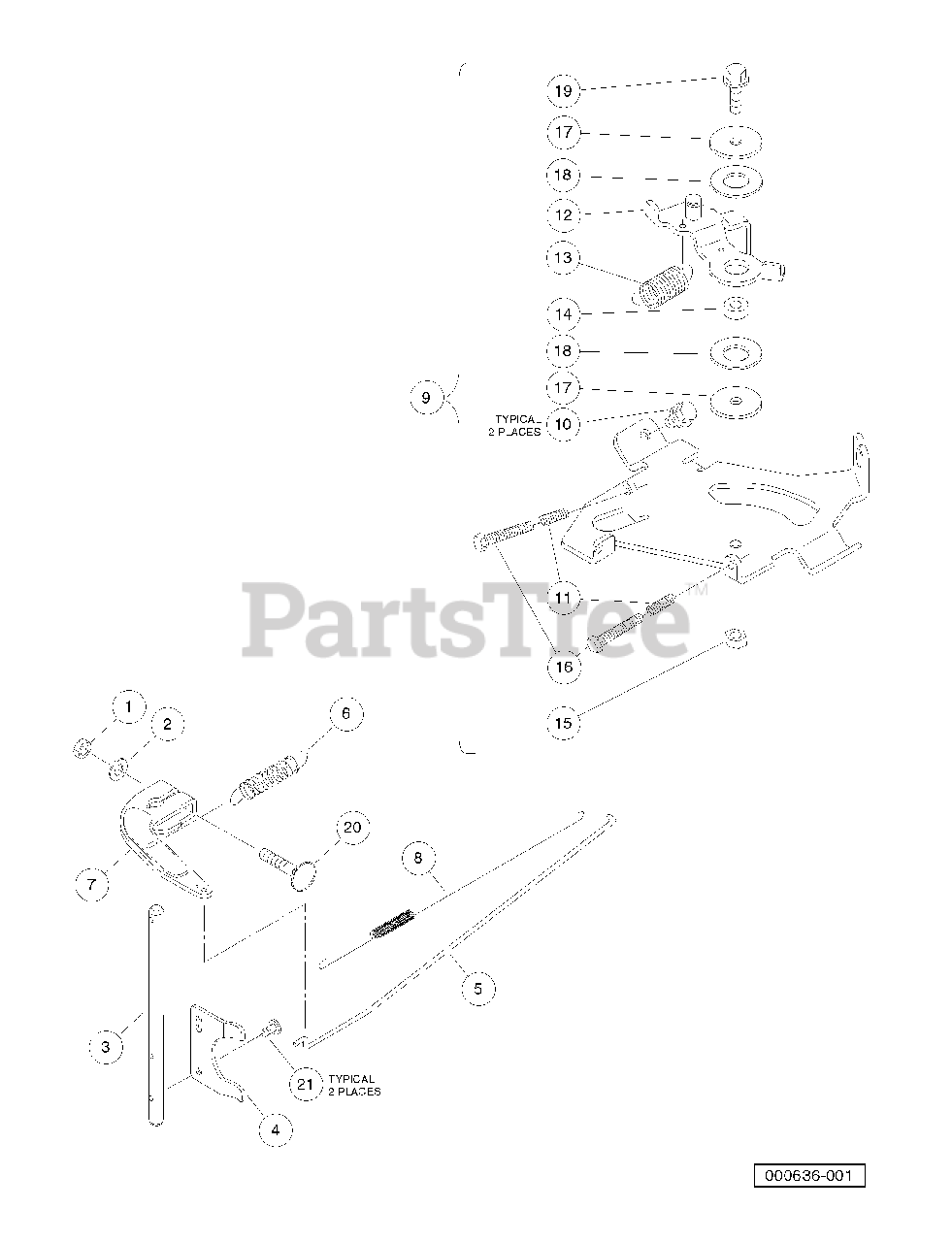

Governor Arm and Springs Parts Diagram

  • Title
1

$

$

Not available

2

Husqvarna 603000329

Washer, M6 Flat

$

$

Not available

3

Husqvarna 603003860

Shaft, Governor, Fh

$

$

Not available

4

Husqvarna 603003859

Plate, Governor, Fh

$

$

Not available

5

Husqvarna 603003858

Link, Arm, Governor, Fh

$

$

Not available

6

Husqvarna 603003857

Spring, Governor, Fh

$

$

Not available

7

Husqvarna 603003856

Arm, Governor, Shaft

$

$

Not available

8

Husqvarna 603003854

Spring, Arm, Governor, Fh

$

$

Not available

9

Husqvarna 603003826

Panel, Control, Complete, Fh

Note: (includes items 10 through 19)

$

$

Not available

10

Husqvarna 603003928

Bolt, Flg, M6 X 1.0 X 12

$

$

Not available

11

Husqvarna 603003855

Spring, Fh

$

$

Not available

12

Husqvarna 603003829

Lever, Governor, Control, Fh

$

$

Not available

13

Husqvarna 603003828

Spring, Governor Return, Fh

$

$

Not available

14

Husqvarna 603003827

Collar, Governor, Fh

$

$

Not available

15

Husqvarna 603003825

Nut, Governor, Fh

$

$

Not available

16

Husqvarna 603003824

Bolt, Speed Control, Fh

$

$

Not available

17

Husqvarna 603003822

Washer, Governor, Lower, Fh

$

$

Not available

18

Husqvarna 603003821

Washer, Governor, Middle, Fh

$

$

Not available

19

Husqvarna 603003820

Bolt, Flanged, M6 X 20, Kaw

$

$

Not available

20

Husqvarna 603003823

Bolt, M6 X 35, Kawasaki

$

$

Not available

21

Husqvarna 603003819

Screw, Pan, Governor, Fh

$

$

Not available
