HUV 4421 G - Husqvarna 4x4 Utility Vehicle (2006-11) Seat Belts and Lower Rops Parts Diagram

4x4 Utility Vehicle

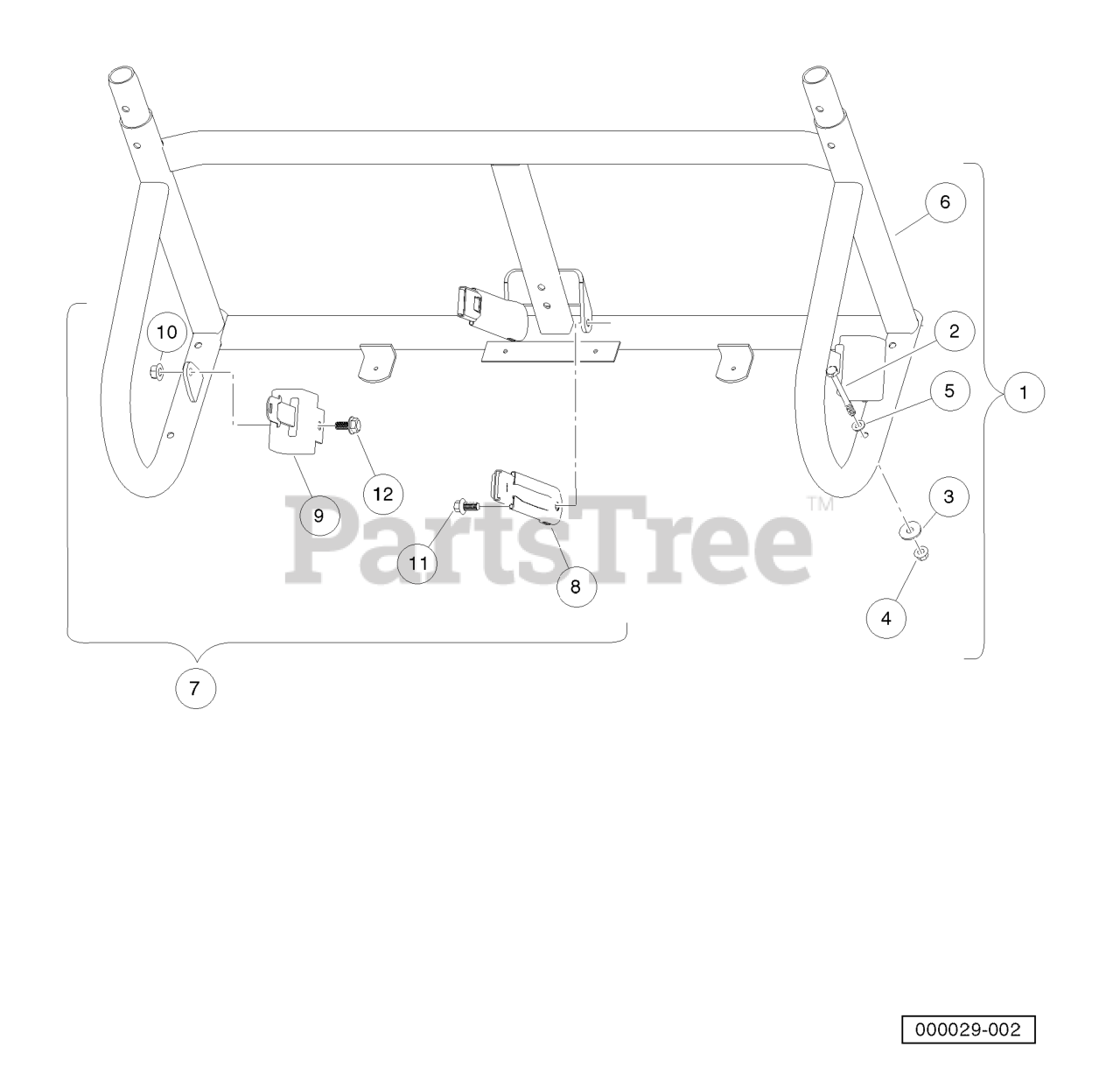

Seat Belts and Lower Rops Parts Diagram

  • Title

1

Instl, Rops, Lower

Note: (includes items 2 through 6)

$

$

Not available

2

Husqvarna 603001759

BOLT, M10 X 100, ZN-NI/BLK

Note: (Black)

$

$

Not available

3

Husqvarna 603001174

WASHER HARD, M10

$

$

Not available

4

Husqvarna 603001300

NUT FLG M10 X 1.5 MECH DEF

$

$

Not available

5

Husqvarna 603001673

WASHER, HARD, M10, ZN-NI/BLK

$

$

Not available

6

Husqvarna 603004409

WELDMENT,SEAT SUPPORT,HS,ROPS

$

$

Not available

7

Instl, Seat Belt, Restyle

Note: (includes items 8 through 12)

$

$

Not available

8

Husqvarna 603001065

BUCKLE, SEAT BELT W/ SLEEVE

$

$

Not available

9

Husqvarna 603001066

RETRACTOR, SEAT BELT
(Superseded to 603001065)

$

$

Not available

10

Husqvarna 603003472

LN FLG, M12 X 1.75, MD, BLACK

$

$

Not available

11

Husqvarna 603001589

SCREW,M12X1.75X30 THD FORM BLK

$

$

Not available

12

Husqvarna 531308398

BOLT FLG, M12X1.75 X 25 BLACK

$

$

Not available
