HUV 4421 G - Husqvarna 4x4 Utility Vehicle (2007-01) Bench Seats Parts Diagram

4x4 Utility Vehicle

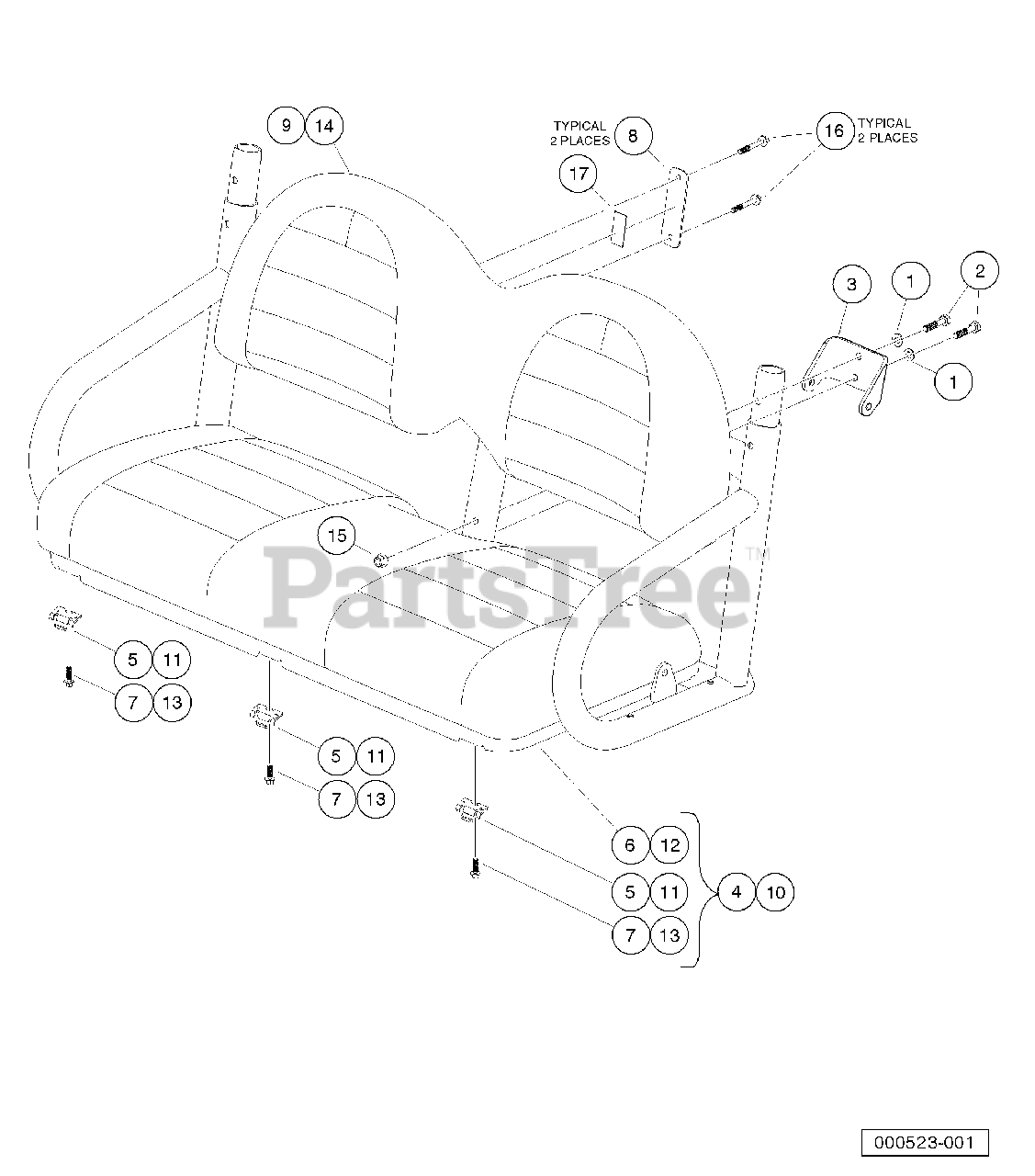

Bench Seats Parts Diagram

  • Title

1

Husqvarna 603001673

Washer, Hard, M10, Zn-Ni/Blk

$

$

Not available

2

Husqvarna 603001760

Bolt, M10 X 45, Zn-Ni

Note: (Black)

$

$

Not available

3

Husqvarna 531308118

Bracket, Seat Belt, Bench

$

$

Not available

4

Husqvarna 531308123

Asm, Seat Bottom, Bench, Gray
(Superseded to 574503301)

Note: (includes items 5 through 7)

$

$

Not available

5

Husqvarna 603000125

Hinge Plate

$

$

Not available

6

Asm, Seat Bottom, Bench

$

$

Not available

7

Husqvarna 603003457

Bolt Flg Blk, M8 X 25, Loctite

$

$

Not available

8

Husqvarna 531308121

Bracket, Seat Back, AWD

$

$

Not available

9

Husqvarna 531308120

Seat Back, Bench, Gray
(Superseded to 574503301)

$

$

Not available

10

Husqvarna 603003458

Asm, Seat Bottom, Bench, Black
(Superseded to 574503701)

Note: (includes items 11 through 13)

$

$

Not available

11

Husqvarna 603000125

Hinge Plate

$

$

Not available

12

Husqvarna 603003456

Seat Bottom, Bench, Black

$

$

Currently unavailable

13

Husqvarna 603003457

Bolt Flg Blk, M8 X 25, Loctite

$

$

Not available

14

Husqvarna 603003459

Seat Back, Bench, Black

$

$

Not available

15

Husqvarna 603003475

Nut, Flanged, M10 x 1.5, Black

$

$

Not available

16

Husqvarna 531307417

Bolt Flg Blk, M8 X 55, Loctite

$

$

Not available

17

Husqvarna 603003461

Tape, Double-Sided, VHB, 1"x 2"

$

$

Currently unavailable
