HUV 4421 G - Husqvarna 4x4 Utility Vehicle (2007-01) Fascia and Fenders Parts Diagram

4x4 Utility Vehicle

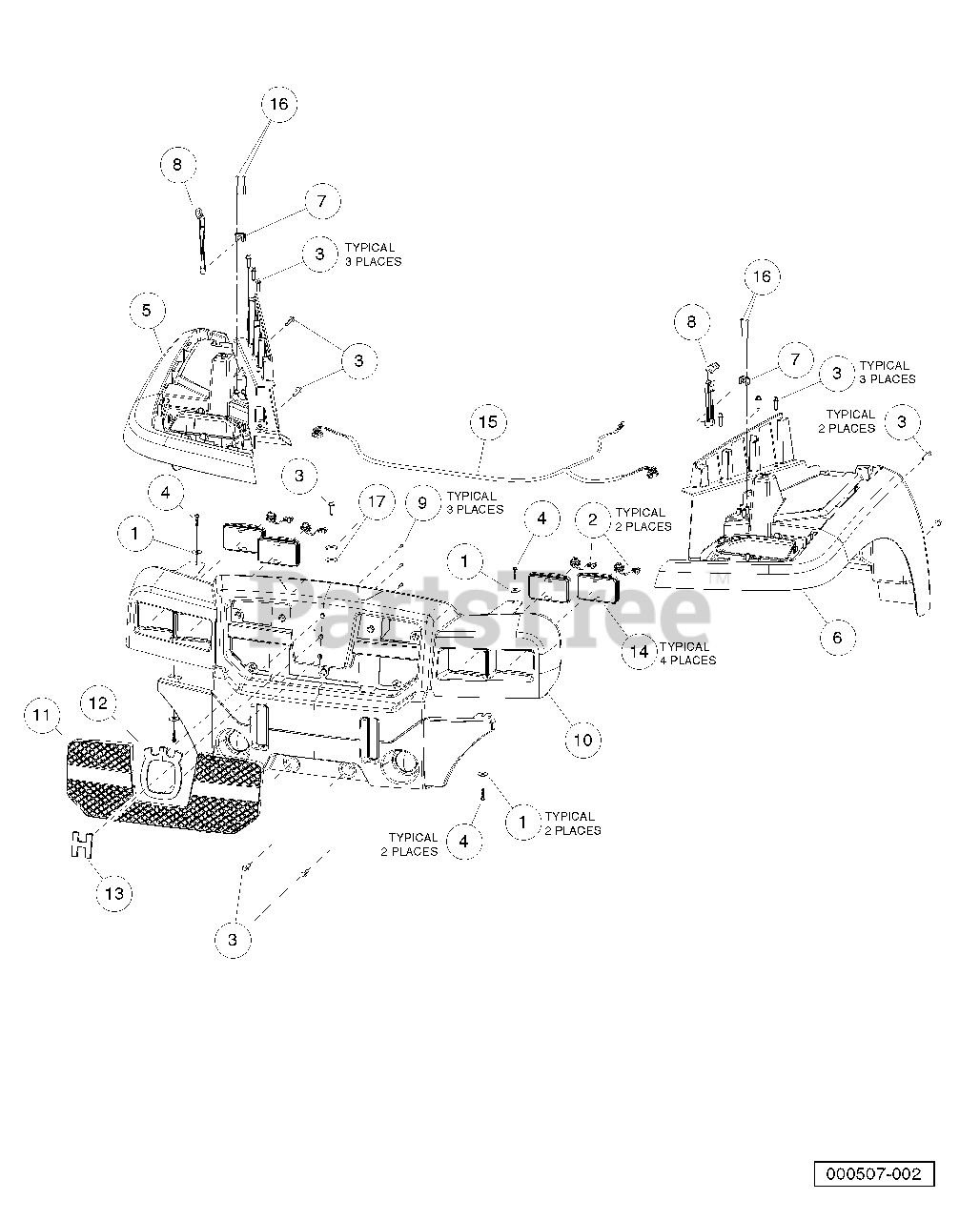

Fascia and Fenders Parts Diagram

  • Title

1

Husqvarna 603003045

Washer, 5/16 Type B Flat

$

$

Not available

2

Husqvarna 603000625

Connector Harness Assembly, Headlight

$

$

Not available

3

Husqvarna 603000869

Screw, M8X1.25X30, Hex

$

$

Not available

4

Husqvarna 603003443

Screw,m6,torx,interlock,thread

$

$

Not available

5

Husqvarna 603003397

Fender, Front, Pass, AWD

$

$

Not available

6

Husqvarna 603003398

Fender, Front, Drv, AWD

$

$

Not available

7

Husqvarna 603003399

Bracket, Latch, Draw

$

$

Not available

8

Husqvarna 531308259

Latch, Draw, Hood

$

$

Not available

9

Husqvarna 531308175

Screw, D50x16, Torx PN Hd PT

$

$

Not available

10

Husqvarna 603003589

Fascia, Husqvarna

$

$

Not available

11

Husqvarna 603003400

Grill, Husqvarna

$

$

Not available

12

Husqvarna 603003401

Emblem, Husqvarna, Outer

$

$

Not available

13

Husqvarna 603003402

Emblem, Husqvarna, Inner

$

$

Not available

14

Husqvarna 603003403

Headlamp, 3x5 Rectangular

$

$

Not available

15

Husqvarna 531308379

Harness, Bct/huv Restyle Headlight

$

$

Not available

16

Husqvarna 531308392

Screw, #8x2.00 AB Thd, Hex Hd

$

$

Not available

17

Husqvarna 603003617

Washer, 3/8 Type B Flat

$

$

Not available
