HUV 4421 G - Husqvarna 4x4 Utility Vehicle (2007-01) Front Suspension - A-ARMS Parts Diagram

4x4 Utility Vehicle

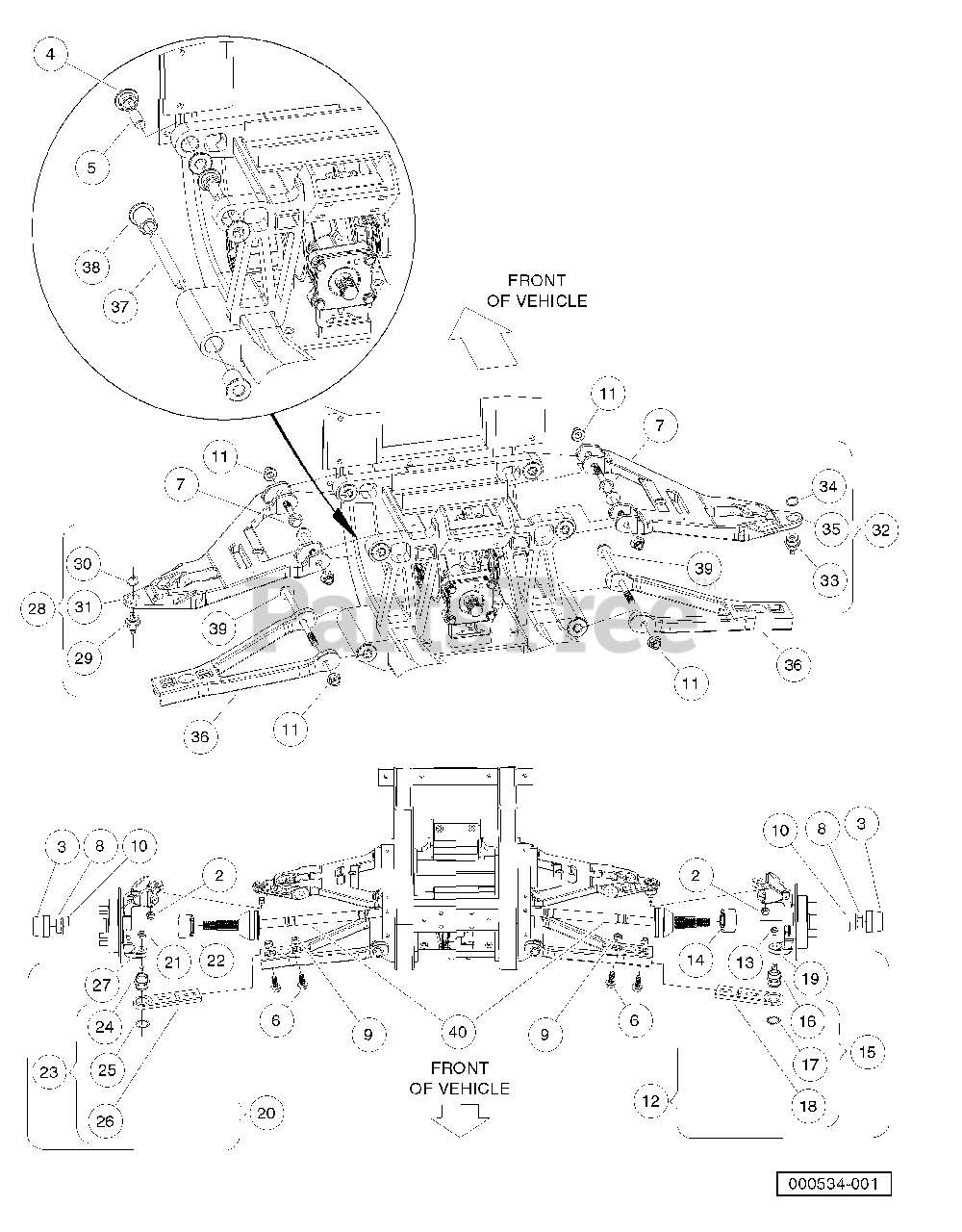

Front Suspension - A-ARMS Parts Diagram

  • Title

1

Suspension, AWD, Wide

Note: (includes items 2 through 40)

$

$

Not available

2

Husqvarna 603000684

Locknut, M12-1.25 Nylon

$

$

Not available

3

Husqvarna 603000866

Center Cap, Rubber

$

$

Not available

4

Husqvarna 603000956

Bushing, A-Arm

$

$

Not available

5

Husqvarna 603001022

Sleeve, Upper

$

$

Not available

6

Husqvarna 603001170

Bolt, Flange Head, M12x 1.75x 30 with Loctite

$

$

Not available

7

Husqvarna 603001292

Bolt, Flange Head, M12 X 1.75 X 70

$

$

Not available

8

Husqvarna 603001302

Nut Flg, M22 X 1.5 Mech Def

$

$

Not available

9

Husqvarna 603001303

Nut, Square, M12x 1.75

$

$

Not available

10

Husqvarna 603001304

Washer Hard, M22

$12.99

$

In Stock, only 1 left!

0

11

Husqvarna 603001312

Nut Flg, M12x1.75, Nylon Gr 10

$

$

Not available

12

Husqvarna 603003533

Upright, Left-Hand

Note: (includes items 13 through 19)

$

$

Not available

13

Husqvarna 603000684

Locknut, M12-1.25 Nylon

$

$

Not available

14

Husqvarna 603001123

Bearing

$

$

Not available

15

Husqvarna 603003535

Asm, Adjuster, Slide

Note: (includes items 16 through 18)

$

$

Not available

16

Husqvarna 603000891

Joint, Ball

$

$

Not available

17

Husqvarna 603001684

Ring, Retaining, Ext, 1-1/4"

$5.49

$

In Stock, Qty 9

0

18

Husqvarna 603003534

Slide, Adjuster
(Superseded to 603003535)

$

$

Not available

19

Husqvarna 603003532

Upright, Left, 40 X 74 X 40
(Superseded to 603003533)

$

$

Not available

20

Husqvarna 603003537

Upright, Right-Hand

Note: (includes items 21 through 27)

$

$

Not available

21

Husqvarna 603000684

Locknut, M12-1.25 Nylon

$

$

Not available

22

Husqvarna 603001123

Bearing

$

$

Not available

23

Husqvarna 603003535

Asm, Adjuster, Slide

Note: (includes items 24 through 26)

$

$

Not available

24

Husqvarna 603000891

Joint, Ball

$

$

Not available

25

Husqvarna 603001684

Ring, Retaining, Ext, 1-1/4"

$5.49

$

In Stock, Qty 9

0

26

Husqvarna 603003534

Slide, Adjuster
(Superseded to 603003535)

$

$

Not available

27

Husqvarna 603003536

Upright, Right, 40 X 74 X 40
(Superseded to 603003537)

$

$

Not available

28

Husqvarna 603003538

Asm, A-Arm, Upper, Left

Note: (includes items 29 through 31)

$

$

Not available

29

Husqvarna 603000891

Joint, Ball

$

$

Not available

30

Husqvarna 603001684

Ring, Retaining, Ext, 1-1/4"

$5.49

$

In Stock, Qty 9

0

31

Husqvarna 531308389

Arm, Upper, Wide, Machined, Lh

$

$

Not available

32

Husqvarna 603003539

Asm, A-arm, Upper, Right

Note: (includes items 33 through 35)

$

$

Not available

33

Husqvarna 603000891

Joint, Ball

$

$

Not available

34

Husqvarna 603001684

Ring, Retaining, Ext, 1-1/4"

$5.49

$

In Stock, Qty 9

0

35

Husqvarna 531308375

Arm, Upper, Wide, Machined,rh

$

$

Not available

36

Husqvarna 603003541

A-Arm, Lower

$

$

Not available

37

Husqvarna 603003542

Sleeve, Lower Arm

$65.99

$

In Stock, only 4 left!

0

38

Husqvarna 603003543

Bushing, Lower Arm

$

$

Not available

39

Husqvarna 603003544

Bolt Flg, M12 X 1.75 X 200 10

$

$

Not available

40

Husqvarna 603004131

Half Shaft, Wide, Awd
(Superseded to 603003540)

$

$

Not available
