HUV 4421 G - Husqvarna 4x4 Utility Vehicle (2007-01) Kawasaki FH680D Gasoline Engine Mounting Parts Diagram

4x4 Utility Vehicle

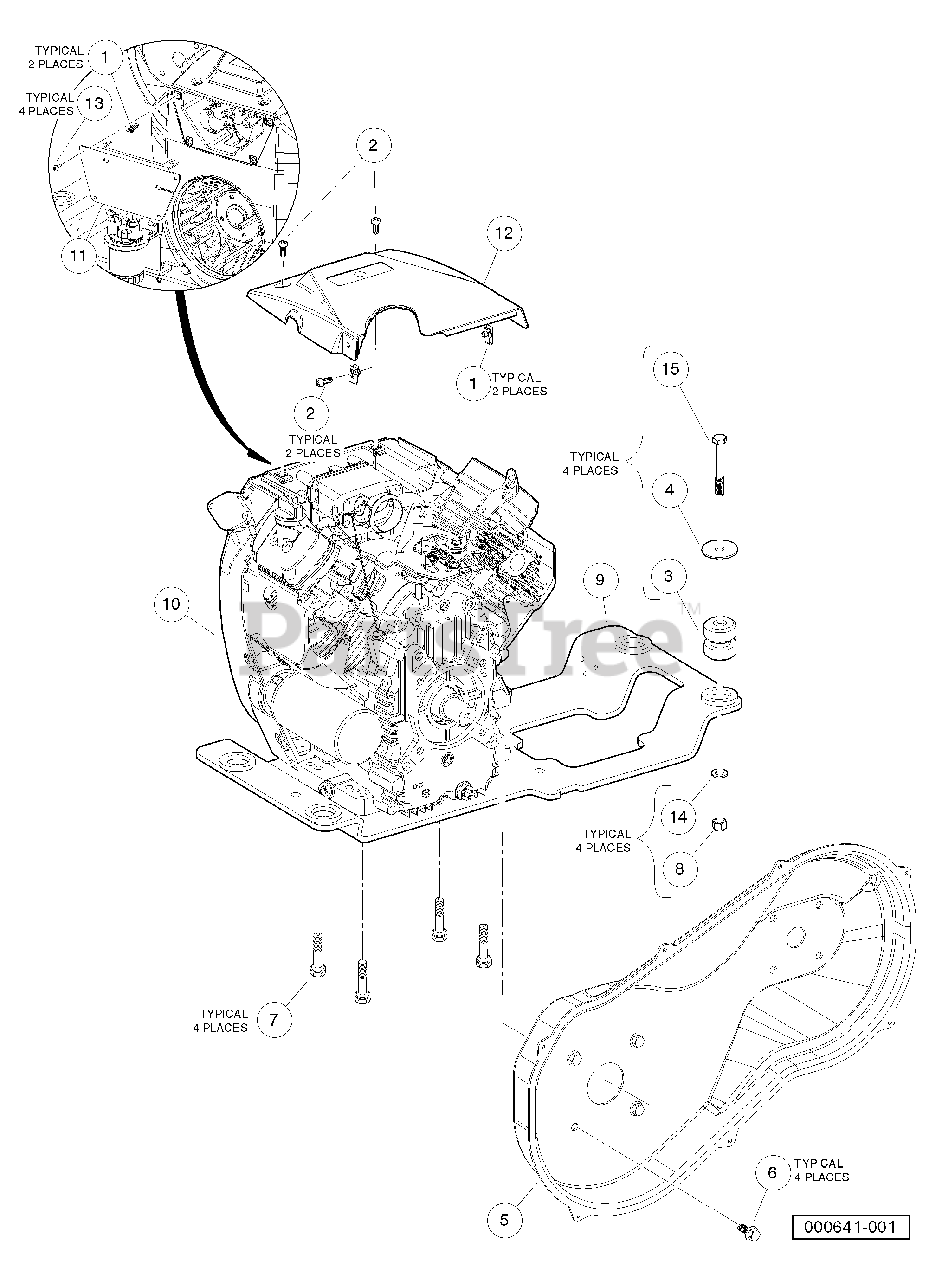

Kawasaki FH680D Gasoline Engine Mounting Parts Diagram

  • Title

1

Husqvarna 603003961

U-nut, M6-1.0 Prev Torque

$

$

Not available

2

Husqvarna 603003960

Screw, M6 Torx Bttn Hd Sems

$

$

Not available

3

Husqvarna 603000908

Isolator Ring and Bushing

$

$

Not available

4

Husqvarna 603000909

Washer, Snubbing, Ring N Bush

$

$

Not available

5

Husqvarna 603003959

Cover, CVT Inner, FH680D

$

$

Currently unavailable

6

Husqvarna 603001171

Bolt Flanged Head, 3/8-16x1.0 with Loctite

$

$

Not available

7

Husqvarna 603001603

Bolt, Flange Head, M10x 1.5 X 40 with Loctite

$

$

Not available

8

Husqvarna 603000439

Locknut, M12x1.75 Nylon Insert

$

$

Not available

9

Husqvarna 603003955

Weldment, Eng Mnt, Kaw, Fh680d

$

$

Not available

10

Husqvarna 603003950

Engine, Kawasaki, FH680D

$

$

Not available

11

Husqvarna 603003845

Engine, Front Cover, Fh680d

$

$

Not available

12

Husqvarna 603003842

Cover, Engine, Top

$

$

Not available

13

Husqvarna 603003833

Screw, Pn Hd Blk, 10-16 X .625

$

$

Not available

14

Husqvarna 603000437

Washer, M12 Hard
(Superseded to 603000447)

$

$

Not available

15

Husqvarna 603000440

Bolt, M12 X 1.75 X 90

$

$

Not available
