HUV 4421 G - Husqvarna 4x4 Utility Vehicle (2007-01) Kawasaki FH680D Gasoline Engine Mounting Parts Diagram

4x4 Utility Vehicle

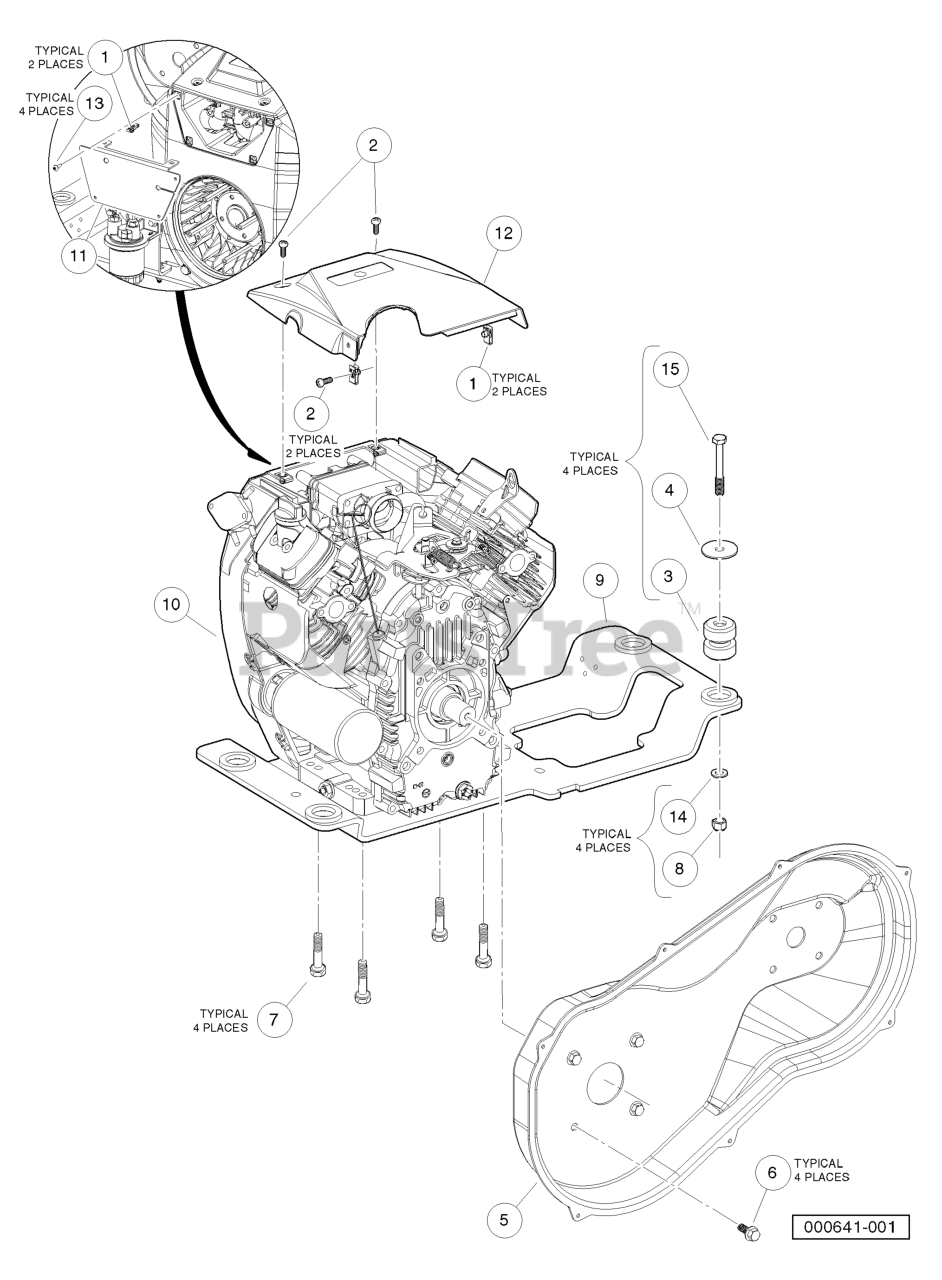

Kawasaki FH680D Gasoline Engine Mounting Parts Diagram

  • Title

1

Husqvarna 603003961

U-NUT M6-1.0 PREV TORQUE

$

$

Not available

2

Husqvarna 603003960

SCREW, M6 TORX BTTN HD SEMS

$

$

Not available

3

Husqvarna 603000908

ISOLATOR, RING AND BUSHING

$

$

Not available

4

Husqvarna 603000909

WASHER, SNUBBING, RING N BUSH

$

$

Not available

5

Husqvarna 603003959

Cover, CVT Inner, FH680D

$

$

Currently unavailable

6

Husqvarna 603001171

BOLT FLG, 3/8-16X1.0 LOCTITE

$

$

Not available

7

Husqvarna 603001603

BOLT

$

$

Not available

8

Husqvarna 603000439

LOCKNUT, M12X1.75 NYLON INSERT

$

$

Not available

9

Husqvarna 603003955

WELDMENT ENGINE KAW. FH680D

$

$

Not available

10

Husqvarna 603003950

ENGINE FH680D WAS 102960201

$

$

Not available

11

Husqvarna 603003845

ENGINE FRONT COVER

$

$

Not available

12

Husqvarna 603003842

COVER, ENGINE TOP

$

$

Not available

13

Husqvarna 603003833

SCREW 10-16 X .625

$

$

Not available

14

Husqvarna 603000437

WASHER, M12 HARD
(Superseded to 603000447)

$

$

Not available

15

Husqvarna 603000440

BOLT, M12 X 1.75 X 90

$

$

Not available
