HUV 4421 G - Husqvarna 4x4 Utility Vehicle (2007-01) Park Brake System Parts Diagram

4x4 Utility Vehicle

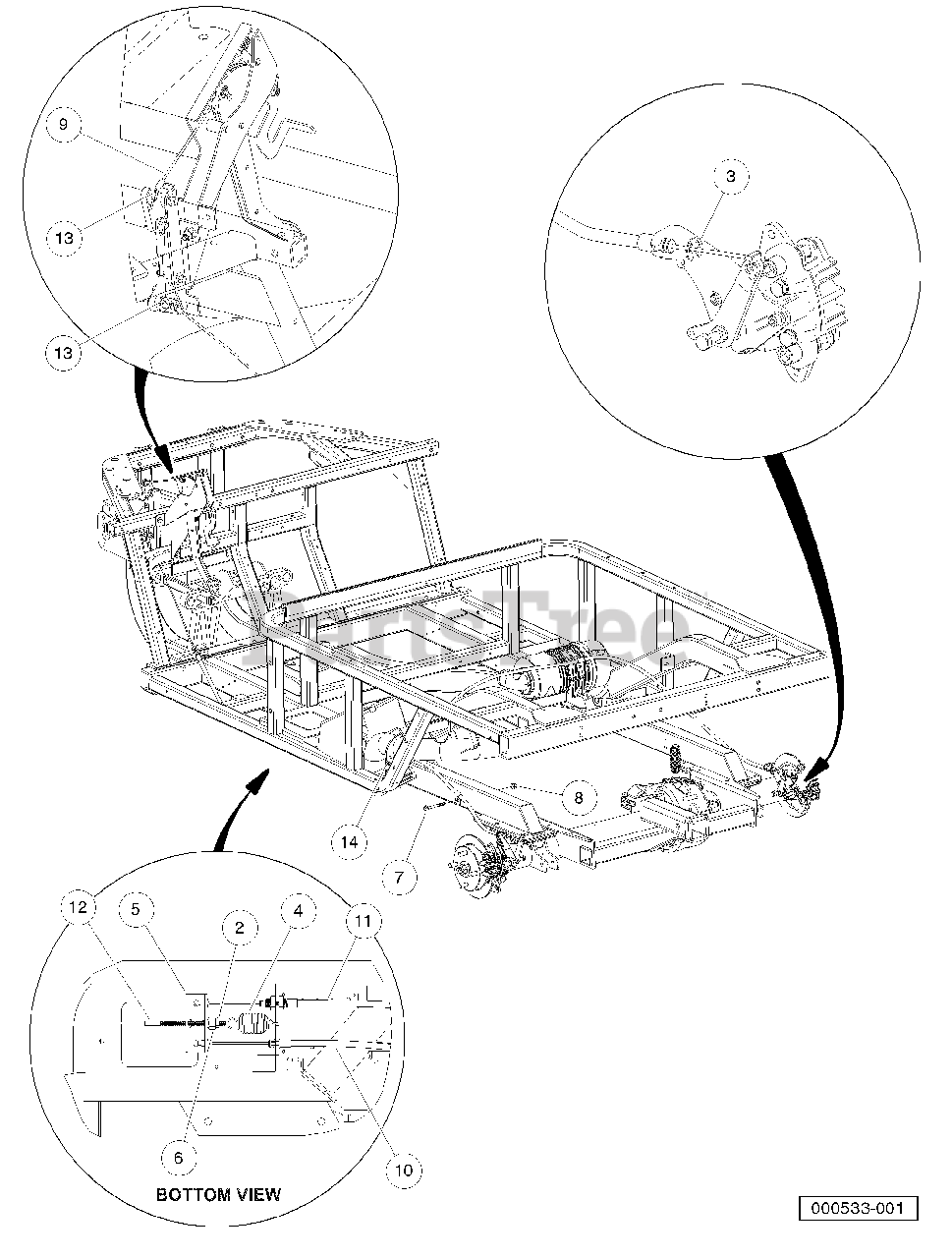

Park Brake System Parts Diagram

  • Title

1

Instl, Brake, Park, AWD

Note: (includes items 2 through 14)

$

$

Not available

2

Husqvarna 603000109

Nut, 5/16-24 Hex

$

$

Not available

3

Husqvarna 603000130

E-Clip, 1/2

$2.49

$

In Stock, only 2 left!

0

4

Husqvarna 603000175

Spring, Brake Return

$

$

Not available

5

Husqvarna 603000632

Equalizer Bracket

$

$

Not available

6

Husqvarna 603000766

Nut, 5/16-24 Hex Cone

$

$

Not available

7

Husqvarna 603001306

Bolt Flanged Head, M8 X 1.25 X 65

$

$

Not available

8

Husqvarna 603001308

Lock Nut, Flg M8 X 1.25 Nylon

$

$

Not available

9

Husqvarna 531307109

Cable, Crank, Bell, Front

$

$

Not available

10

Husqvarna 603002924

Cable, Noncoated, Pbrake, Left

$

$

Not available

11

Husqvarna 603002925

Cable, Noncoated, Pbrake, Rght

$

$

Not available

12

Husqvarna 531308288

Cable, Crank, Bell, Main

$

$

Not available

13

Husqvarna 603000063

Pin, 3/32 X 1.00 Sq Cut Cotter

$

$

Not available

14

Husqvarna 603000093

Tie Wrap, 11" Nylon

$

$

Not available
