HUV 4421 G - Husqvarna 4x4 Utility Vehicle (2008-01) Fuel System - Kawaski Gasoline Vehicles Parts Diagram

4x4 Utility Vehicle

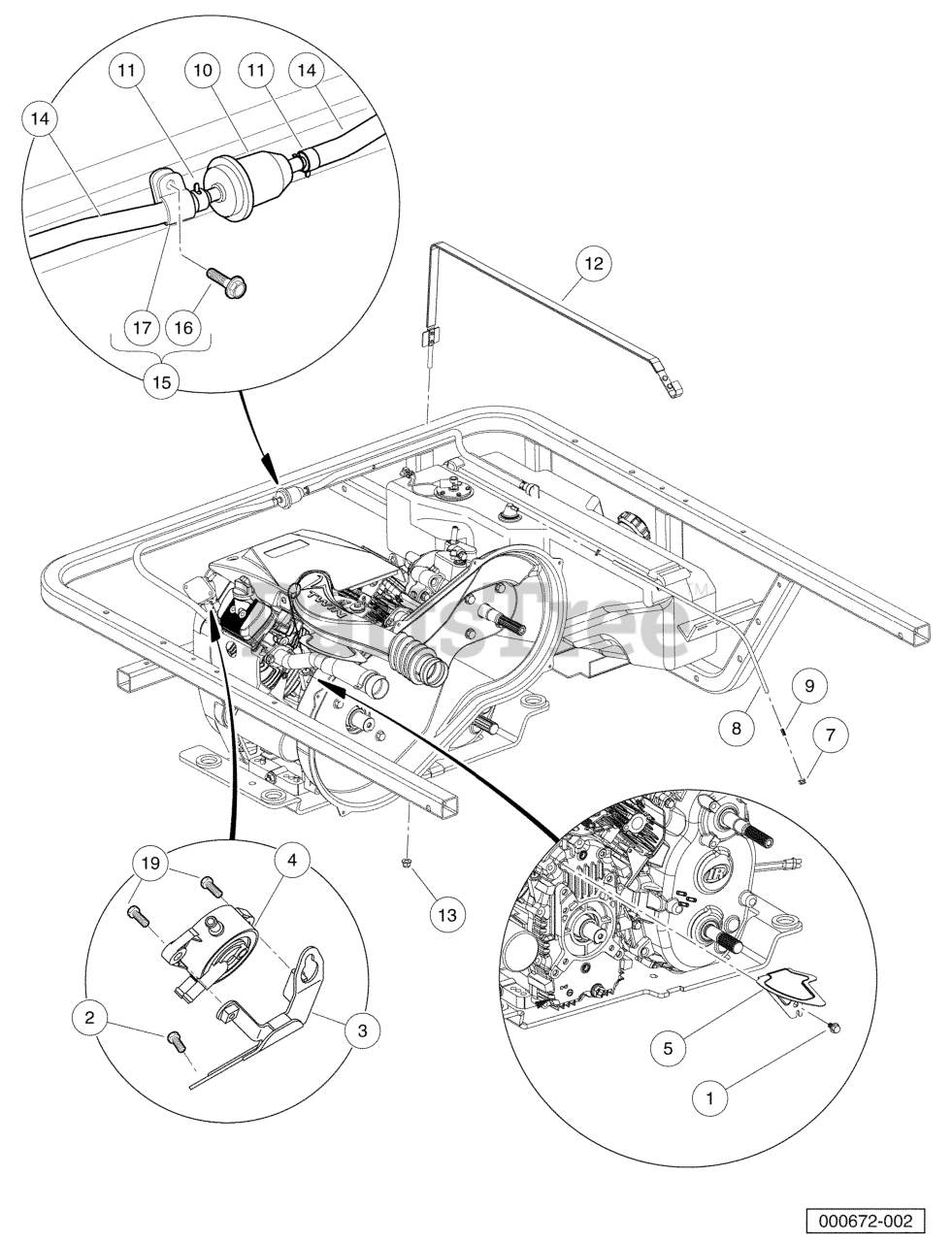

Fuel System - Kawaski Gasoline Vehicles Parts Diagram

  • Title

1

Husqvarna 603001315

BOLT FLG, M8X1.25X16 LOCTITE

$

$

Not available

2

Husqvarna 603003927

BOLT, FLG, M6 X 1.0 X 16

$

$

Not available

3

Husqvarna 603004028

BRACKET, FUEL PUMP, FH

$

$

Not available

4

Husqvarna 603004029

PUMP, FUEL, IMPULSE, FH

$

$

Not available

5

Husqvarna 603004070

HEAT SHIELD, HEADER, GAS

$

$

Not available

6

Instl, Fuel System, Fh680d

Note: (includes items 7 through 15)

$

$

Not available

7

Husqvarna 603000185

CLAMP

$

$

Not available

8

Husqvarna 603000465

TUBE, CARBURETOR AIR VENT

$

$

Not available

9

Husqvarna 603000503

VENT BARB

$

$

Not available

10

Husqvarna 603000008

FILTER FUEL 30 MICRON

$

$

Not available

11

Husqvarna 603000968

CLAMP, HOSE, CTB 13MM

$

$

Not available

12

Husqvarna 603001000

STRAP, TANK, FUEL

$

$

Not available

13

Husqvarna 603001308

LOCK NUT, FLG M8 X 1.25 NYLON

$

$

Not available

14

Husqvarna 531309542

HOSE, FUEL, 1/4SAEJ1737 BULK

$

$

Not available

15

Husqvarna 603004425

KIT, FUEL LINE CLAMP, 4X4 KHI

Note: (includes items 16 through 18)

$

$

Not available

16

Husqvarna 603000869

SCREW-M8 X 1.25 30, TRI, HX F

$

$

Not available

17

P-clamp, Insulated 0.625 In

$

$

Not available

18

Husqvarna 603004500

Instr, Kit Fuel Line 4x4 Khi

$

$

Currently unavailable

19

Husqvarna 603003820

BOLT, FLANGED, M6 X 20, KAW

$

$

Not available
