HUV 4421 GXL - Husqvarna 4x4 Utility Vehicle (2009-01) Bucket Seats - Gray Parts Diagram

4x4 Utility Vehicle

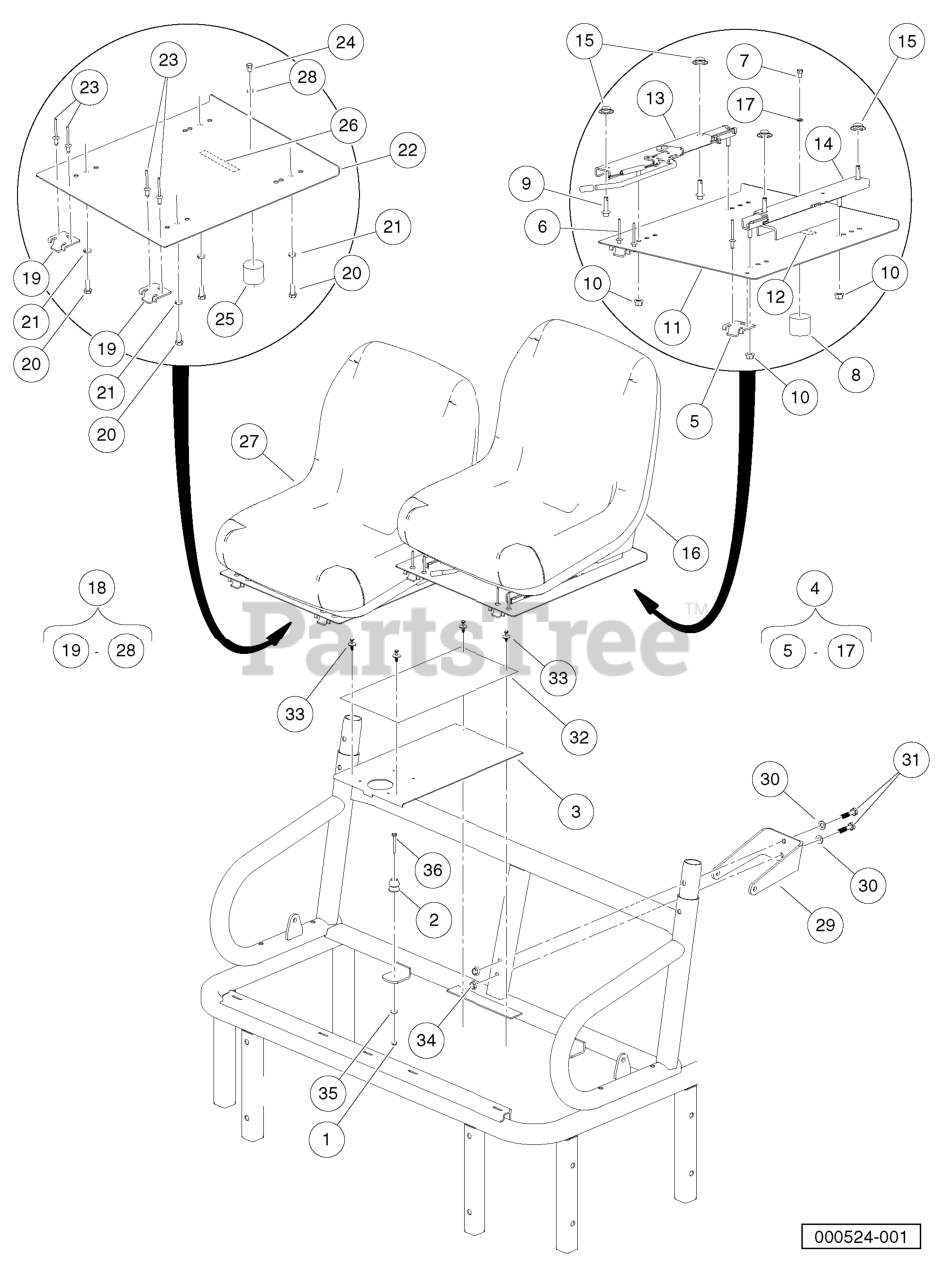

Bucket Seats - Gray Parts Diagram

  • Title

1

Husqvarna 101887601

Locknut, M6-1.00 Nylon Insert

$

$

Currently unavailable

2

Husqvarna 102059001

Seat Holder Base

$

$

Currently unavailable

3

Husqvarna 102442001

Pan, Center, Closeout

$

$

Currently unavailable

4

Husqvarna 102473701

Asm, Bucket Seat Adjustable

Note: (includes items 5 through 17)

$

$

Currently unavailable

5

Husqvarna 1011652

Hinge Plate

$

$

Currently unavailable

6

Husqvarna 102047001

Rivet, 1/4 X .438 Blind

$

$

Currently unavailable

7

Husqvarna 102059401

Screw, 6m-1.00 X 10mm Hex Head

$

$

Currently unavailable

8

Husqvarna 102061101

Seat Holder Cup

$

$

Currently unavailable

9

Husqvarna 102298130

Bolt, Flange Head, M8 X 30.0

$

$

Currently unavailable

10

Husqvarna 102298401

Nut,m8,all Metal Lock

$

$

Currently unavailable

11

Husqvarna 102456001

Pan, Seat, Driver Asm

$

$

Currently unavailable

12

Husqvarna 102458901

Decal, Hot Surface Warning

$

$

Currently unavailable

13

Husqvarna 102473501

Adjuster, Forward/Aft

$

$

Currently unavailable

14

Husqvarna 102473601

Adjuster, Slider

$

$

Currently unavailable

15

Husqvarna 102475901

Washer, Bell

$

$

Currently unavailable

16

Husqvarna 103267001

Seat, Bucket, Gray

$

$

Currently unavailable

17

Husqvarna 451

Lockwasher, 1/4 Helical Split

$

$

Currently unavailable

18

Assembly, Bucket Seat w/Spacers

Note: (includes items 19 through 28)

$

$

Not available

19

Husqvarna 1011652

Hinge Plate

$

$

Currently unavailable

20

Husqvarna 1012830

Screw, M8-125 X 22 Hex-Head

$

$

Currently unavailable

21

Husqvarna 1013734

Lockwasher, 8mm Split

$

$

Currently unavailable

22

Husqvarna 102023703

Pan, Seat, Passenger

$

$

Currently unavailable

23

Husqvarna 102047001

Rivet, 1/4 X .438 Blind

$

$

Currently unavailable

24

Husqvarna 102059401

Screw, 6m-1.00 X 10mm Hex Head

$

$

Currently unavailable

25

Husqvarna 102061101

Seat Holder Cup

$

$

Currently unavailable

26

Husqvarna 102458901

Decal, Hot Surface Warning

$

$

Currently unavailable

27

Husqvarna 103267001

Seat, Bucket, Gray

$

$

Currently unavailable

28

Husqvarna 451

Lockwasher, 1/4 Helical Split

$

$

Currently unavailable

29

Husqvarna 102670601

Bracket, Seatbelt, Bolt-On

$

$

Currently unavailable

30

Husqvarna 102718101

Washer, Hard, M10, Zn-Ni/Blk

$

$

Currently unavailable

31

Husqvarna 102732401

Bolt, M10 X 45, Zn-Ni (Black)

$

$

Currently unavailable

32

Husqvarna 102763701

Cover, Center Console

$

$

Currently unavailable

33

Husqvarna 102967901

Rivet, Removable, Tuflok 1/4"

$

$

Currently unavailable

34

Husqvarna 103216401

Nut, Flanged, M10 x 1.5, Black

$

$

Currently unavailable

35

Husqvarna 332

Washer, 1/4 Type A Narrow Flat

$

$

Currently unavailable

36

Husqvarna 96742515

Bolt, M6 X 1 X 45

$

$

Currently unavailable
