HUV 4421 GXL - Husqvarna 4x4 Utility Vehicle (2009-01) Carburetor Installation-Kawasaki Gasoline Vehicles Parts Diagram

4x4 Utility Vehicle

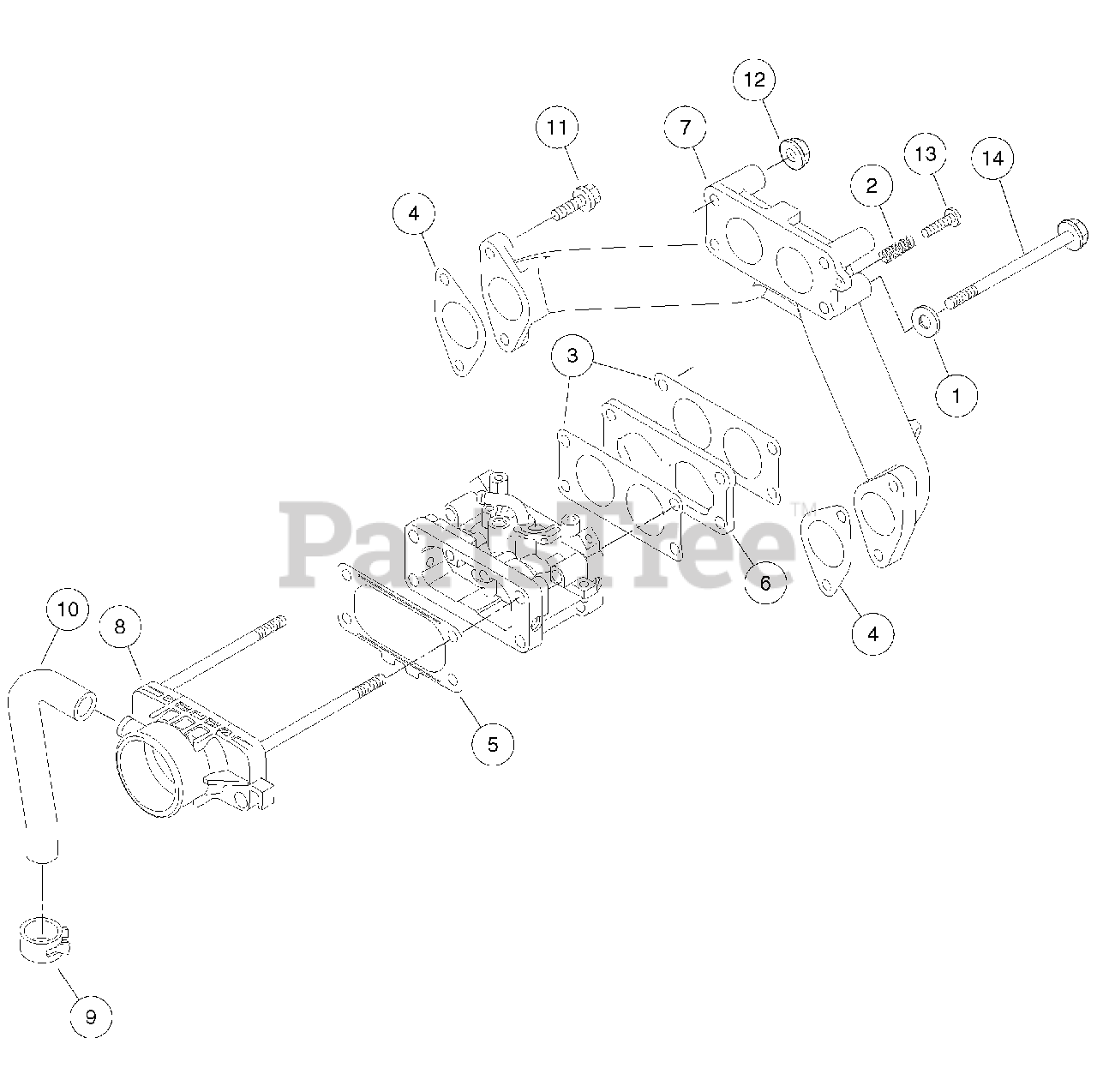

Carburetor Installation-Kawasaki Gasoline Vehicles Parts Diagram

  • Title
1

Husqvarna 1016513

Washer, M6 Flat

$

$

Currently unavailable

2

Husqvarna 103002801

Spring, Fh

$

$

Currently unavailable

3

Husqvarna 103003801

Gasket, Carburetor, Fh

$

$

Currently unavailable

4

Husqvarna 103003901

Gasket, Manifold, Fh

$

$

Currently unavailable

5

Husqvarna 103004201

Gasket, Air Filter, Fh

$

$

Currently unavailable

6

Husqvarna 103005001

Insulator, Manifold, Fh

$

$

Currently unavailable

7

Husqvarna 103005601

Manifold, Intake, Fh

$

$

Currently unavailable

8

Husqvarna 103297101

Pipe, Intake Adapter, Fh

$

$

Currently unavailable

9

Husqvarna 103297201

Clamp, Crankcase Vent, Fh

$

$

Currently unavailable

10

Husqvarna 103297301

Tube, Crankcase Vent, Fh

$

$

Currently unavailable

11

Husqvarna 103298501

Bolt, Flanged, M6 X 20, Kaw

$

$

Currently unavailable

12

Husqvarna 103320201

Nut, Carburetor, M6

$

$

Currently unavailable

13

Husqvarna 103320301

Screw, Carburetor, M4 X 20

$

$

Currently unavailable

14

Husqvarna 103320401

Bolt, Flg, Carburetor, M6x105

$

$

Currently unavailable
