HUV 4421 GXL - Husqvarna 4x4 Utility Vehicle (2009-01) Cargo Box (Steel) Parts Diagram

4x4 Utility Vehicle

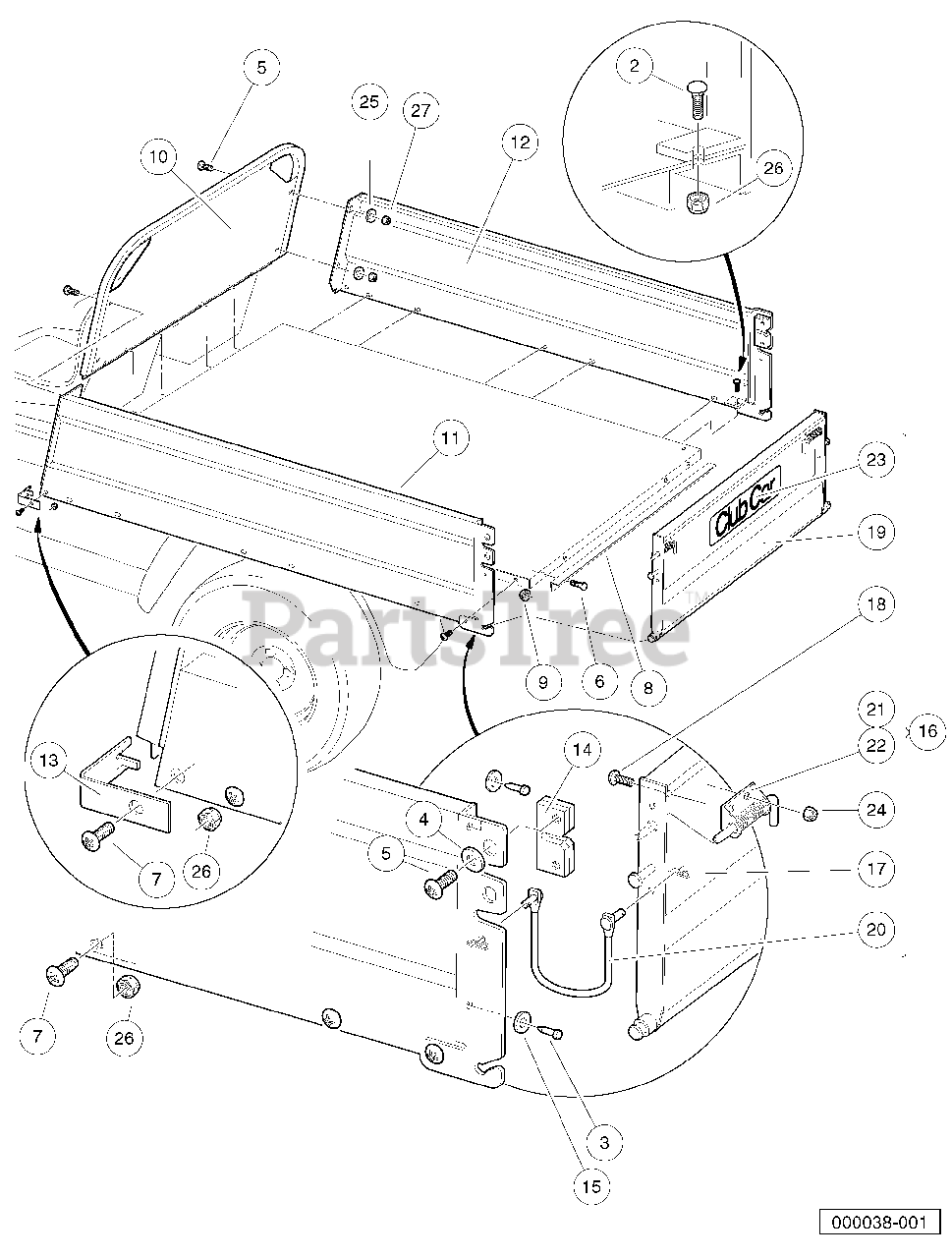

Cargo Box (Steel) Parts Diagram

  • Title

1

Husqvarna N/A

Instl, Steel Box, XRT

Note: (includes items 2 through 27)

$

$

Not available

2

Husqvarna 1010435

Bolt, Carriage, 5/16-18 X 1.00

$

$

Currently unavailable

3

Husqvarna 1010436

Bumper, Rubber

$

$

Currently unavailable

4

Husqvarna 1014306

Washer, 1/4" Type B Flat

$

$

Currently unavailable

5

Husqvarna 1014415

Screw, 1/4-20 X 0.75 Torx Truss-Head

$

$

Currently unavailable

6

Husqvarna 1014537

Stud, Self-Clinching Flush Head

$

$

Currently unavailable

7

Husqvarna 1015399

Screw, 5/16-18 X 0.88 Torx Truss-Head

$

$

Currently unavailable

8

Husqvarna 101894304

Box Bed Tailgate Angle

$

$

Currently unavailable

9

Husqvarna 101963401

Locknut, 5/16-18 Hex Flange

$

$

Currently unavailable

10

Husqvarna 102221301

Front Panel Weldment

$

$

Currently unavailable

11

Husqvarna 102221401

Left Panel Weldment

$

$

Currently unavailable

12

Husqvarna 102221501

Right Panel Weldment

$

$

Currently unavailable

13

Husqvarna 102221701

Front Corner Cap

$

$

Currently unavailable

14

Husqvarna 102222001

Slam Latch

$

$

Currently unavailable

15

Husqvarna 102239901

Washer, Rubber, 3/8

$

$

Currently unavailable

16

Husqvarna 102614401

Assembly, Tailgate

Note: (includes items 17 through 24)

$

$

Currently unavailable

17

Husqvarna 1013366

Hair Pin Clip

$

$

Currently unavailable

18

Husqvarna 1014415

Screw, 1/4-20 X 0.75 Torx Truss-Head

$

$

Currently unavailable

19

Husqvarna N/A

Tailgate, Weldment

$

$

Not available

20

Husqvarna 102221801

Tether Assembly

$

$

Currently unavailable

21

Husqvarna 102222101

Spring Latch Left

$

$

Currently unavailable

22

Husqvarna 102222201

Spring Latch Right

$

$

Currently unavailable

23

Husqvarna 102673201

Decal, Club Car Tailgate

$

$

Currently unavailable

24

Husqvarna 8233

Locknut, 1/4-20 Nylon Insert

$

$

Currently unavailable

25

Husqvarna 332

Washer, 1/4 Type A Narrow Flat

$

$

Currently unavailable

26

Husqvarna 7473

Locknut, 5/16-18 Nylon Insert

$

$

Currently unavailable

27

Husqvarna 8233

Locknut, 1/4-20 Nylon Insert

$

$

Currently unavailable
