HUV 4421 GXL - Husqvarna 4x4 Utility Vehicle (2009-01) Driven Clutch Parts Diagram

4x4 Utility Vehicle

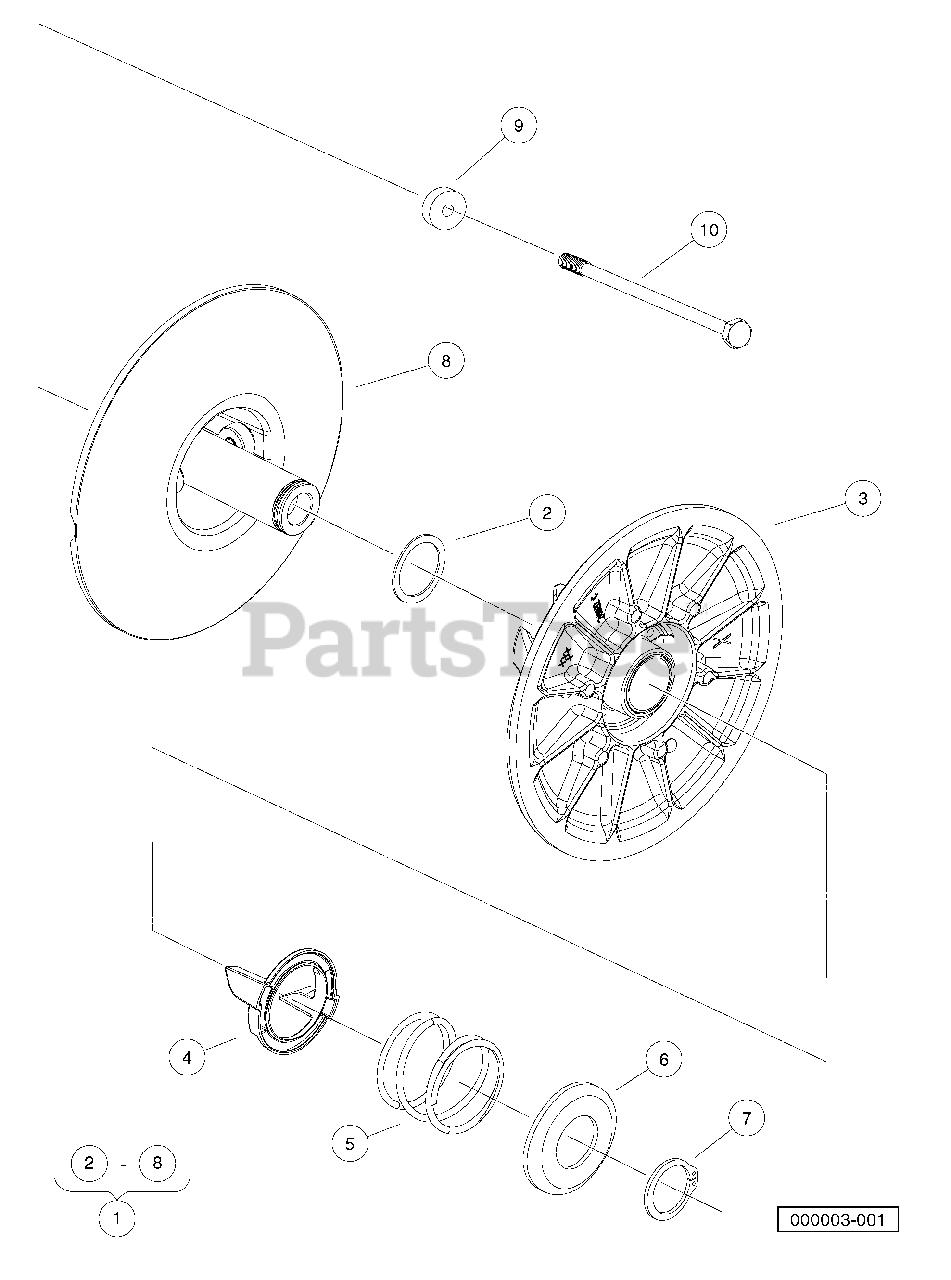

Driven Clutch Parts Diagram

  • Title
1

Husqvarna 102369901

CVT, Secondary

Note: (includes items 2 through 8)

$

$

Currently unavailable

2

Husqvarna 102695401

Washer, Thrust, 1.53 X 1.92

$

$

Currently unavailable

3

Husqvarna N/A

Sheave, Driven Clutch

$

$

Not available

4

Husqvarna 102695601

Retainer, Spring, Inner

$

$

Currently unavailable

5

Husqvarna 102695701

Spring, Compression, Secondary

$

$

Currently unavailable

6

Husqvarna 102695801

Retainer, Spring, Outer

$

$

Currently unavailable

7

Husqvarna 102695901

Ring, Retaining, External

$

$

Currently unavailable

8

Husqvarna N/A

Driven Clutch Base Sheave

$

$

Not available

9

Husqvarna 102385701

Washer, Stepped

$

$

Currently unavailable

10

Husqvarna 102490501

Bolt, M10 X 1.5 X 100 Loctite

$

$

Currently unavailable
