HUV 4421 GXL - Husqvarna 4x4 Utility Vehicle (2009-01) Rops Parts Diagram

4x4 Utility Vehicle

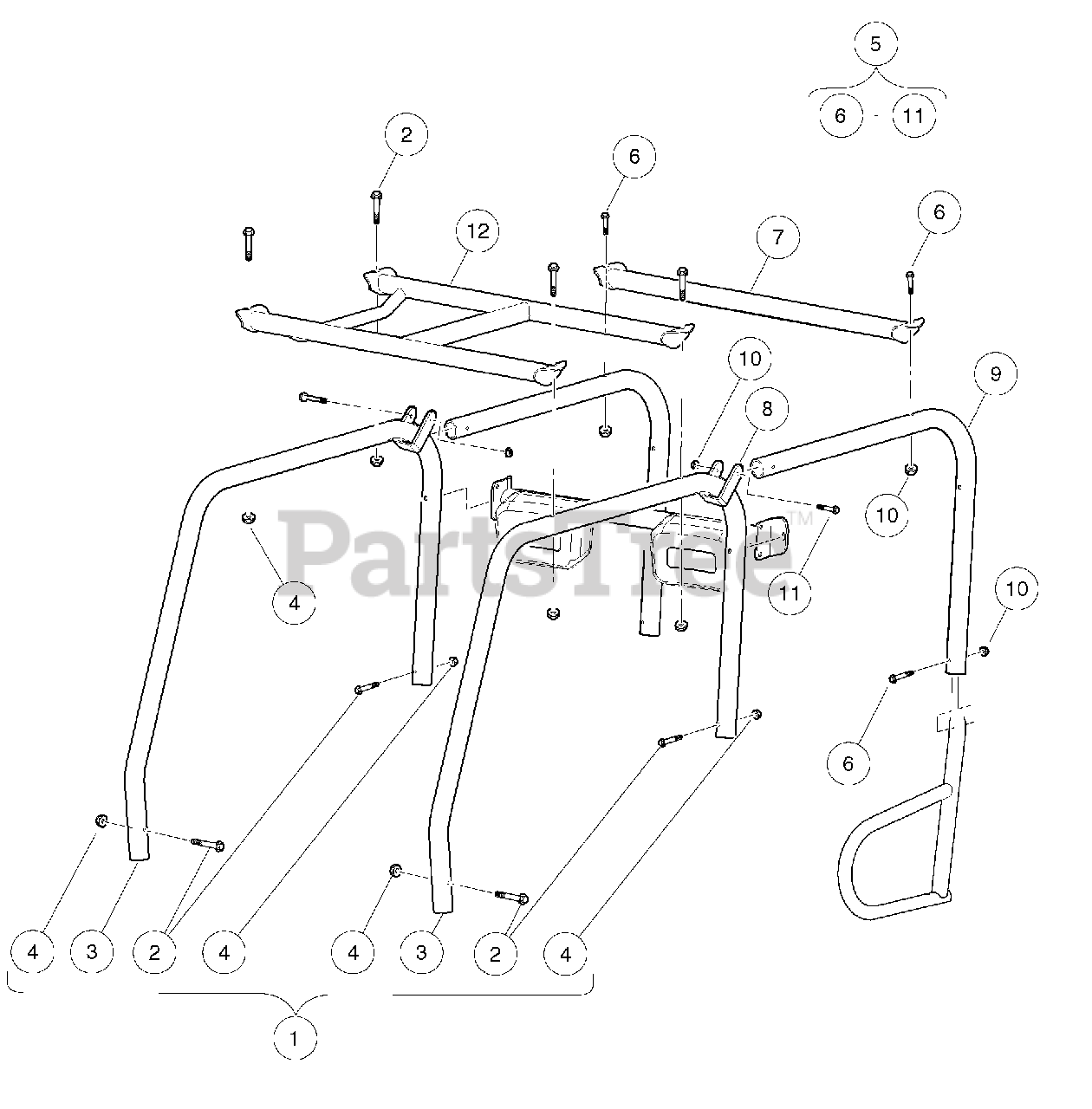

Rops Parts Diagram

  • Title

1

Husqvarna 103215901

Kit, ROPS, Domestic

Note: (includes items 2 through 4)

$

$

Currently unavailable

2

Husqvarna 102988701

Bolt, Flanged, M10 X 1.5 X 65

$

$

Currently unavailable

3

Husqvarna 103192101

Tube, Side Support Short, ROPS

$

$

Currently unavailable

4

Husqvarna 103216401

Nut, Flanged, M10 x 1.5, Black

$

$

Currently unavailable

5

Husqvarna 103216201

Kit, ROPS, Four Passenger

Note: (includes items 6 through 11)

$

$

Currently unavailable

6

Husqvarna 102988701

Bolt, Flanged, M10 X 1.5 X 65

$

$

Currently unavailable

7

Husqvarna 103214901

Weldment, ROPS, Top, 4 Pass

$

$

Currently unavailable

8

Husqvarna 103215001

Bracket, ROPS, Rear, 4 Pass

$

$

Currently unavailable

9

Husqvarna 103215101

Tube, Rear, 4 Pass

$

$

Currently unavailable

10

Husqvarna 103216401

Nut, Flanged, M10 x 1.5, Black

$

$

Currently unavailable

11

Husqvarna 103216801

Bolt, Flanged, M10 X 1.5 X 70

$

$

Currently unavailable

12

Husqvarna 103225801

Asm, Top, ROPS

$

$

Currently unavailable
