HUV 4421 GXL - Husqvarna 4x4 Utility Vehicle (2009-01) Side Panels and Rear Fenders Parts Diagram

4x4 Utility Vehicle

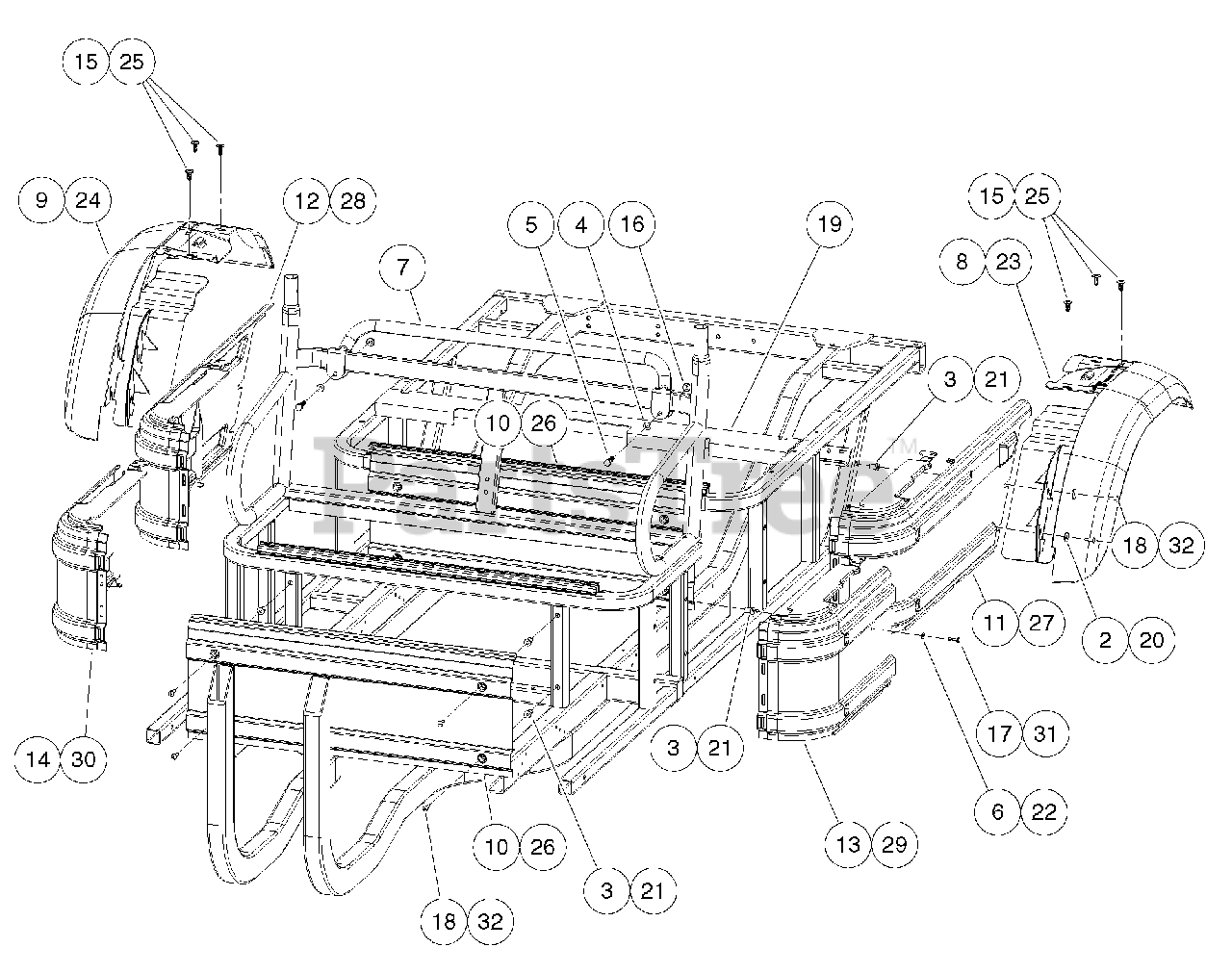

Side Panels and Rear Fenders Parts Diagram

  • Title

1

Husqvarna N/A

Instl, Pnls, Fend, 4p, Blk

Note: (includes items 2 through 18)

$

$

Not available

2

Husqvarna 1014306

Washer, 1/4" Type B Flat

$

$

Currently unavailable

3

Husqvarna 102491701

Well Nut 1/4-20

$

$

Currently unavailable

4

Husqvarna 102718101

Washer, Hard, M10, Zn-Ni/Blk

$

$

Currently unavailable

5

Husqvarna 102732401

Bolt, M10 X 45, Zn-Ni (Black)

$

$

Currently unavailable

6

Husqvarna 102772201

Washer, Flat, 5/16, Black

$

$

Currently unavailable

7

Husqvarna 102834401

Weldment, Handle, ROPS, Rear

$

$

Currently unavailable

8

Husqvarna 102913801

Left Rear Fender

$

$

Currently unavailable

9

Husqvarna 102913901

Right Rear Fender

$

$

Currently unavailable

10

Husqvarna 102914001

Panel, Front, Kick

$

$

Currently unavailable

11

Husqvarna 102914101

Panel, Side, Molded, Driver

$

$

Currently unavailable

12

Husqvarna 102914102

Panel, Side, Molded, Passenger

$

$

Currently unavailable

13

Husqvarna 102914104

Panel, Side, Cut, Drv

$

$

Currently unavailable

14

Husqvarna 102914105

Panel, Side, Molded, Pas

$

$

Currently unavailable

15

Husqvarna 103200501

Screw, Tuflok, 10mm

$

$

Currently unavailable

16

Husqvarna 103216401

Nut, Flanged, M10 x 1.5, Black

$

$

Currently unavailable

17

Husqvarna 103319501

Screw, Pn Hd Blk, 1/4 - 20 X 1

$

$

Currently unavailable

18

Husqvarna 8251

Screw, 1/4-20 X 1.0 Truss-Head Machine

$

$

Currently unavailable

19

Husqvarna 103207102

Instl, Pns, Fndrs, 4p, Rthwd

Note: (includes items 20 through 32)

$

$

Currently unavailable

20

Husqvarna 1014306

Washer, 1/4" Type B Flat

$

$

Currently unavailable

21

Husqvarna 102491701

Well Nut 1/4-20

$

$

Currently unavailable

22

Husqvarna 102772201

Washer, Flat, 5/16, Black

$

$

Currently unavailable

23

Husqvarna 102913801

Left Rear Fender

$

$

Currently unavailable

24

Husqvarna 102913901

Right Rear Fender

$

$

Currently unavailable

25

Husqvarna 103200501

Screw, Tuflok, 10mm

$

$

Currently unavailable

26

Husqvarna 103289001

Panel, Front, Kick, Rthwhd

$

$

Currently unavailable

27

Husqvarna 103289101

Pnl, Side, Mld, Drv, Rthwhd

$

$

Currently unavailable

28

Husqvarna 103289103

Pnl, Side, Mld, Pass, Rthwhd

$

$

Currently unavailable

29

Husqvarna 103289107

Pnl, Cut, Drv, Rthwhd

$

$

Currently unavailable

30

Husqvarna 103289109

Pnl, Cut, Pass, Rthwhd

$

$

Currently unavailable

31

Husqvarna 103319501

Screw, Pn Hd Blk, 1/4 - 20 X 1

$

$

Currently unavailable

32

Husqvarna 8251

Screw, 1/4-20 X 1.0 Truss-Head Machine

$

$

Currently unavailable

33

Husqvarna 103331201

Closeout, Extrusion

$

$

Currently unavailable
