HUV 4421 GXP - Husqvarna 4x4 Utility Vehicle (2006-11) Front Body Components Parts Diagram

4x4 Utility Vehicle

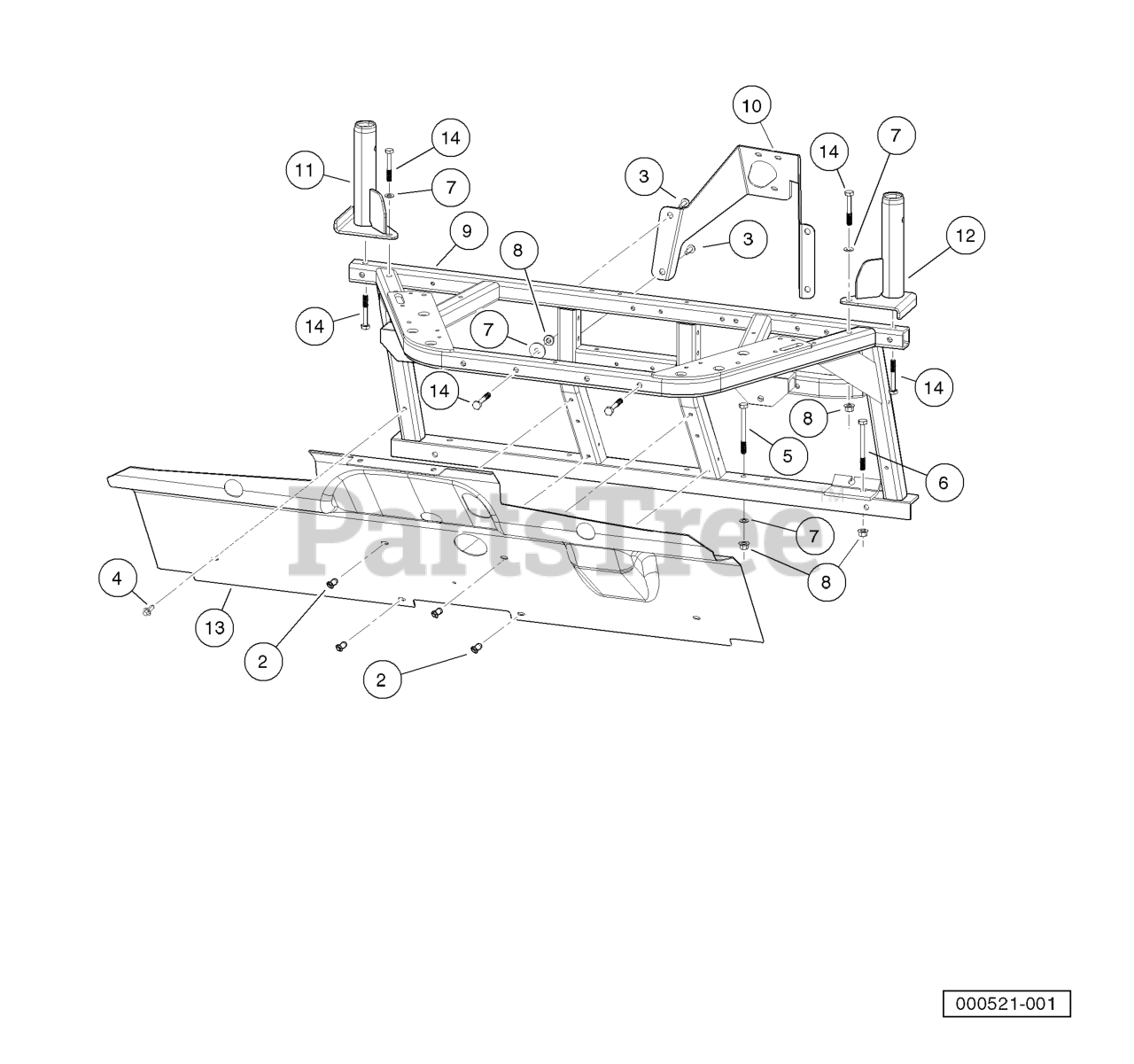

Front Body Components Parts Diagram

  • Title

1

Instl, Cowl Weldmnt/Splash Guard

Note: (includes items 2 through 16)

$

$

Not available

2

Husqvarna 603000379

BLIND RIVET, PUSH TYPE

$

$

Not available

3

Husqvarna 603001298

NUT FLG, M8 X 1.25 MECH DEF

$2.49

$

Usually ships in 3-10 days

0

4

Husqvarna 603003559

M8-1.25X20 TAPTITE

$

$

Not available

5

Husqvarna 603003522

WASHER, FLAT, 3/8, BLK FIN

$

$

Not available

6

Husqvarna 603001759

BOLT, M10 X 100, ZN-NI/BLK

Note: (Black)

$

$

Not available

7

Husqvarna 603003432

BOLT, M10 X 1.50 X 110 BLACK

$

$

Not available

8

Husqvarna 603001174

WASHER HARD, M10

$

$

Not available

9

Husqvarna 603001300

NUT FLG M10 X 1.5 MECH DEF

$

$

Not available

10

Husqvarna 603001306

BOLT FLG, M8X1.25X65

$

$

Not available

11

Husqvarna 603003433

WELDMENT, DASH, FRONT

$

$

Not available

12

Husqvarna 603003434

BKT, COLUMN, STEERING

$

$

Not available

13

Husqvarna 531308405

WELDMENT, FRT, BASE, ROPS, RH

$

$

Not available

14

Husqvarna 531308404

WELDMENT, FRT, BASE, ROPS, LH

$

$

Not available

15

Husqvarna 603004407

GUARD, SPLASH, GAS INJECTION

$

$

Not available

16

Husqvarna 603000448

BOLT, M10 X 1.50 X 65

$

$

Not available
