HUV 4421 GXP - Husqvarna 4x4 Utility Vehicle (2006-11) Fuel System Kawasaki Gasoline Vehicles Parts Diagram

4x4 Utility Vehicle

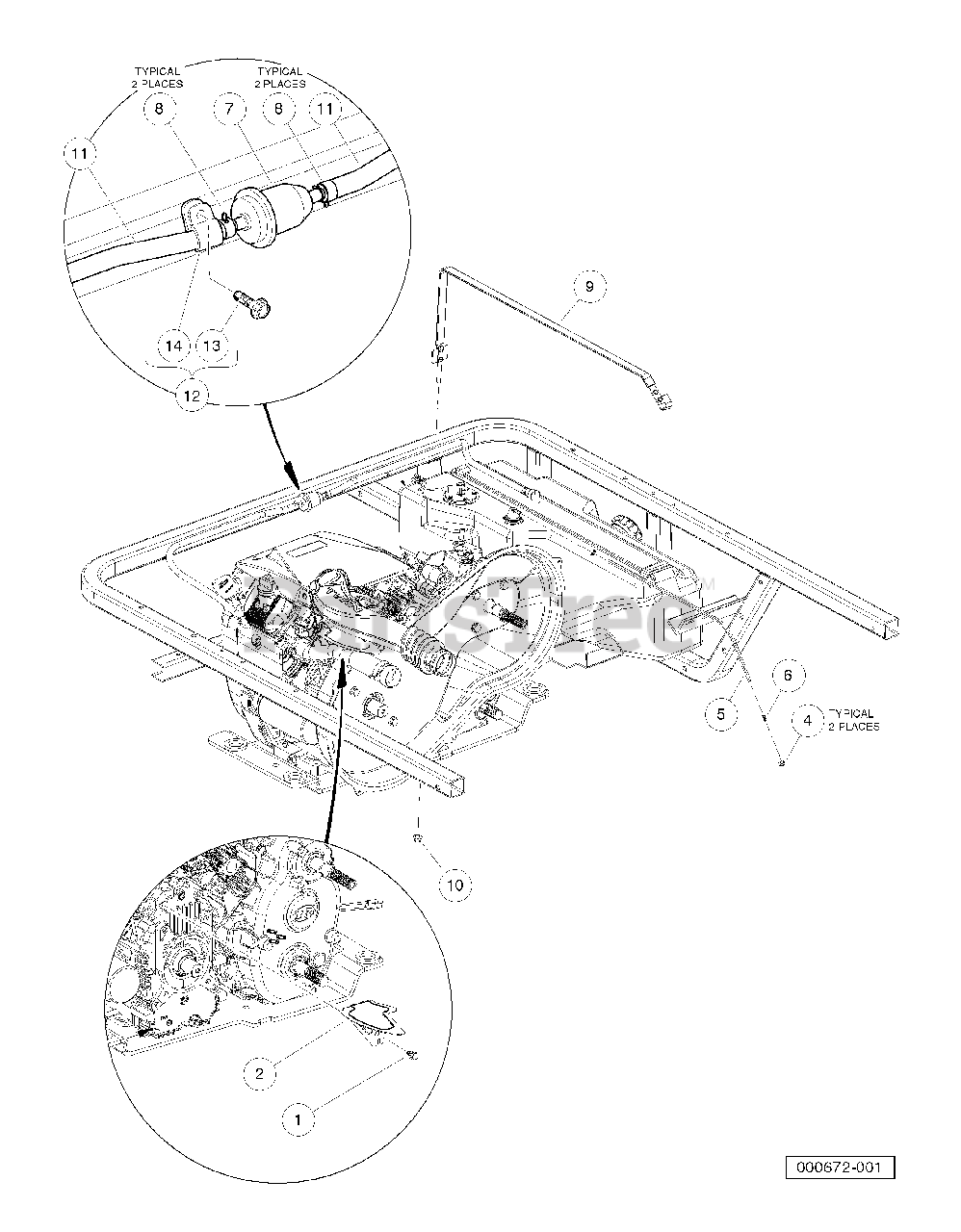

Fuel System Kawasaki Gasoline Vehicles Parts Diagram

  • Title

1

Husqvarna 603001315

Bolt Flanged Head, M8 X1.25x 16 with Loctite

$

$

Not available

2

Husqvarna 603004070

Heat Shield, Header, Gas

$

$

Not available

3

Instl, Fuel System, Fh680d

Note: (includes items 4 through 12)

$

$

Not available

4

Husqvarna 603000185

Clamp, 0.301 ID Hose

$

$

Not available

5

Husqvarna 603000465

Hose, Fuel, Vent, 22" Long

$

$

Not available

6

Husqvarna 603000503

Vent Barb

$

$

Not available

7

Husqvarna 603000008

Filter, Fuel, 30 Micron

$

$

Not available

8

Husqvarna 603000968

Clamp, Hose, Ctb 13mm

$

$

Not available

9

Husqvarna 603001000

Strap, Tank, Fuel

$

$

Not available

10

Husqvarna 603001308

Lock Nut, Flg M8 X 1.25 Nylon

$

$

Not available

11

Husqvarna 531309542

Fuel Line

$

$

Not available

12

Husqvarna 603004425

Kit, Fuel Line Clamp, 4x4 Khi

Note: (includes items 13 through 15)

$

$

Not available

13

Husqvarna 603000869

Screw, M8X1.25X30, Hex

$

$

Not available

14

P-clamp, Insulated 0.625 In

$

$

Not available

15

Husqvarna 603004500

Instr, Kit Fuel Line 4x4 Khi

$

$

Currently unavailable
