HUV 4421 GXP - Husqvarna 4x4 Utility Vehicle (2006-11) Shock Absorbers High Capacity Parts Diagram

4x4 Utility Vehicle

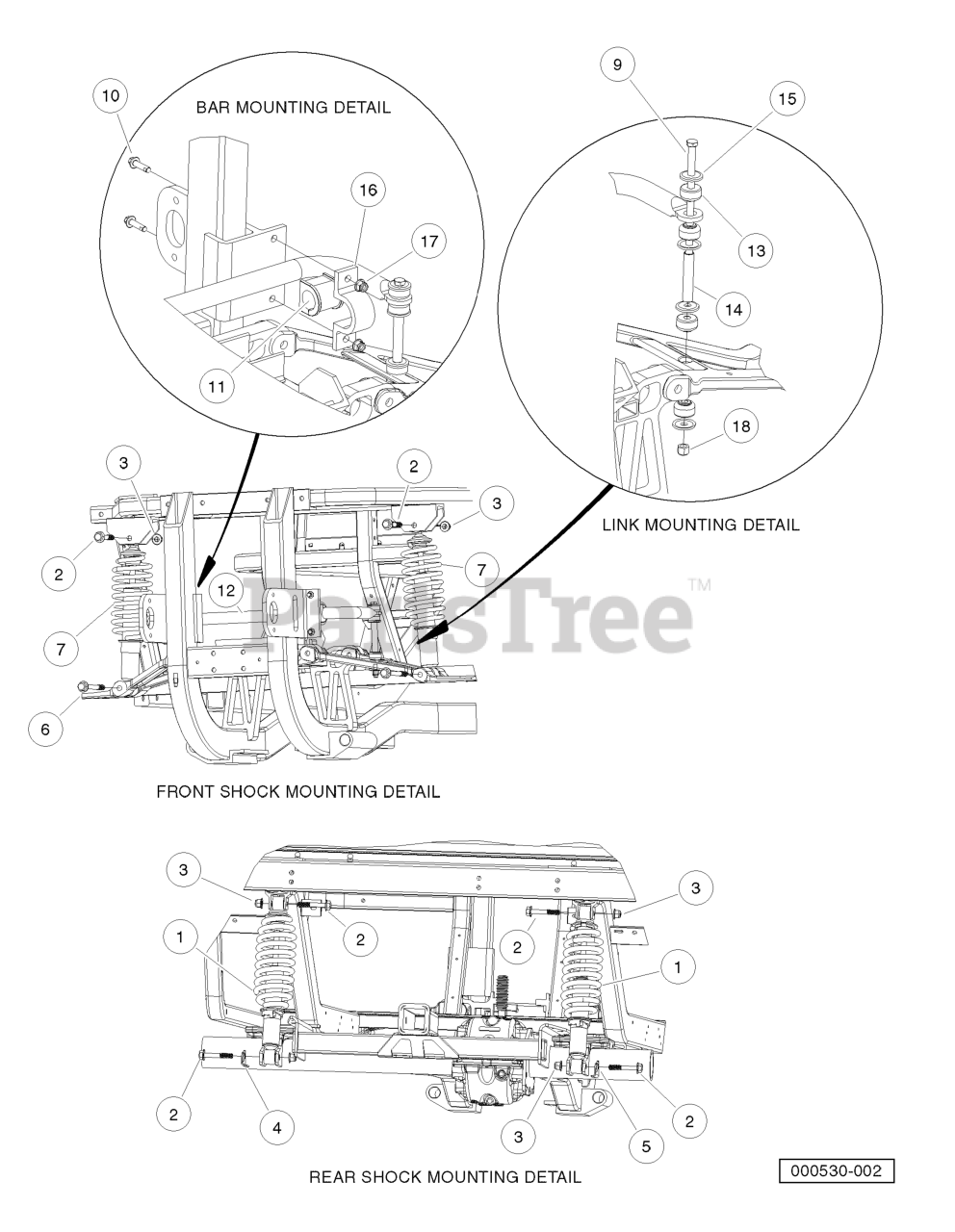

Shock Absorbers High Capacity Parts Diagram

  • Title

1

Husqvarna 603000895

SHOCK, COIL OVER, REAR HD

$

$

Not available

2

Husqvarna 603001292

BOLT, FLG, M12X1.75X70

$

$

Not available

3

Husqvarna 603001312

NUT FLG, M12X1.75, NYLON GR 10

$

$

Not available

4

Husqvarna 603001606

BRKT, LINE, HYD, SHK MNT, DRV

$

$

Not available

5

Husqvarna 603001607

BRKT, LINE, HYD, SHK MNT, PASS

$11.99

$

Usually ships in 3-10 days

0

6

Husqvarna 603003547

BOLT FLG, M12X1.75X100, PATCH

$

$

Not available

7

Husqvarna 603003548

ASM, COIL & SHOCK, FRT

$

$

Not available

8

Instl, Bar, Antisway, Wide Frt

Note: (includes items 9 through 18)

$

$

Not available

9

Husqvarna 603000281

SCREW, 3/8-16 X 7.00 HEX CAP

$

$

Not available

10

Husqvarna 603000875

BOLT - FLANGED HD, M8 X 30.0

$

$

Not available

11

Husqvarna 603001062

BUSHING, ANTI-SWAY BAR, 1-1/8

$

$

Not available

12

Husqvarna 603001126

BAR, SWAY, FORMED

$

$

Not available

13

Husqvarna 603001132

BUSHING, LINK

$

$

Not available

14

Husqvarna 603001133

SLEEVE, LINK

$

$

Not available

15

Husqvarna 603001134

WASHER, CUP, BUSHING

$

$

Not available

16

Husqvarna 603001188

BRACKET, ANTI-SWAY BAR

$

$

Not available

17

Husqvarna 603001308

LOCK NUT, FLG M8 X 1.25 NYLON

$

$

Not available

18

Husqvarna 603000095

LOCKNUT, 3/8-16 HEX

$

$

Not available
