HUV 4421 GXP - Husqvarna 4x4 Utility Vehicle (2008-01) Drive Clutch - Diesel Vehicles Parts Diagram

4x4 Utility Vehicle

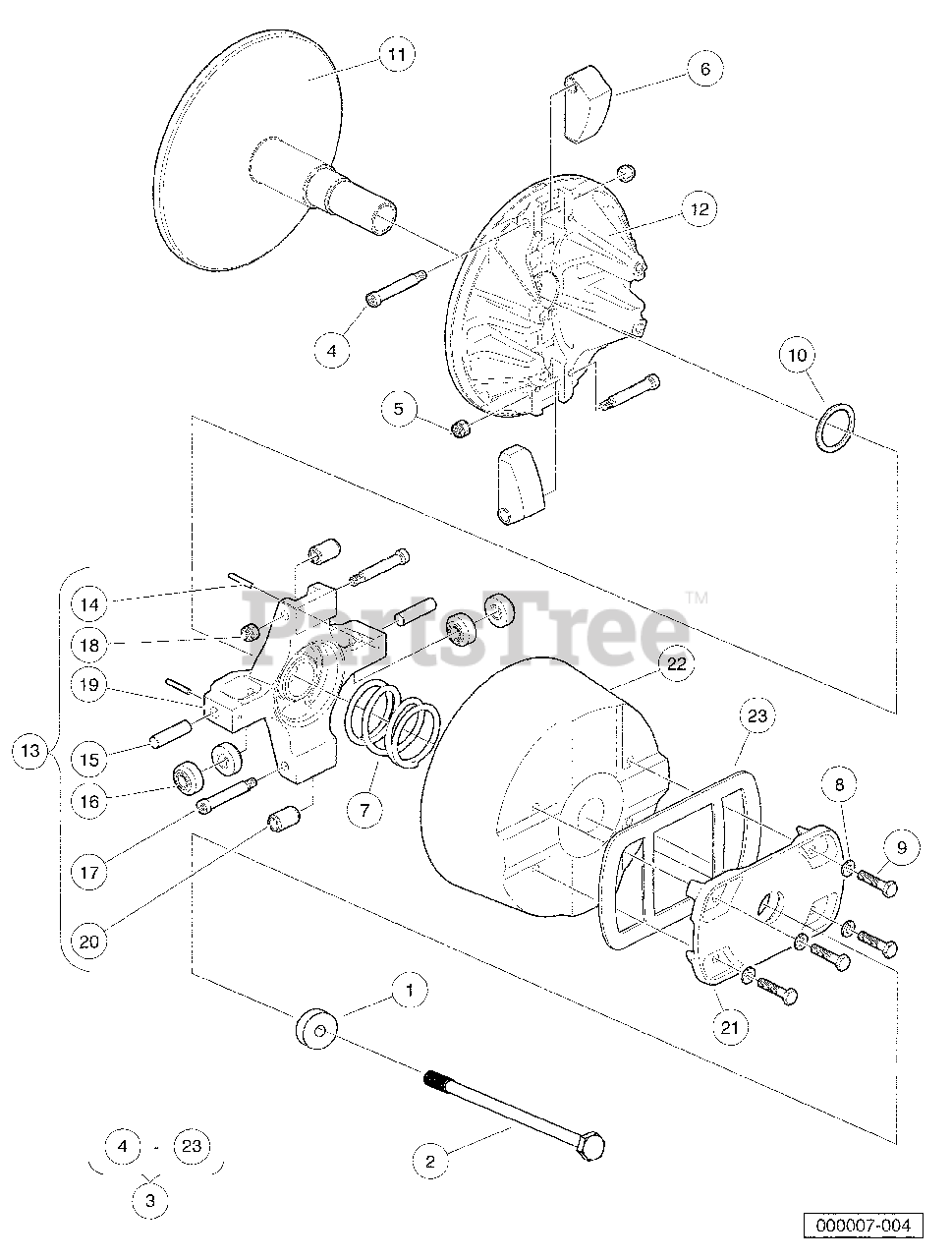

Drive Clutch - Diesel Vehicles Parts Diagram

  • Title

1

Husqvarna 603000938

Washer, Stepped

$

$

Not available

2

Husqvarna 603001294

Bolt, M10 X 1.5 X 160

$

$

Not available

3

Husqvarna 603003009

Clutch, 4x4, Diesel, W/cover
(Superseded to 579753801)

Note: (includes items 4 through 23)

$

$

Not available

4

Husqvarna 603001611

Screw, Shlder Hex, .312 X 1.75

$

$

Not available

5

Husqvarna 603001613

Nut, Lock Hex, 1/14-20, Flexlc

$

$

Not available

6

Husqvarna 603001614

Sub Assy, Wt Clutch, Diesel

$

$

Not available

7

Husqvarna 603001616

Spring, Compression, Primary

$

$

Not available

8

Husqvarna 603001617

Washer, Lock, H-Spring, 1/4

$

$

Not available

9

Husqvarna 603001618

Screw, Cap, Hex Hd, 1/4 X 1.25

$

$

Not available

10

Husqvarna 603001619

Shim, 1.63 X 1.33

$

$

Not available

11

Subassembly, Drive Clutch

$

$

Not available

12

Subassembly, Moveable, Drive Clutch

$

$

Not available

13

Subassembly, Spider Utility, Diesel

Note: (includes items 14 through 20)

$

$

Not available

14

Husqvarna 603001608

Pin, Spring Slotted,1.25 X 1.0

$

$

Not available

15

Husqvarna 603001609

Pin, Dowel, .375 X 1.50

$

$

Not available

16

Husqvarna 603001610

Roller, Torque, Diesel

$

$

Not available

17

Husqvarna 603001611

Screw, Shlder Hex, .312 X 1.75

$

$

Not available

18

Husqvarna 603001613

Nut, Lock Hex, 1/14-20, Flexlc

$

$

Not available

19

Spider, Drive Clutch

$

$

Not available

20

Husqvarna 603001612

Sub Assy, Roller Weight

$

$

Not available

21

Cover, Drive Clutch

$

$

Not available

22

Husqvarna 531308140

Cover, Clutch, 4x4

$

$

Not available

23

Husqvarna 531308139

Gasket, Cover, Clutch, 4x4

$

$

Not available
