HUV 4421 GXP - Husqvarna 4x4 Utility Vehicle (2008-01) Gear Case Parts Diagram

4x4 Utility Vehicle

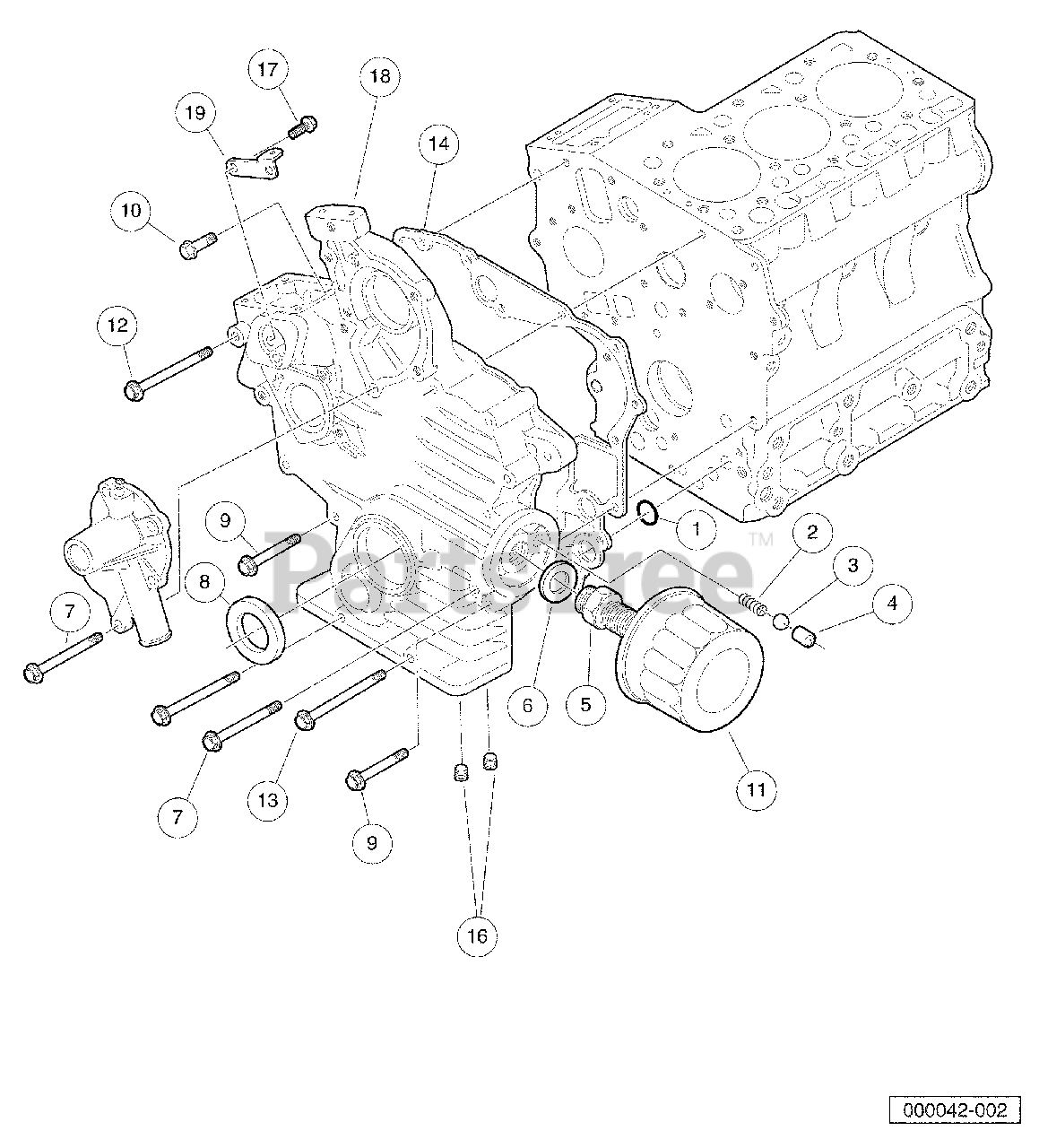

Gear Case Parts Diagram

  • Title

1

Husqvarna 603001212

O Ring, 18 X 13

$

$

Not available

2

Husqvarna 603001213

Spring, Valve

$

$

Not available

3

Husqvarna 603001214

Ball, Valve

$

$

Not available

4

Husqvarna 603001215

Seat, Valve

$

$

Not available

5

Husqvarna 603001216

Joint, Pipe

$

$

Not available

6

Husqvarna 603001217

Washer, Plain, Special

$

$

Not available

7

Husqvarna 603001218

Bolt, M6 X 1 X 60

$

$

Not available

8

Husqvarna 603001219

Seal, Oil

$

$

Not available

9

Husqvarna 603001220

Bolt, D722, Front Case

$

$

Not available

10

Husqvarna 603001456

Bolt, D722 Intake Manfld Lower.

$

$

Not available

11

Husqvarna 603000041

Filter, Engine Oil, D722

$

$

Not available

12

Husqvarna 603001712

Bolt, Gearcase, Top

$

$

Not available

13

Husqvarna 603001713

Bolt, Gearcase, Lower.

$

$

Not available

14

Husqvarna 603001731

Gasket, Gearcase, D722

$

$

Not available

15

Husqvarna 603001711

Case, Gear

Note: (includes items 16 through 19)

$

$

Not available

16

Husqvarna 603001207

Plug, 1/4"

$

$

Not available

17

Husqvarna 603001811

Screw, Breather.

$

$

Not available

18

Case, Gear.

$

$

Not available

19

Husqvarna 603001810

Stay, Spring

$

$

Not available
