HUV 4421 GXP - Husqvarna 4x4 Utility Vehicle (2008-01) Side Panels and Rear Fenders Parts Diagram

4x4 Utility Vehicle

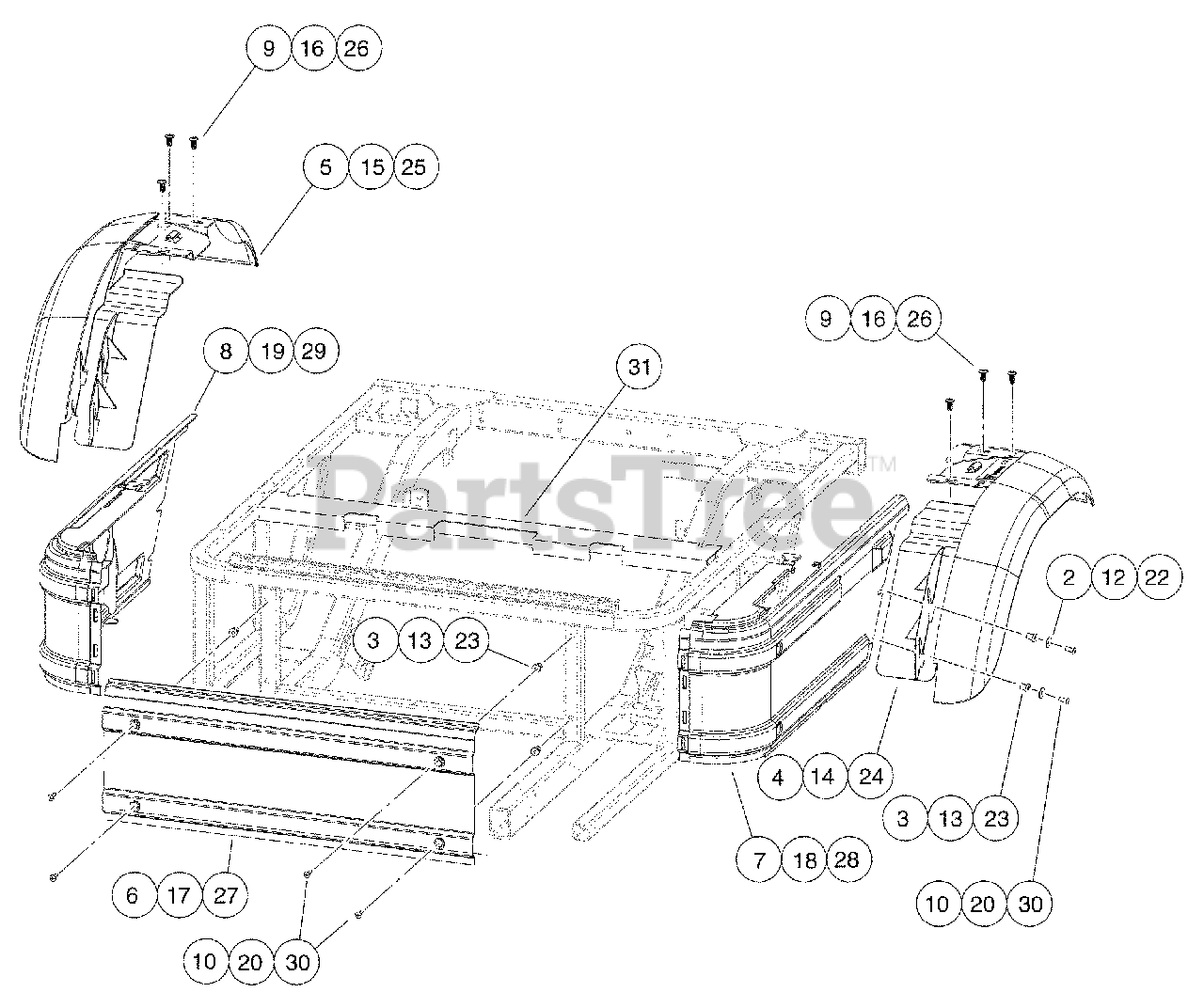

Side Panels and Rear Fenders Parts Diagram

  • Title

1

Instl, Panels, Fenders, Blk

Note: (includes items 2 through 10)

$

$

Not available

2

Husqvarna 603000222

Washer, 1/4" Type B Flat

$

$

Not available

3

Husqvarna 603001176

Well Nut 1/4-20

$

$

Not available

4

Husqvarna 531307439

Left Rear Fender

$

$

Not available

5

Husqvarna 531307441

Right Rear Fender

$

$

Not available

6

Husqvarna 603003478

Panel, Front, Kick

$

$

Not available

7

Husqvarna 603003479

Panel, Side, Molded, Driver

$

$

Not available

8

Husqvarna 603003480

Panel, Side, Molded, Passenger

$

$

Not available

9

Husqvarna 603003481

Screw, Tuflok, 10mm

$

$

Not available

10

Husqvarna 603000091

Screw, 1/4-20 X 1.0 Truss-Head Machine

$

$

Not available

11

Instl, Panels, Fenders, Rthwd

Note: (includes items 12 through 20)

$

$

Not available

12

Husqvarna 603000222

Washer, 1/4" Type B Flat

$

$

Not available

13

Husqvarna 603001176

Well Nut 1/4-20

$

$

Not available

14

Husqvarna 531307439

Left Rear Fender

$

$

Not available

15

Husqvarna 531307441

Right Rear Fender

$

$

Not available

16

Husqvarna 603003481

Screw, Tuflok, 10mm

$

$

Not available

17

603004483

Panel, Front, Kick, Rthwhd

$

$

Not available

18

603004484

Pnl, Side, Mld, Drv, Rthwhd

$

$

Not available

19

603004485

Pnl, Side, Mld, Pass, Rthwhd

$

$

Not available

20

Husqvarna 603000091

Screw, 1/4-20 X 1.0 Truss-Head Machine

$

$

Not available

21

Instl, Panels, Fenders, Moff

Note: (includes items 22 through 30)

$

$

Not available

22

Husqvarna 603000222

Washer, 1/4" Type B Flat

$

$

Not available

23

Husqvarna 603001176

Well Nut 1/4-20

$

$

Not available

24

Husqvarna 531307439

Left Rear Fender

$

$

Not available

25

Husqvarna 531307441

Right Rear Fender

$

$

Not available

26

Husqvarna 603003481

Screw, Tuflok, 10mm

$

$

Not available

27

Husqvarna 603004120

Panel, Front, Kick, Moff

$

$

Not available

28

Husqvarna 603004121

Pnl, Side, Mld, Drv, Moff

$

$

Not available

29

Husqvarna 603004122

Pnl, Side, Mld, Pass, Moff

$

$

Not available

30

Husqvarna 603000091

Screw, 1/4-20 X 1.0 Truss-Head Machine

$

$

Not available

31

Husqvarna 603004160

Closeout, Extrusion

$

$

Not available
