HUV 4421 GXP - Husqvarna 4x4 Utility Vehicle (2009-01) Chamshaft And Idle Gear Parts Diagram

4x4 Utility Vehicle

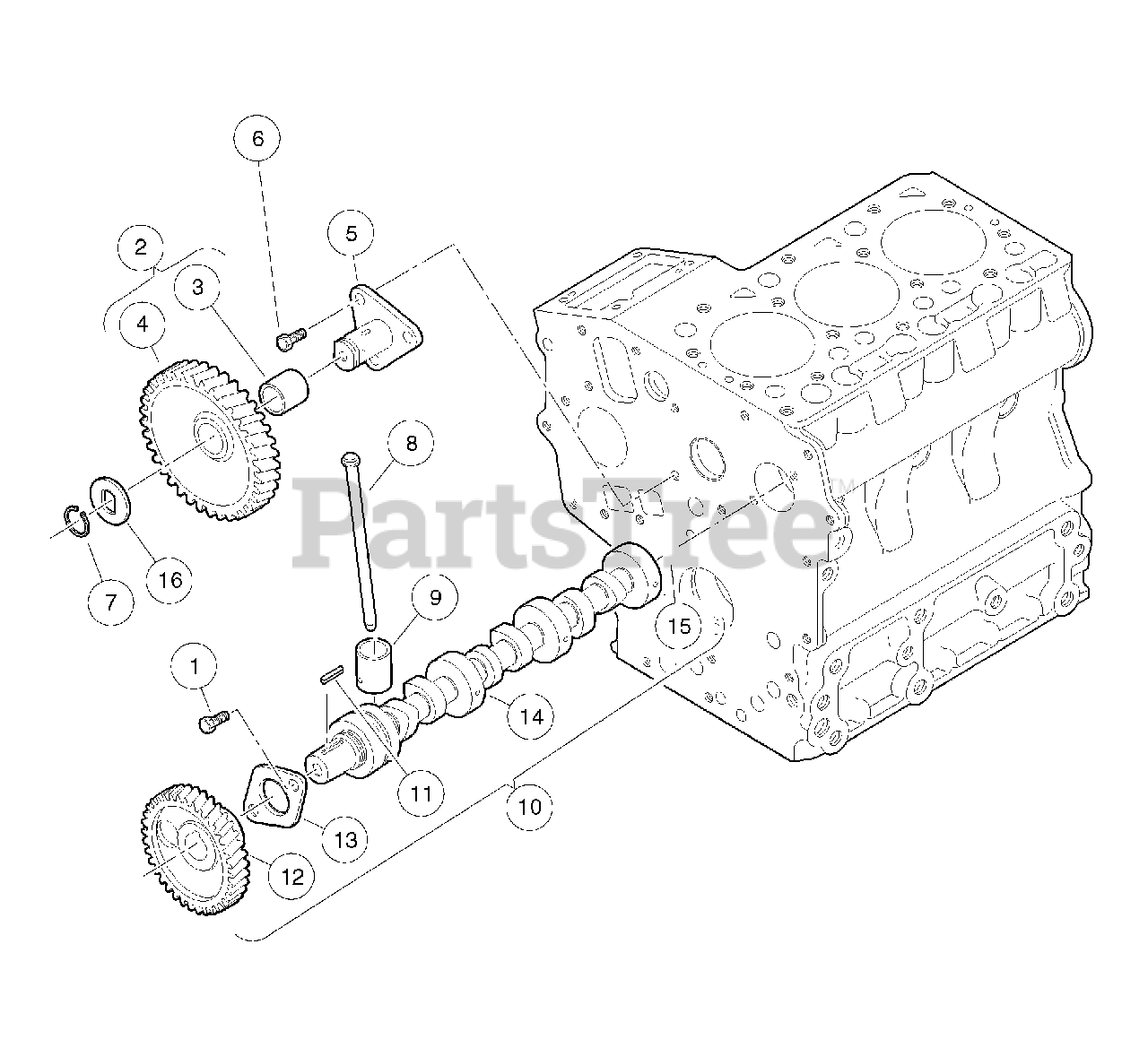

Chamshaft And Idle Gear Parts Diagram

  • Title

1

Husqvarna 102604201

Bolt, D722, Cam End

$

$

Currently unavailable

2

Husqvarna 102604901

Gear, Idle

Note: (includes items 3 and 4)

$

$

Currently unavailable

3

Husqvarna N/A

Bushing, D722 Idle Gear

$

$

Not available

4

Husqvarna N/A

Gear, Idle

$

$

Not available

5

Husqvarna 102605001

Shaft, Idle Gear

$

$

Currently unavailable

6

Husqvarna 102605101

Bolt, M6 X 1 X 14

$

$

Currently unavailable

7

Husqvarna 102605301

Ring, Snap

$

$

Currently unavailable

8

Husqvarna 102605401

Push Rod

$

$

Currently unavailable

9

Husqvarna 102605501

Tappet

$

$

Currently unavailable

10

Husqvarna 102605801

Assy Camshaft, Long

Note: (includes items 11 through 15)

$

$

Currently unavailable

11

Husqvarna 102605601

Key, Feather, Long Camshaft

$

$

Currently unavailable

12

Husqvarna 102605901

Gear, Cam

$

$

Currently unavailable

13

Husqvarna 102606001

Stopper, Camshaft

$

$

Currently unavailable

14

Husqvarna N/A

Camshaft

$

$

Not available

15

Husqvarna 102799401

Ball, Check

$

$

Currently unavailable

16

Husqvarna 102654401

Collar, Idle Gear

$

$

Currently unavailable
