HUV 4421 GXP - Husqvarna 4x4 Utility Vehicle (2009-01) Drive Clutch - Gasoline Vehicles Parts Diagram

4x4 Utility Vehicle

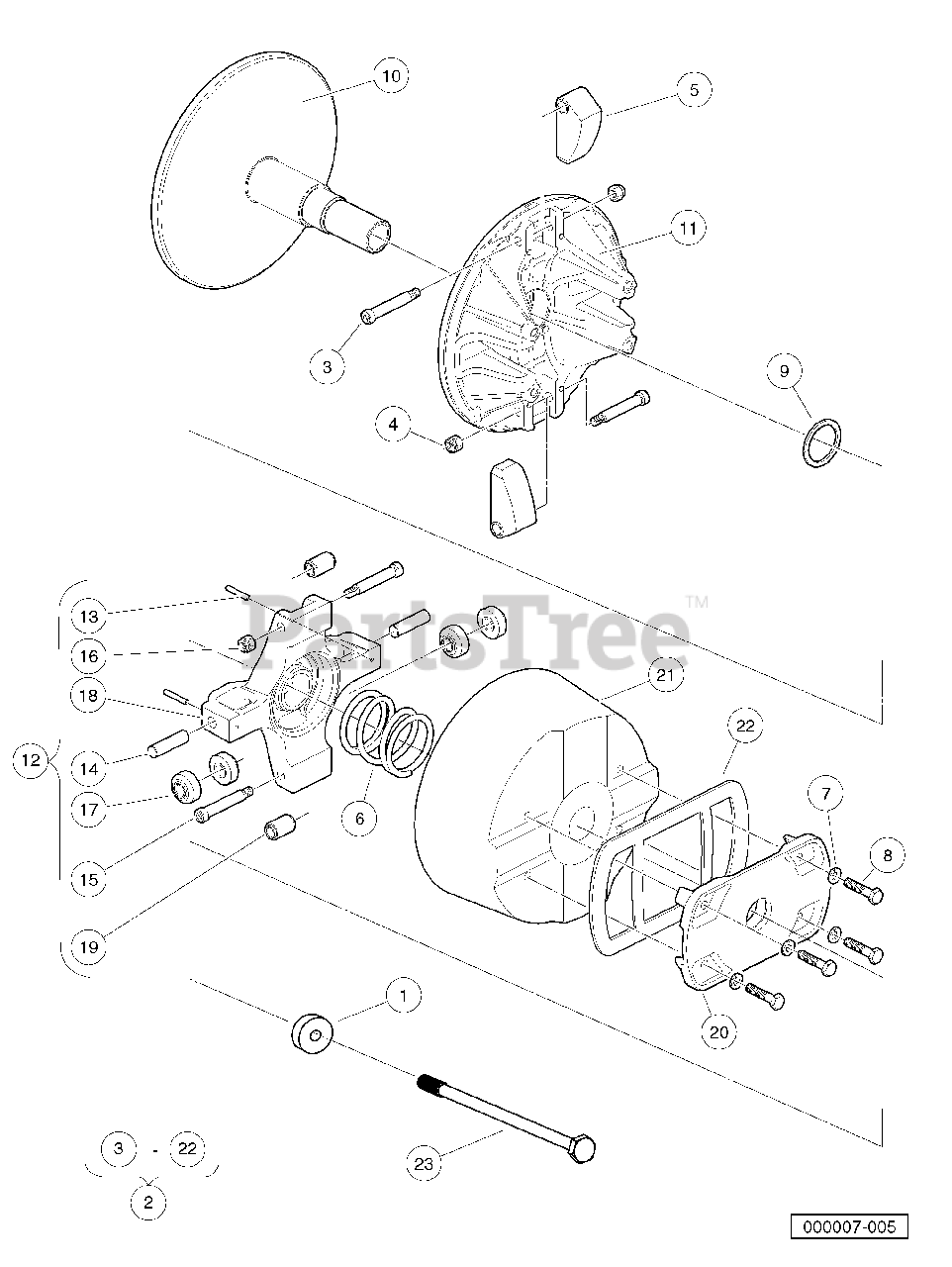

Drive Clutch - Gasoline Vehicles Parts Diagram

  • Title

1

Husqvarna 102385601

Washer, Stepped

$

$

Currently unavailable

2

Husqvarna 103185401

Clutch, 4x4, Gas, W/cover

Note: (includes items 3 through 22)

$

$

Currently unavailable

3

Husqvarna 102690501

Screw, Shlder Hex, .312 X 1.75

$

$

Currently unavailable

4

Husqvarna 102690701

Nut, Lock Hex, 1/14-20, Flexlc

$

$

Currently unavailable

5

Husqvarna 102691001

Sub Assy, Wt Clutch, Gas

$

$

Currently unavailable

6

Husqvarna 102691401

Spring, Compression, Primary

$

$

Currently unavailable

7

Husqvarna 102691601

Washer, Lock, H-Spring, 1/4

$

$

Currently unavailable

8

Husqvarna 102691701

Screw, Cap, Hex Hd, 1/4 X 1.25

$

$

Currently unavailable

9

Husqvarna 102691801

Shim, 1.63 X 1.33

$

$

Currently unavailable

10

Husqvarna N/A

Subassembly, Drive Clutch

$

$

Not available

11

Husqvarna N/A

Subassembly, Moveable, Drive Clutch

$

$

Not available

12

Husqvarna N/A

Spider Subassembly (Gasoline)

Note: (includes items 13 through 19)

$

$

Not available

13

Husqvarna 102690201

Pin, Spring Slotted,1.25 X 1.0

$

$

Currently unavailable

14

Husqvarna 102690301

Pin, Dowel, .375 X 1.50

$

$

Currently unavailable

15

Husqvarna 102690501

Screw, Shlder Hex, .312 X 1.75

$

$

Currently unavailable

16

Husqvarna 102690701

Nut, Lock Hex, 1/14-20, Flexlc

$

$

Currently unavailable

17

Husqvarna 102691901

Roller, Torque, Gas

$

$

Currently unavailable

18

Husqvarna N/A

Spider, Drive Clutch

$

$

Not available

19

Husqvarna 102839401

Sub Assy, Roller Weight

$

$

Currently unavailable

20

Husqvarna N/A

Cover, Drive Clutch

$

$

Not available

21

Husqvarna 103185801

Cover, Clutch, 4x4

$

$

Currently unavailable

22

Husqvarna 103185901

Gasket, Cover, Clutch, 4x4

$

$

Currently unavailable

23

Husqvarna 103201501

Bolt, M8 X 1.25 X 200, Loctite

$

$

Currently unavailable
