HUV 4421 GXP - Husqvarna 4x4 Utility Vehicle (2009-01) Fuel Tank - Diesel Vehicles Parts Diagram

4x4 Utility Vehicle

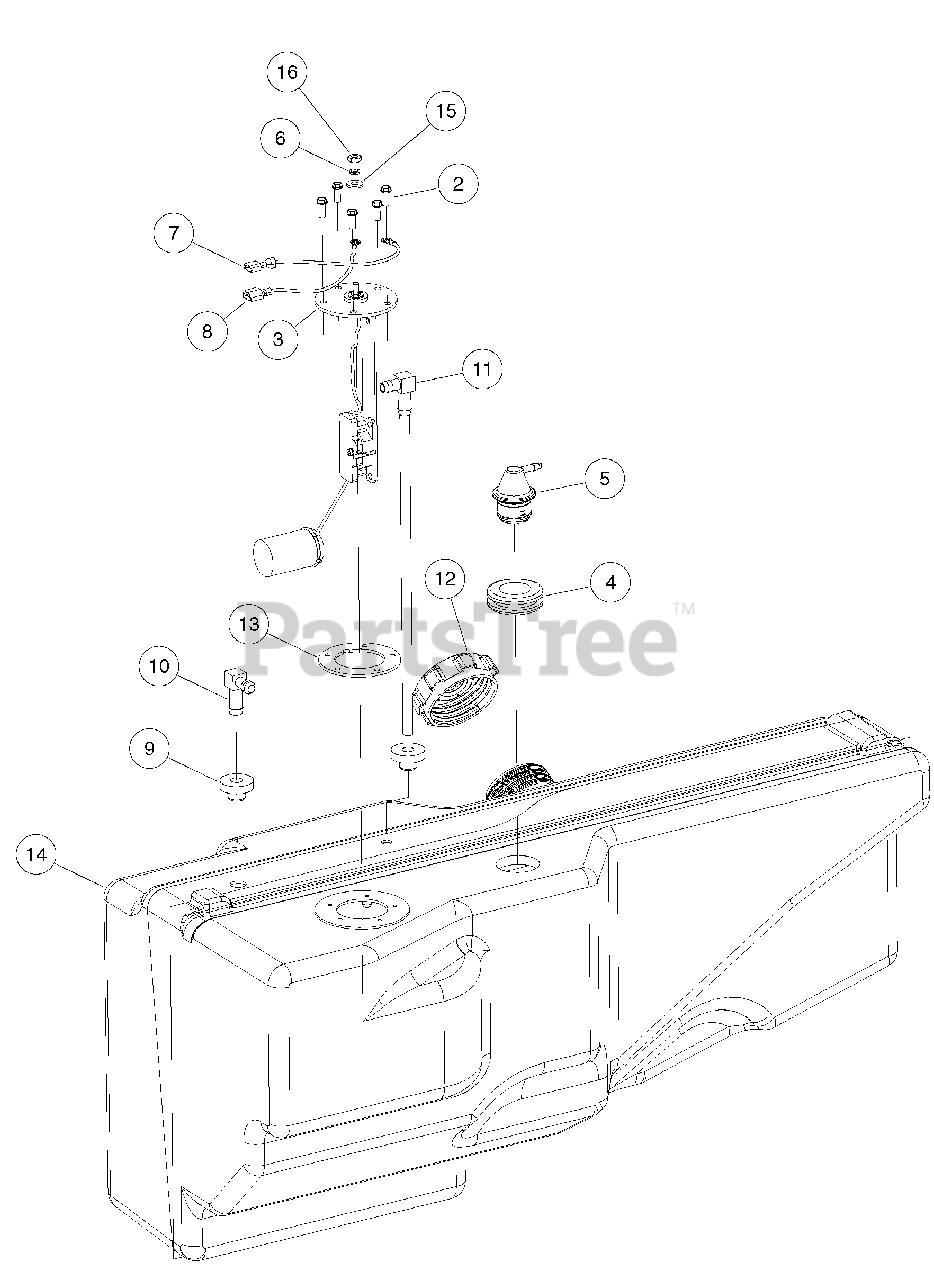

Fuel Tank - Diesel Vehicles Parts Diagram

  • Title

1

Husqvarna 102952101

Asm, Tank, Fuel, Diesel, 4x4

Note: (includes items 2 through 16)

$

$

Currently unavailable

2

Husqvarna 1013461

Screw, #10-16 Hex-Head Hi-Lo

$

$

Currently unavailable

3

Sending Unit, Fuel Level

Note: Special order item available upon request.\nMust replace fuel sending unit gasket when servicing this component.

$

$

Not available

4

Husqvarna 1015139

Insulation Grommet

$

$

Currently unavailable

5

Husqvarna 1015143

Vent, Fuel Tank

$

$

Currently unavailable

6

Husqvarna 1016

Washer, #10 Split Lock

$

$

Currently unavailable

7

Husqvarna N/A

Wire Asm, Blk, 170mm

$

$

Not available

8

Husqvarna N/A

Wire Asm, Org, 170mm

$

$

Not available

9

Husqvarna 102406701

Bushing, Line, Return

$

$

Currently unavailable

10

Husqvarna 102406801

Elbow, 90 Barbed

$

$

Currently unavailable

11

Husqvarna 102478501

Pickup Tube, Fuel

$

$

Currently unavailable

12

Husqvarna 102494701

Cap, Fuel (Diesel)

$

$

Currently unavailable

13

Husqvarna 102522001

Gasket, Rubber

$

$

Currently unavailable

14

Husqvarna N/A

Tank, Fuel, Diesel, 4x4

$

$

Not available

15

Husqvarna 183

Washer, #10 Type A Flat

$

$

Currently unavailable

16

Husqvarna 8797

Nut, #10-32 Brass Hex

$

$

Currently unavailable
