HUV 4421 GXP - Husqvarna 4x4 Utility Vehicle (2009-01) Intake Duct And Air Box Assembly - Diesel Vehicles Parts Diagram

4x4 Utility Vehicle

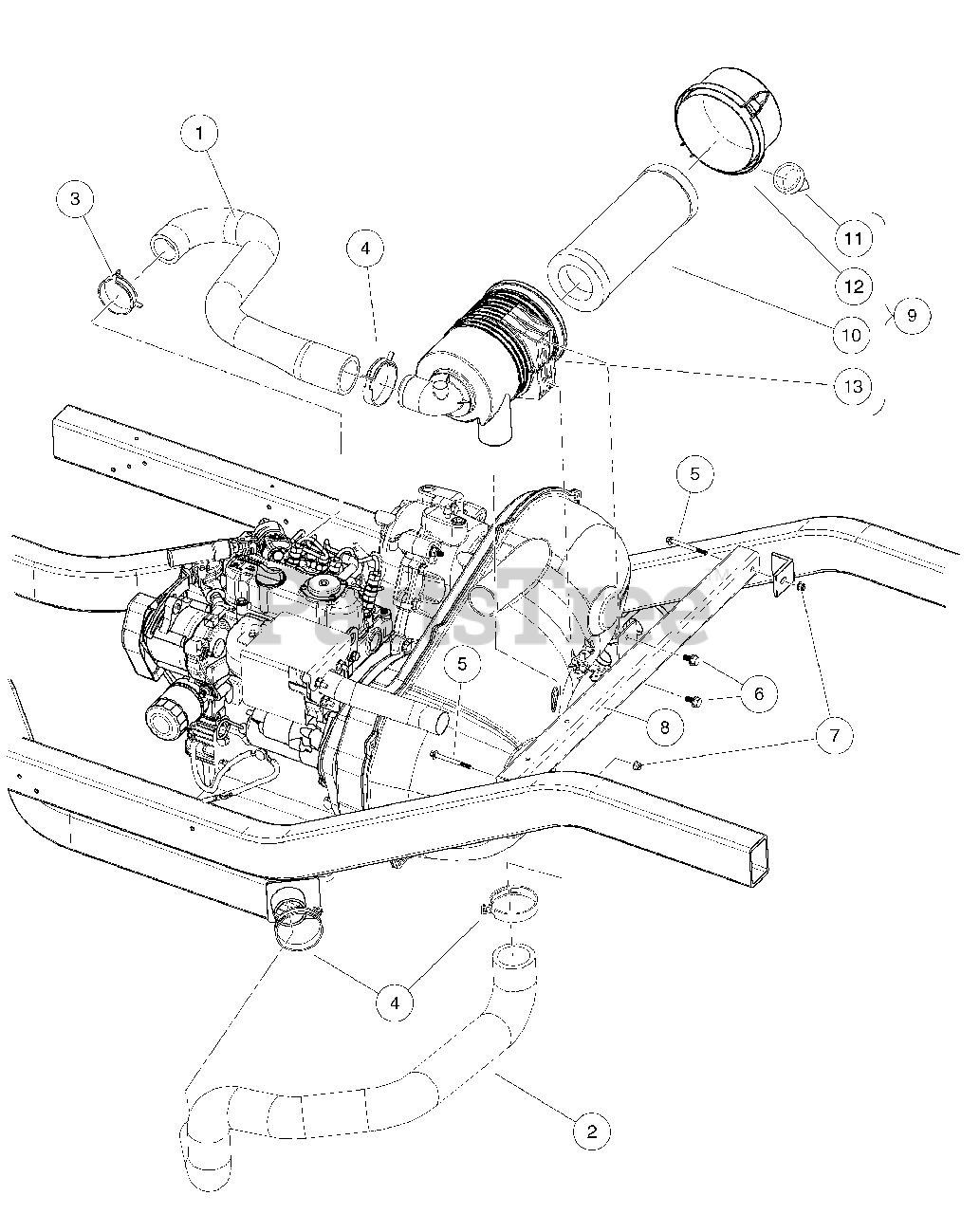

Intake Duct And Air Box Assembly - Diesel Vehicles Parts Diagram

  • Title

1

Husqvarna 102379001

Hose, Intake, D722

$

$

Currently unavailable

2

Husqvarna 102395601

Hose, Intake, Primary

$

$

Currently unavailable

3

Husqvarna 102411209

Clamp, Hose, Ctb 55mm

$

$

Currently unavailable

4

Husqvarna 102411210

Clamp, Hose, Ctb 64mm

$

$

Currently unavailable

5

Husqvarna 102541465

Bolt, M 6 X 1.0 X 65 Hex, Flange, Head, Black

$

$

Currently unavailable

6

Husqvarna 102621201

Bolt Flanged Head, M8 X1.25x 16 with Loctite

$

$

Currently unavailable

7

Husqvarna 102621501

Nut Flg, M6 X 1.0 Nylon

$

$

Currently unavailable

8

Husqvarna N/A

Weldment, Support, Air Cleaner

$

$

Not available

9

Husqvarna 102810701

Filter, Air, Canister, W/labe

Note: (includes items 10 through 13)

$

$

Currently unavailable

10

Husqvarna 102498601

Element, Filter, Air, 5 In

$

$

Currently unavailable

11

Husqvarna 102725501

Valve, Evacuator, Filter Air

$

$

Currently unavailable

12

Husqvarna 102725601

Cap, Latch Lock, Filter, Air

$

$

Currently unavailable

13

Husqvarna N/A

Body, Canister, Filter, Air

$

$

Not available
