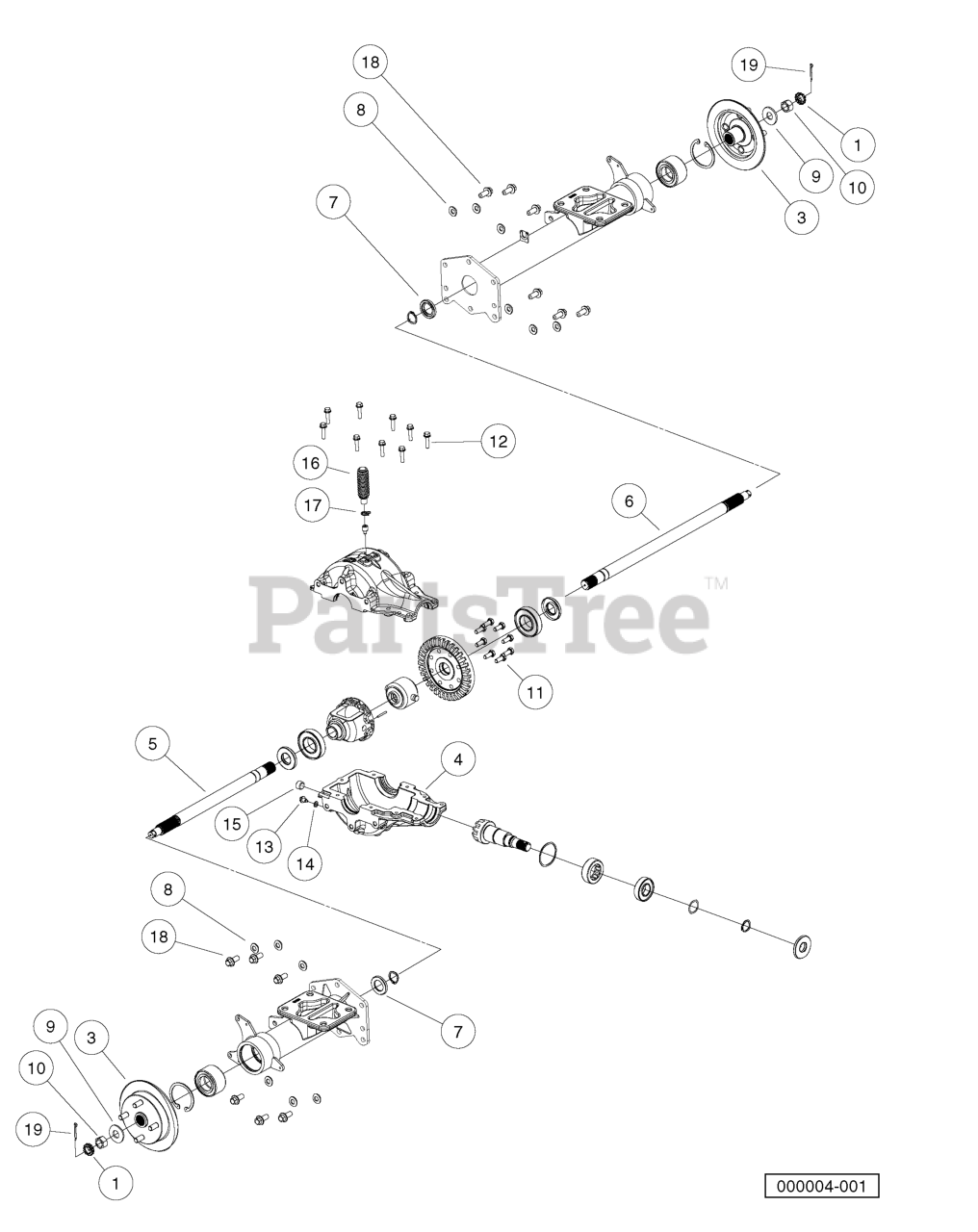

HUV 4421 GXP - Husqvarna 4x4 Utility Vehicle (2009-01) Rear Differential Parts Diagram

4x4 Utility Vehicle

Rear Differential Parts Diagram

  • Title

1

Husqvarna 102831501

Axle, Rear, Guard Mounts

Note: (includes items 2 through 19)

$

$

Currently unavailable

2

Husqvarna 102276001

Locking Cap, Nut

$

$

Currently unavailable

3

Husqvarna 102376602

Assy, Rotor, Brake, Rear

$

$

Currently unavailable

4

Husqvarna 102449101

Gearcase, Lower, Machined

$

$

Currently unavailable

5

Husqvarna 102463501

Axle, Right-hand

$

$

Currently unavailable

6

Husqvarna 102463601

Axle, Left-Hand

$

$

Currently unavailable

7

Husqvarna 102672101

Washer,counterbored 51 X 30

$

$

Currently unavailable

8

Husqvarna 102672201

Washer, Bellevle, 1.063 X .043

$

$

Currently unavailable

9

Husqvarna 102672301

Washer, Belleville, 49 X 4

$

$

Currently unavailable

10

Husqvarna 102672401

Nut, Hex, M20 X 1.5 , Modified

$

$

Currently unavailable

11

Husqvarna 102693201

Screw, M10 X 25

$

$

Currently unavailable

12

Husqvarna 102693301

Screw,hex Flange, M8 X 35

$

$

Currently unavailable

13

Husqvarna 102693401

Plug,3/8-16, Hex Flange

$

$

Currently unavailable

14

Husqvarna 102693501

Washer, .625 X .382 X .60

$

$

Currently unavailable

15

Husqvarna 102694201

Plug, Square Skt, 1/12-14, Ptf

$

$

Currently unavailable

16

Husqvarna 102694301

Bellows, Vent, Upper Housing

$

$

Currently unavailable

17

Husqvarna 102694401

Clamp, Hose, Dw-9.5

$

$

Currently unavailable

18

Husqvarna 102694701

Screw, Hex Fl, M12 X 1.75 X 30

$

$

Currently unavailable

19

Husqvarna 102694801

Pin, Cotter, 5/32 X 1.25

$

$

Currently unavailable
