HUV 4421 GXP - Husqvarna 4x4 Utility Vehicle (2009-01) Shaft Parts Diagram

4x4 Utility Vehicle

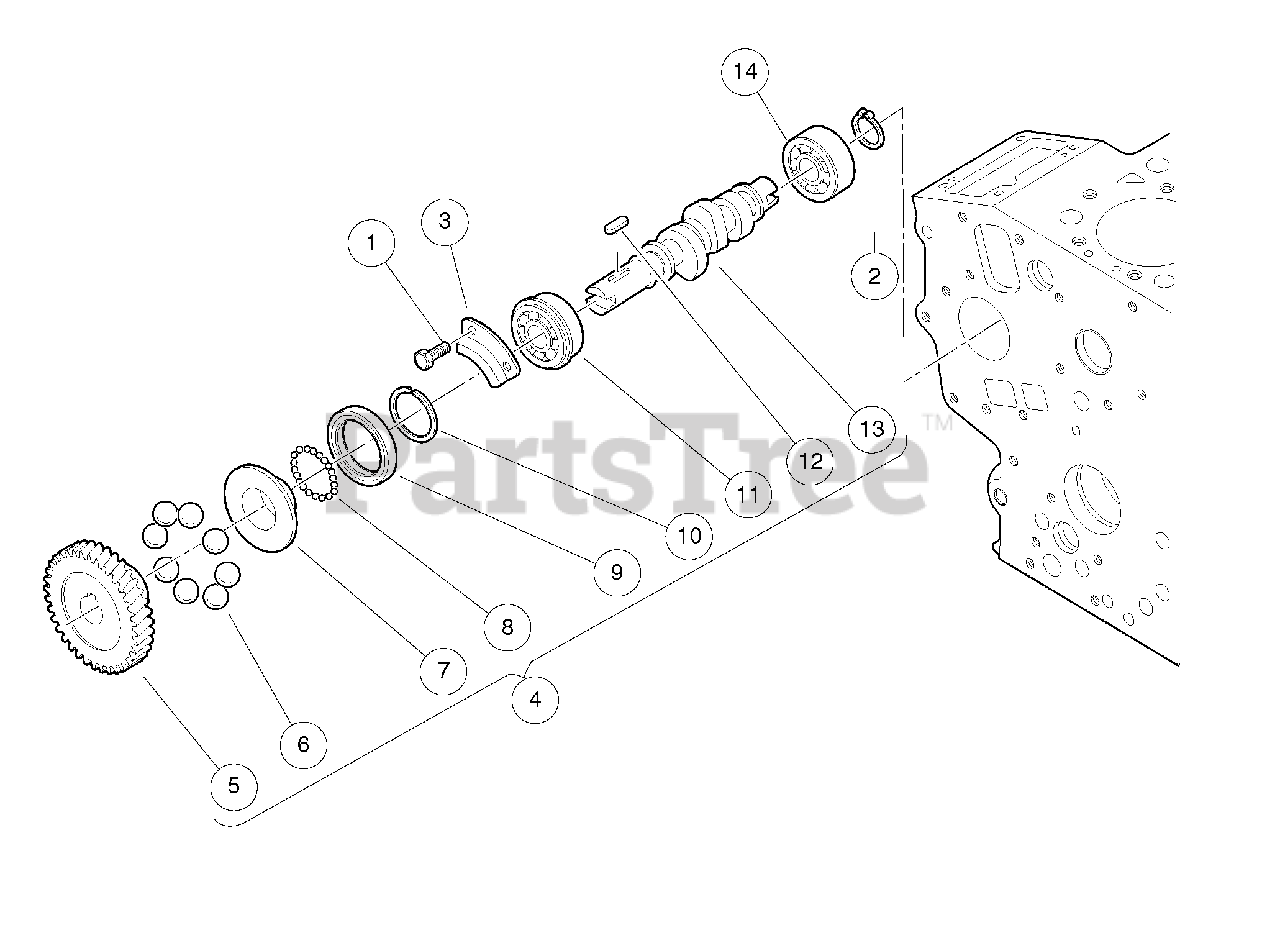

Shaft Parts Diagram

  • Title

1

Husqvarna 102604201

Bolt, D722, Cam End

$

$

Currently unavailable

2

Husqvarna 102604701

Circlip, External

$

$

Currently unavailable

3

Husqvarna 102604801

Stopper, Fuel, C/shaft

$

$

Currently unavailable

4

Husqvarna 102728401

Assy, Fuel Camshaft

Note: (includes items 5 through 13)

$

$

Currently unavailable

5

Husqvarna 102603601

Gear, Injection Pump

$

$

Currently unavailable

6

Husqvarna 102603701

Ball, Injection Pump

$

$

Currently unavailable

7

Husqvarna 102603801

Sleeve, Governor

$

$

Currently unavailable

8

Husqvarna 102603901

Ball, Governor

$

$

Currently unavailable

9

Husqvarna 102604001

Case, Governor Ball

$

$

Currently unavailable

10

Husqvarna 102604101

Circlip

$

$

Currently unavailable

11

Husqvarna 102604301

Bearing, Ball

$

$

Currently unavailable

12

Husqvarna 102604401

Key, Feather, Short Camshaft

$

$

Currently unavailable

13

Husqvarna 102604501

Camshaft, Fuel, Short

$

$

Currently unavailable

14

Husqvarna 102728501

Bearing, Ball

$

$

Currently unavailable
