HUV 4421 GXP - Husqvarna 4x4 Utility Vehicle (2009-01) Shrouds and Brackets Parts Diagram

4x4 Utility Vehicle

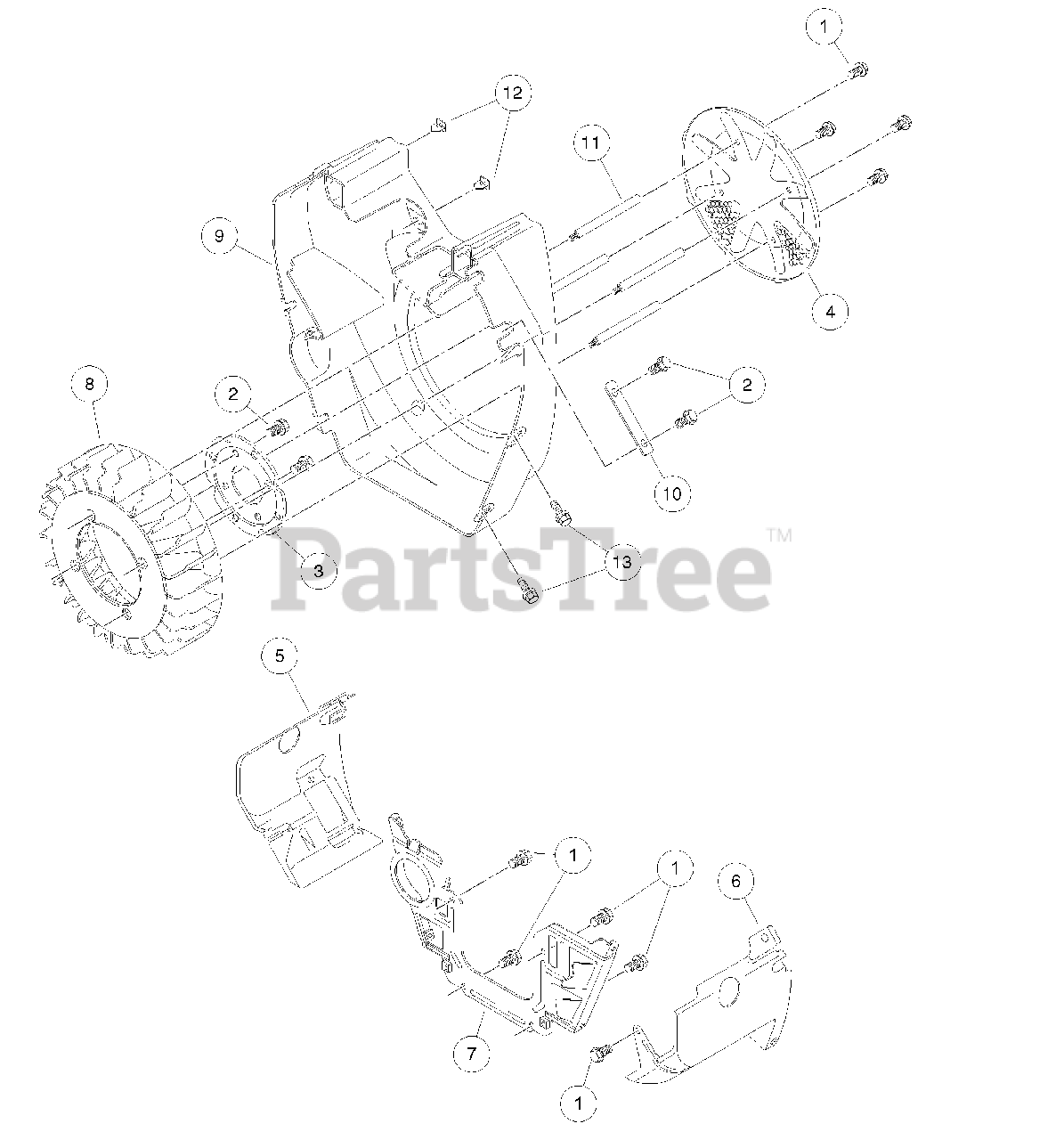

Shrouds and Brackets Parts Diagram

  • Title

1

Husqvarna 102992401

Bolt, Flg, M6 X 1.0 X 12

$

$

Currently unavailable

2

Husqvarna 102992501

Bolt, Flg, M6 X 1.0 X 16

$

$

Currently unavailable

3

Husqvarna 102998601

Plate, Housing, Fan, Fh

$

$

Currently unavailable

4

Husqvarna 102998701

Screen, Fan, Fh

$

$

Currently unavailable

5

Husqvarna 102999101

Shroud, Engine, Rh, Fh

$

$

Currently unavailable

6

Husqvarna 102999201

Shroud, Engine, Lh, Fh

$

$

Currently unavailable

7

Husqvarna 102999301

Shroud, Engine, Front, Fh

$

$

Currently unavailable

8

Husqvarna 102999501

Fan, Cooling, Fh

$

$

Currently unavailable

9

Husqvarna 102999601

Housing, Engine, Fh

$

$

Currently unavailable

10

Husqvarna 103000001

Washer, Housing, Fan, Fh

$

$

Currently unavailable

11

Husqvarna 103299301

Stud, Fan Screen, Fh

$

$

Currently unavailable

12

Husqvarna 103299401

Nut, Press In, Front Cover, Fh

$

$

Currently unavailable

13

Husqvarna 103300301

Bolt, Oil Pickup, Fh

$

$

Currently unavailable
