HUV 4421 GXP - Husqvarna 4x4 Utility Vehicle (2009-01) Tilt Bed, Hinge, and Latch Parts Diagram

4x4 Utility Vehicle

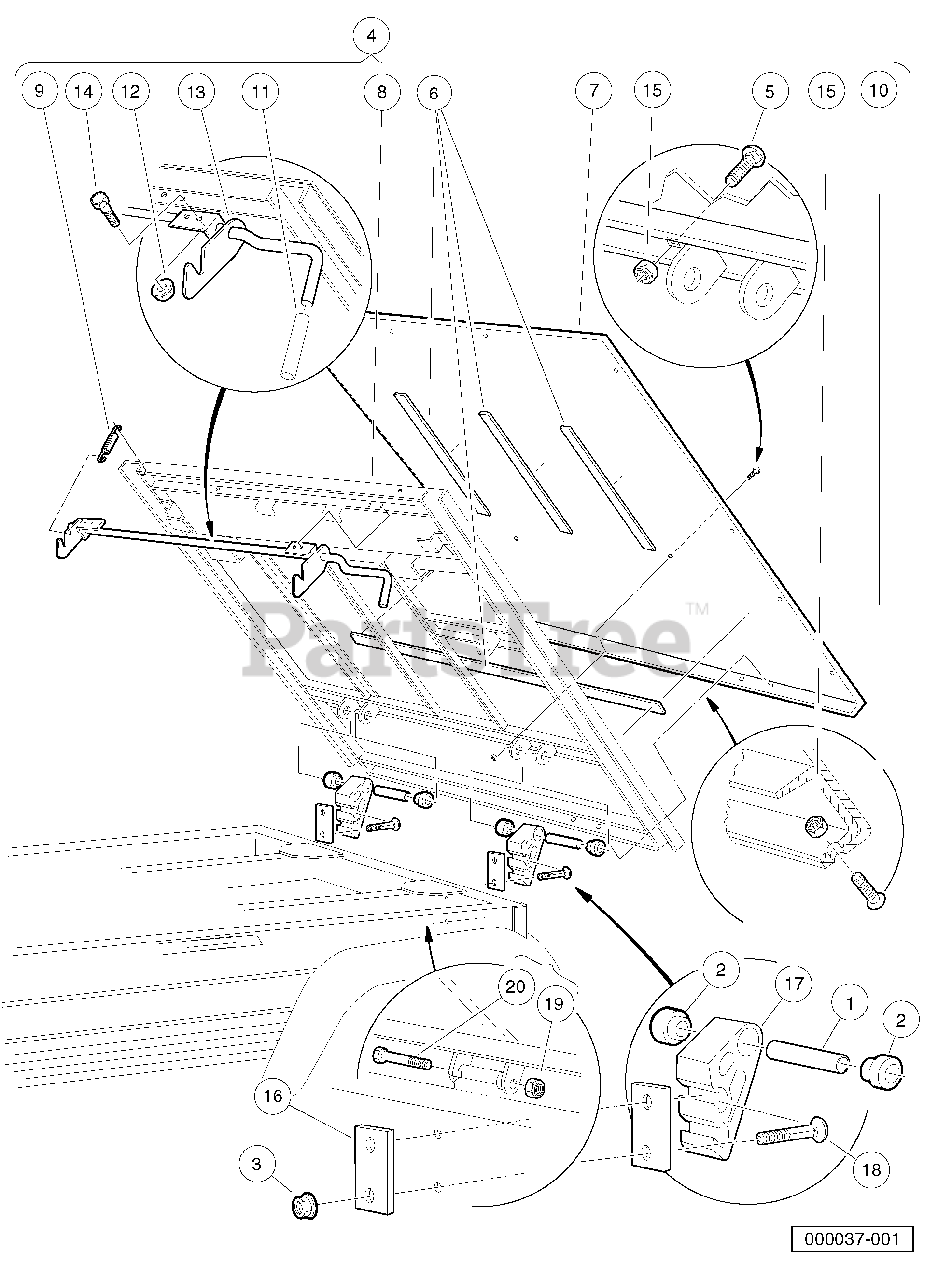

Tilt Bed, Hinge, and Latch Parts Diagram

  • Title

1

Husqvarna 1012303

Bushing, Steel

$

$

Currently unavailable

2

Husqvarna 1015583

Bushing, Urethane

$

$

Currently unavailable

3

Husqvarna 102065901

Locknut, 3/8-16 Flanged Dimple

$

$

Currently unavailable

4

Husqvarna 102171503

Tilt Bed Assembly

Note: (includes items 5 through 15)

$

$

Currently unavailable

5

Husqvarna 1010435

Bolt, Carriage, 5/16-18 X 1.00

$

$

Currently unavailable

6

Husqvarna 1014471

Tape, Vinyl Foam 1/8" x 3/4"

$

$

Currently unavailable

7

Husqvarna N/A

Plate, Floor Bed

$

$

Not available

8

Husqvarna N/A

Frame Assembly

$

$

Not available

9

Husqvarna 1015391

Extension, Spring Latch

$

$

Currently unavailable

10

Husqvarna 1015399

Screw, 5/16-18 X 0.88 Torx Truss-Head

$

$

Currently unavailable

11

Husqvarna 1015400

Grip, Tilt Latch Hand

$

$

Currently unavailable

12

Husqvarna 101835601

Locknut, 1/4-20 Hex Whiz

$

$

Currently unavailable

13

Husqvarna 102426901

Ltch Weld Asm Tlt Bd

$

$

Currently unavailable

14

Husqvarna 403

Screw, 1/4-20 X 0.625 Hex-Head Cap

$

$

Currently unavailable

15

Husqvarna 7473

Locknut, 5/16-18 Nylon Insert

$

$

Currently unavailable

16

Husqvarna 102614101

Plate, Back

$

$

Currently unavailable

17

Husqvarna 103538701

Extr, Brkt, Hinge, Bed

$

$

Currently unavailable

18

Husqvarna 103538901

3/8-16 X 3.5 Carr Blt Gr5 Zn

$

$

Currently unavailable

19

Husqvarna 8754

Locknut, 3/8-16 Hex

$

$

Currently unavailable

20

Husqvarna 8755

Screw, 3/8-16 X 3.375 Hex Cap

$

$

Currently unavailable
