HVGTK 180 AR - Husqvarna Garden Tractor (1990-03) Mower Lift Parts Diagram

Garden Tractor

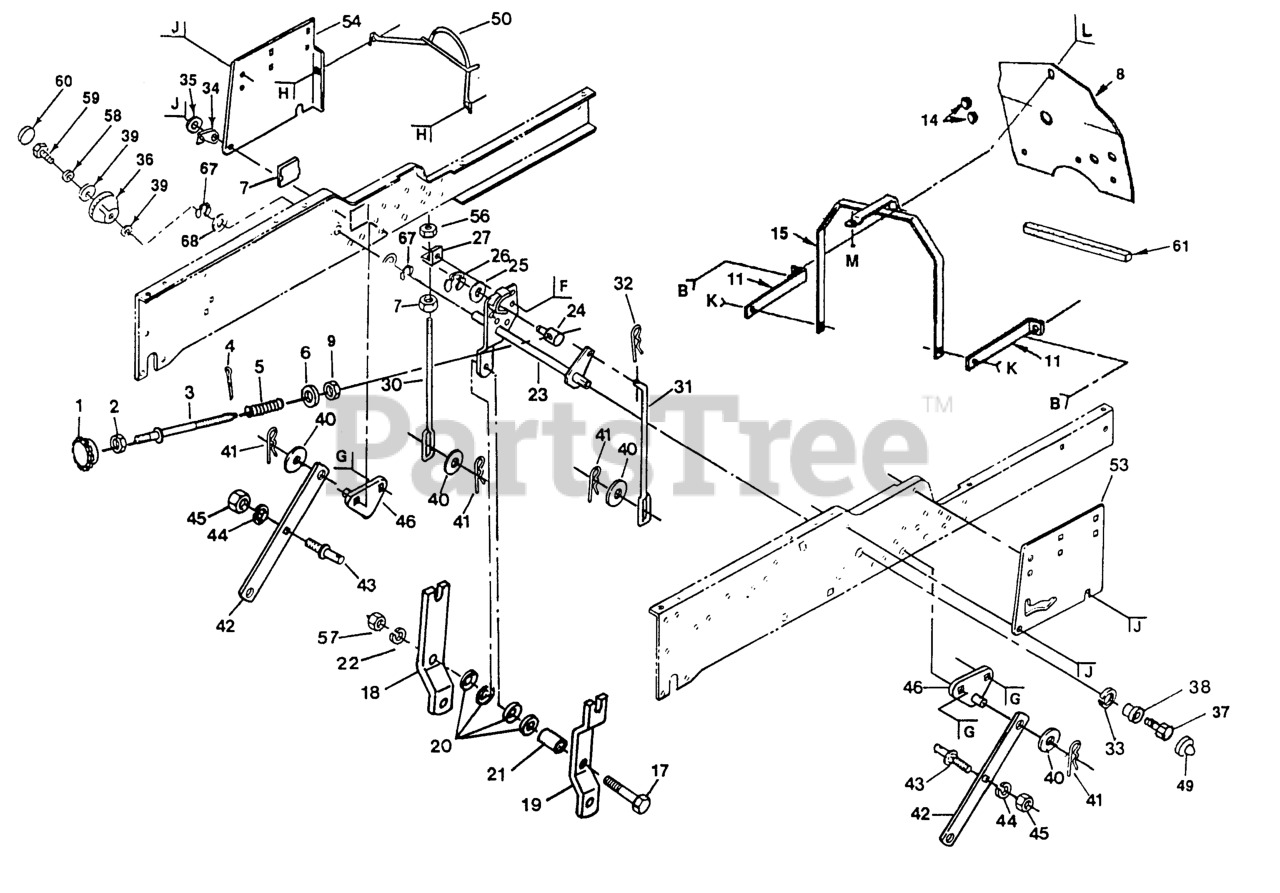

Mower Lift Parts Diagram

  • Title

1

Husqvarna 532121891

HDLE ADJ LIFT

$

$

Not available

2

Husqvarna 873350600

NUT
(Superseded to 873220600)

$5.99

$

In Stock, only 2 left!

0

3

Husqvarna 532110811

ROD ADJ. T

$

$

Not available

4

Husqvarna 876020308

COTTER PIN
(Superseded to 596917601)

$3.49

$

Usually ships in 3-10 days

0

5

Husqvarna 532124874

SPRING**
(Superseded to 532002876)

$3.49

$

Usually ships in 3-10 days

0

6

Husqvarna 819131016

WASHER

$3.49

$

In Stock, only 4 left!

0

7

Husqvarna 532121794

COVER ACCESS

$

$

Not available

8

Husqvarna 532122085

BASE SHIELD HEAT

$

$

Not available

9

Husqvarna 532110807

NUT T

$

$

Not available

11

Husqvarna 532110903

BRACKET T

$

$

Not available

14

Husqvarna 532110436

SNAP BUSHING T
(Superseded to 532009151)

$

$

Not available

15

Husqvarna 532106872

SUPPORT T

$

$

Not available

17

Husqvarna 874520628

Bolt, 3/8-16 x 1-3/4

$

$

Not available

18

Husqvarna 532005948

BRACKET T

$

$

Not available

19

Husqvarna 532005947

BRACKET T

$

$

Not available

20

Husqvarna 819172410

WASHER FLUT
(Superseded to 532067725)

$6.99

$

In Stock, Qty 7

0

21

Husqvarna 532005949

TUBE GT

$

$

Not available

22

Husqvarna 810040600

WASHER, LOCK 3/8
(Superseded to 539990118)

$3.99

$

In Stock, Qty 20+

0

23

Husqvarna 532124217

SHAFT ASS'Y LIFT

$

$

Not available

24

Husqvarna 532110810

TRUNION LT

$

$

Not available

25

Husqvarna 819151216

Washer, 15/32 x 3/4 x 16 Ga.

$

$

Not available

26

Husqvarna 812000037

Klip Ring

$

$

Not available

27

Husqvarna 532007594

BRACKET T

$

$

Not available

30

Husqvarna 532007596

LINK-LIFT MOWER T

$

$

Not available

31

Husqvarna 532105503

LIFT LINK RH GT

$

$

Not available

32

Husqvarna 532124670

RETAINER-SPRNG RB

$

$

Not available

33

Husqvarna 810040600

WASHER, LOCK 3/8
(Superseded to 539990118)

$3.99

$

In Stock, Qty 20+

0

34

Husqvarna 532124763

POINTER HGT INDAT
(Superseded to 532123933)

$

$

Not available

35

Husqvarna 532120529

WASHER T

$

$

Not available

36

Husqvarna 532123934

HEIGHT INDICATOR

$

$

Not available

37

Husqvarna 874760616

BOLT
(Superseded to 596564401)

$4.99

$

In Stock, Qty 15

0

38

Husqvarna 532105624

LIFT HUB-LEVER

$

$

Not available

39

Husqvarna 819112410

WASHER

$6.99

$

Usually ships in 3-10 days

0

40

Husqvarna 819171616

WASHER
(Superseded to 596040101)

$3.49

$

In Stock, Qty 14

0

41

Husqvarna 532009135

SPRING H

$

$

Not available

42

Husqvarna 532105429

SUSPENSION ARM GT

$

$

Not available

43

Husqvarna 532105413

PIVOT STUD GT

$

$

Not available

44

Husqvarna 810040800

LOCKWASHER

$9.49

$

Usually ships in 3-10 days

0

45

Husqvarna 873220800

NUT 1/2 X 13
(Superseded to 596433401)

$3.49

$

In Stock, only 2 left!

0

46

Husqvarna 532105501

SUSP BRACKET GT

$

$

Not available

49

Husqvarna 532109412

CAP T

$

$

Not available

50

Husqvarna 532126843

Guard, Belt, Engine

$

$

Currently unavailable

53

Husqvarna 532121043

SIDE PANEL T

$

$

Not available

54

Husqvarna 532121044

SIDE PANEL T

$

$

Not available

56

Husqvarna 873800600

NUT
(Superseded to 873680600)

$

$

Not available

57

Husqvarna 873220600

NUT.HEX.3/8-16UNC

$5.99

$

In Stock, only 2 left!

0

58

Husqvarna 810040500

WASHER.LOCK.HVY.HLCL.SPR.5/16
(Superseded to 596238801)

$3.49

$

In Stock, Qty 20+

0

59

Husqvarna 874780516

BOLT.FIN.HEX.5/16-18UNC X 1.00
(Superseded to 596580801)

$3.49

$

In Stock, Qty 19

0

60

Husqvarna 532123935

PLUG,HOLE

$

$

Not available

61

Husqvarna 532109458

FOAM STRIP T

$

$

Not available

67

Husqvarna 812000022

E-RING

$3.49

$

In Stock, only 2 left!

0

68

Husqvarna 819292016

Washer 29/32 x 1 - 1/4 x 16 Ga.

$9.49

$

Usually ships in 3-10 days

0
