HVGTK 180 AR - Husqvarna Garden Tractor (1990-03) Mower Lift Parts Diagram

Garden Tractor

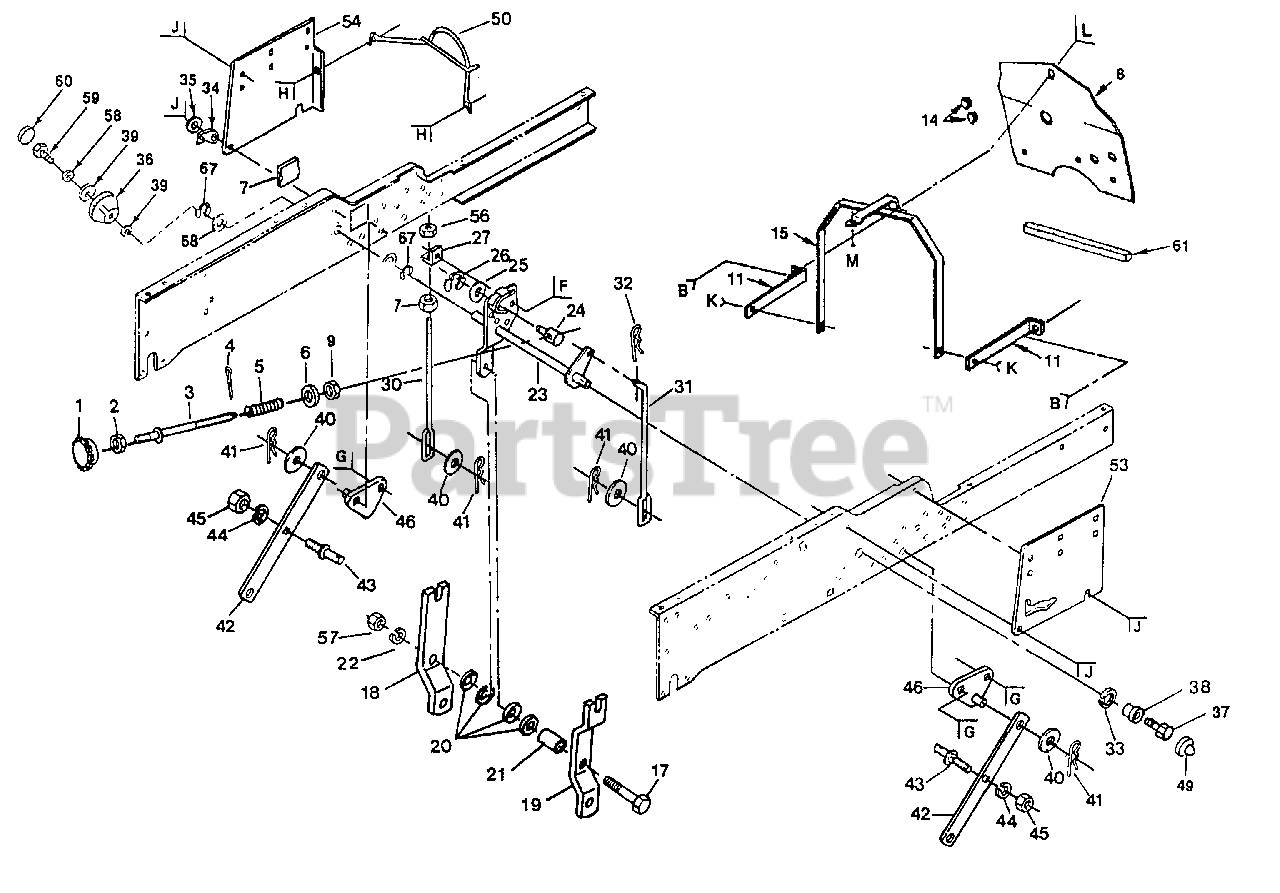

Mower Lift Parts Diagram

  • Title

1

Husqvarna 532121891

Handle, Adjust, Lift

$

$

Not available

2

Husqvarna 873350600

Nut, Hex Jam, 3/8-16
(Superseded to 873220600)

$6.49

$

In Stock, only 3 left!

0

3

Husqvarna 532110811

Rod, Adjust, Lift

$

$

Not available

4

Husqvarna 876020308

Pin, Cotter 3/32 x 3/4
(Superseded to 532003145)

$

$

Not available

5

Husqvarna 532124874

Spring
(Superseded to 532002876)

$7.49

$

Usually ships in 3-10 days

0

6

Husqvarna 819131016

Washer 13/32 x 5/8 x 16 Ga.

$6.49

$

In Stock, only 1 left!

0

7

Husqvarna 532121794

Cover, Access

$

$

Not available

8

Husqvarna 532122085

Shield, Heat, Rear

$

$

Not available

9

Husqvarna 532110807

Nut, Special

$

$

Not available

11

Husqvarna 532110903

Brace, Heat Shield

$

$

Not available

14

Husqvarna 532110436

Grommet
(Superseded to 532009151)

$

$

Not available

15

Husqvarna 532106872

Support Asm. Dash

$

$

Not available

17

Husqvarna 874520628

Bolt, 3/8-16 x 1-3/4

$3.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532005948

Brkt. Lift LH

$5.99

$

Usually ships in 3-10 days

0

19

Husqvarna 532005947

Brkt. Lift RH

$5.99

$

Usually ships in 3-10 days

0

20

Husqvarna 819172410

Washer, 17/32 x 1-1/2 x 10 Ga.
(Superseded to 532067725)

$7.49

$

In Stock, Qty 20+

0

21

Husqvarna 532005949

Tube .384 x 1/2 x 1-1/4

$

$

Not available

22

Husqvarna 810040600

Lockwasher, 3/8
(Superseded to 596238701)

$3.99

$

In Stock, Qty 20+

0

23

Husqvarna 532124217

Shaft, Lift

$56.99

$

Usually ships in 3-10 days

0

24

Husqvarna 532110810

Trunnion, Stop Depth

$21.99

$

Usually ships in 3-10 days

0

25

Husqvarna 819151216

Washer, 15/32 x 3/4 x 16 Ga.

$

$

Not available

26

Husqvarna 812000037

Klip Ring

$6.49

$

Usually ships in 3-10 days

0

27

Husqvarna 532007594

Brkt. Lift LH

$

$

Not available

30

Husqvarna 532007596

Link Lift LH

$

$

Not available

31

Husqvarna 532105503

Link Lift RH

$

$

Not available

32

Husqvarna 532124670

Retainer, Spring

$

$

Not available

33

Husqvarna 810040600

Washer, Nylock
(Superseded to 596238701)

$3.99

$

In Stock, Qty 20+

0

34

Husqvarna 532124763

Pointer, Height Indicator
(Superseded to 532123933)

$3.99

$

Usually ships in 3-10 days

0

35

Husqvarna 532120529

Washer, Nylon

$2.99

$

Usually ships in 3-10 days

0

36

Husqvarna 532123934

Scale, Height Indicator

$

$

Not available

37

Husqvarna 874760616

Bolt, Hex 3/8-16 x 1
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

38

Husqvarna 532105624

Hub, Lift Shaft

$12.99

$

Usually ships in 3-10 days

0

39

Husqvarna 819112410

Washer 11/32 x 1 - 1/2 x 10 Ga.

$6.49

$

Usually ships in 3-10 days

0

40

Husqvarna 819171616

Washer 17/32 x 1 x 16 Ga.
(Superseded to 734117801)

$

$

Not available

41

Husqvarna 532009135

Retainer, Spring

$4.99

$

Usually ships in 3-10 days

0

42

Husqvarna 532105429

Arm Suspension

$

$

Not available

43

Husqvarna 532105413

Stud, Pivot Center

$

$

Not available

44

Husqvarna 810040800

Washer, Lock 1/2

$6.49

$

Usually ships in 3-10 days

0

45

Husqvarna 873220800

Nut, Hex, 1/2-13
(Superseded to 873350800)

$

$

Not available

46

Husqvarna 532105501

Brkt. Suspension, Mower

$

$

Not available

49

Husqvarna 532109412

Cap, Spring

$2.99

$

Usually ships in 3-10 days

0

50

Husqvarna 532126843

Guard, Belt, Engine

$

$

Currently unavailable

53

Husqvarna 532121043

Panel, Side RH

$

$

Not available

54

Husqvarna 532121044

Panel, Side LH

$

$

Not available

56

Husqvarna 873800600

Nut, Lock, 3/8-16
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

57

Husqvarna 873220600

Nut, Hex 3/8-16

$6.49

$

In Stock, only 3 left!

0

58

Husqvarna 810040500

Washer, Lock Hvy. Helical Spring
(Superseded to 596238801)

$3.99

$

In Stock, Qty 18

0

59

Husqvarna 874780516

Bolt, Hex Fin 5/16 - 18 x 1

$6.49

$

Usually ships in 3-10 days

0

60

Husqvarna 532123935

Plug, Hole

$

$

Not available

61

Husqvarna 532109458

Strip, Foam

$

$

Not available

67

Husqvarna 812000022

E-Ring

$6.99

$

Usually ships in 3-10 days

0

68

Husqvarna 819292016

Washer 29/32 x 1 - 1/4 x 16 Ga.

$6.49

$

Usually ships in 3-10 days

0
